Ball End Router Bits

45964 Carbide Tipped Ball End 3/8 Radius x 11/16 Dia x 1/2 x 1/2 Inch Shank

#45964

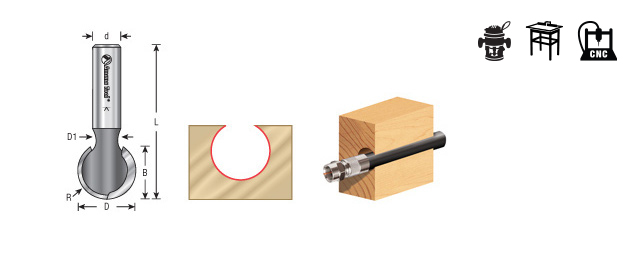

Specification
Diameter (D) 3/4
D1 5/16
Radius (R) 3/8
Cutting Height (B) 11/16
Shank (d) 1/2
Overall Length (L) 2-1/2
Flutes 2

Cut channels for pipes or cables using the ball end bit. The profile requires the cut to be made in a single pass. To reduce stress on the bit, cut an initial groove using a straight bit matching the D1 dimension of the ball end bit.

Note: Profile is useful as a ‘conduit’ for cables, pipes, etc.

Vectric Logo

Vectric compatible tool file for 45964 available for download, click here.
