Solid Carbide Spiral Plunge Up-Cut CNC Router Bits

46102 Solid Carbide Spiral Plunge 1/4 Dia x 3/4 x 1/4 Inch Shank Up-Cut

#46102

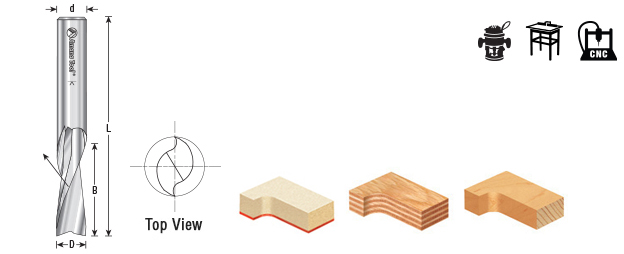

Specification
Direction Up-Cut
(D) Diameter 1/4
(B) Cutting Height 3/4
(d) Shank 1/4
Overall Length (L) 2-1/2
Flutes 2

Spiral-flute bits combine a shearing action in cutting with an augering action in chip clearance. The shearing action yields an especially clean accurate cut while the augering action clears chips from the cut.

The ‘Up-Cut’ shears from the bottom up pulling chips from the bottom up thus allowing deeper penetration with less stress on the tool. An excellent choice for mortising.

Special unique carbide grade increased clearance geometry and razor-sharp cutting edges with polished flutes provide a superior finish and longer tool life especially in abrasive materials. Great for production settings and excellent for creating grooves and dado cuts in particleboard, plywood and laminate. Primarily used on CNC machines and other automatic routers. Can be used with handheld and table-mounted portable routers.

Fusion Logo

Vectric and Fusion 360 compatible tool files for 46102 available for download, click here.

46102 DXF

File Size : 1.67 MB
Create account or Login to download

46102 PDF

File Size : 129.19 KB
Create account or Login to download

Solid Carbide Spiral Flute Plunge Speed and Feed Chart

Download PDF

Product Questions

Do you guys have a list for recommended speeds and feeds? The PDF's does not show the speeds for the 1/4" and more data would be helpful.
Question by: Justin Courtney on Apr 5, 2016, 5:09 PM
Thank you for the question. Please call our technical department at 800-445-0077, as this question has some follow up questions before we can provide the correct answer.
Answer by: admin admin on Jun 15, 2016, 7:05 AM

Question on 46102 Solid Carbide Spiral Plunge 1/4 Dia x 3/4 x 1/4 Inch Shank Up-Cut
