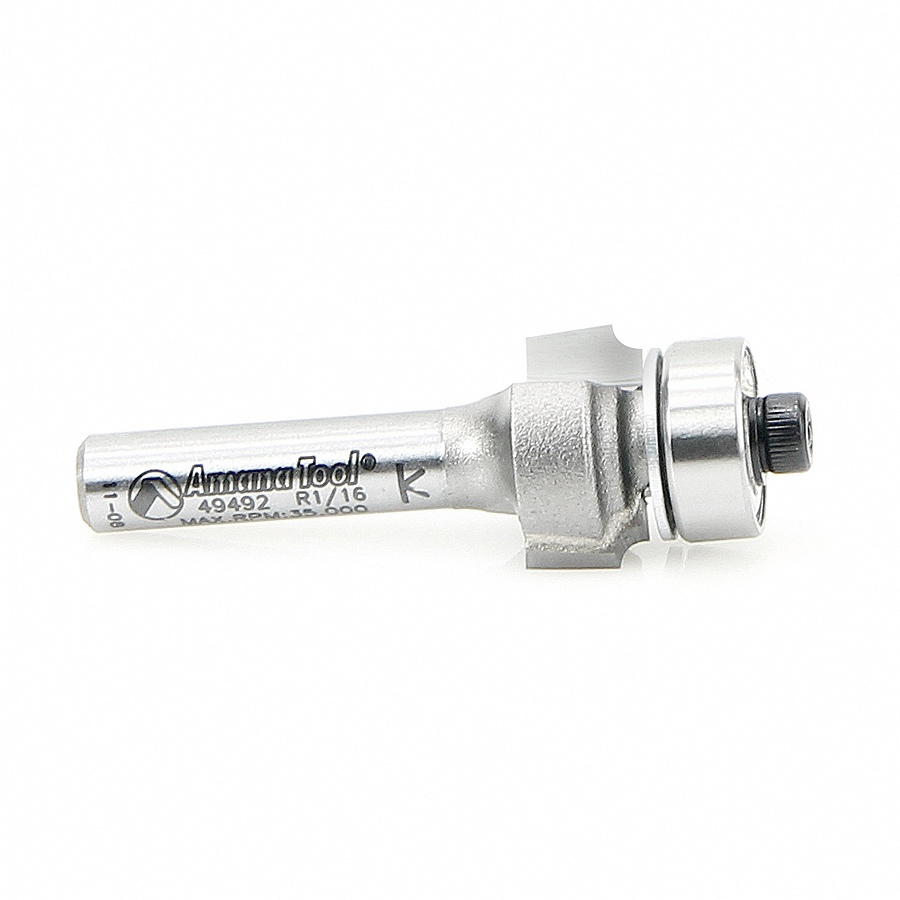

49492 Carbide Tipped Corner Round 1/16 Radius x 5/8 Dia x 5/16 x 1/4 Inch Shank

49492 Carbide Tipped Corner Round 1/16 Radius x 5/8 Dia x 5/16 x 1/4 Inch Shank

SKU# 49492

Corner Rounding Router Bits
The basic edge-forming bit, the corner-rounding bit rounds an edge to a given radius. The tool is shouldered to cut a fillet. The cut can be used to ease edges, as a simple profile, or as a part of a complex one. Also known as roundover, rounding over and quarter-round. If a smaller pilot bearing is used, a second shoulder can be produced, in effect making the bit a beading bit.
Specifications

Tool No. 49492

Diameter (D) 5/8
Radius (R) 1/16
Cutting Height (B) 5/16
Shank (d) 1/4
Overall Length (L) 1-3/4
Replacement Bearing 47706
Flutes 2

View 1:1 Profile

Product Q&A

Questions on 49492 Carbide Tipped Corner Round 1/16 Radius x 5/8 Dia x 5/16 x 1/4 Inch Shank

No questions asked yet

Please Sign up or Login to ask a question
Replacement Parts
Tool No.Bearing(s)ScrewDust ShieldFlat Washer
49492 47706 67096 67098 67202

Please or

View other sizes below

Replacement Bearing Flutes Cutting Height (B) Diameter (D) Shank (d) Overall Length (L) Radius (R) Tool No. Add to Wishlist
47706 2 5/16 5/8 1/2 2-1/4 1/16 49494
47706 2 3/8 3/4 1/4 2 1/8 49496
47706 2 3/8 3/4 1/2 2-5/16 1/8 49498
47706 2 3/8 3/4 1/4 2 5/32 49499
47706 2 3/8 3/4 1/2 2-1/4 5/32 49501
47706 2 1/2 7/8 1/4 2 3/16 49500
47706 2 1/2 7/8 1/2 2-7/16 3/16 49502
47706 2 1/2 1 1/4 2 1/4 49504
47706 2 1/2 1 1/2 2-7/16 1/4 49506
47706 2 1/2 1-1/8 1/4 2-1/16 5/16 49508
47706 2 1/2 1-1/8 1/2 2-7/16 5/16 49510
47706 2 5/8 1-1/4 1/4 2-3/16 3/8 49512
47706 2 5/8 1-1/4 1/2 2-9/16 3/8 49514
47706 2 5/8 1-3/8 1/2 2-9/16 7/16 49515
47706 2 3/4 1-1/2 1/4 2-1/4 1/2 49516
47706 2 3/4 1-1/2 1/2 2-5/8 1/2 49518
47706 2 3/4 1-5/8 1/2 2-5/8 9/16 49517
47706 2 7/8 1-3/4 1/2 2-3/4 5/8 49519
47706 2 1 2 1/2 2-7/8 3/4 49520
47706 2 1-1/4 2-1/4 1/2 3-1/16 7/8 49521
47706 2 1-1/4 2-1/2 1/2 3-3/16 1 49522
47706 2 1-3/8 2-3/4 1/2 3-1/4 1-1/8 49523
47706 2 1-1/2 3 1/2 3-1/4 1-1/4 49524
47706 2 1-3/4 3-1/2 1/2 3-5/8 1-1/2 49526
