Corner Rounding Router Bits

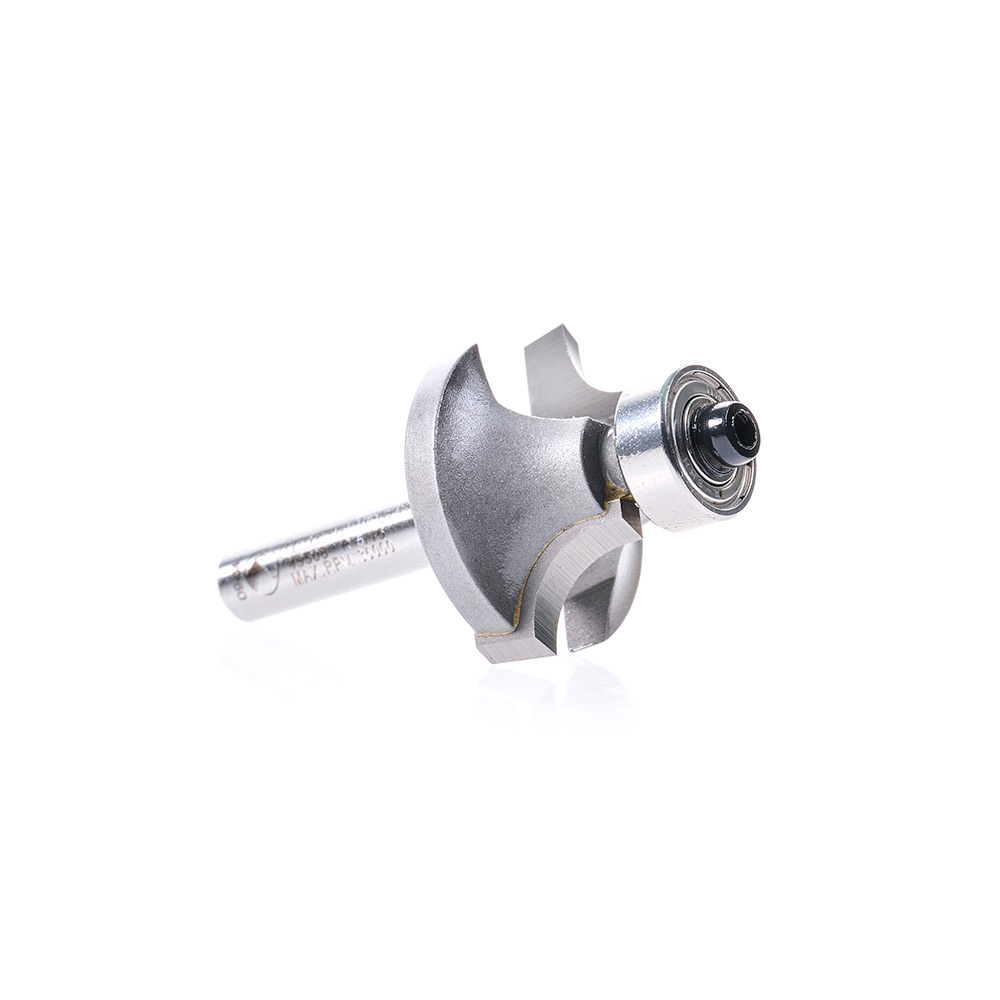

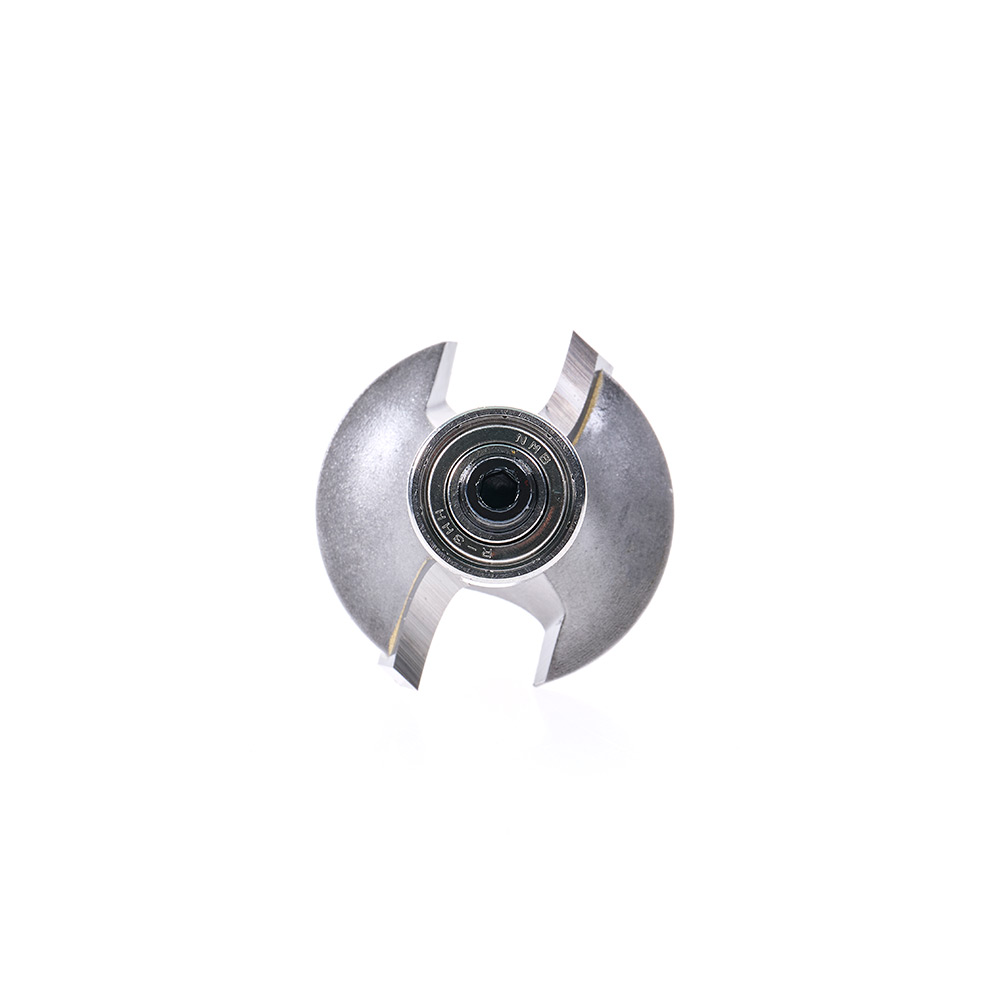

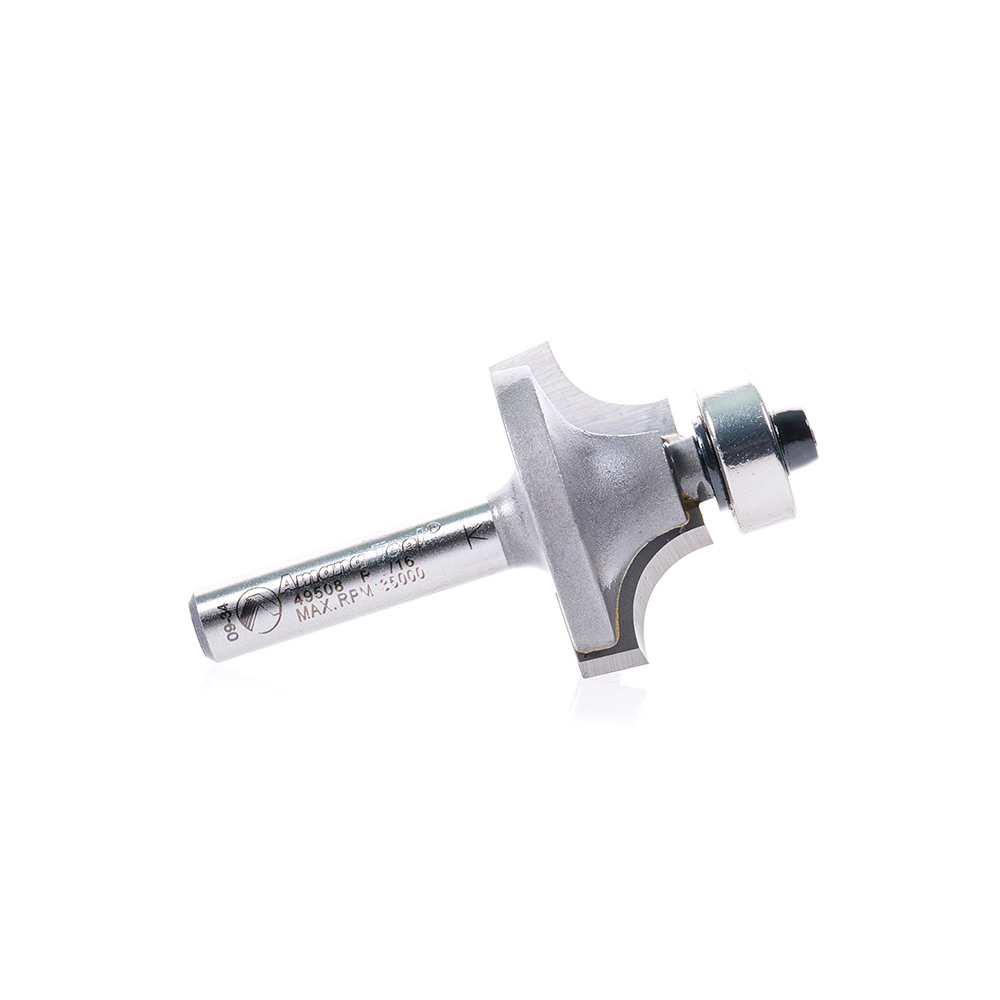

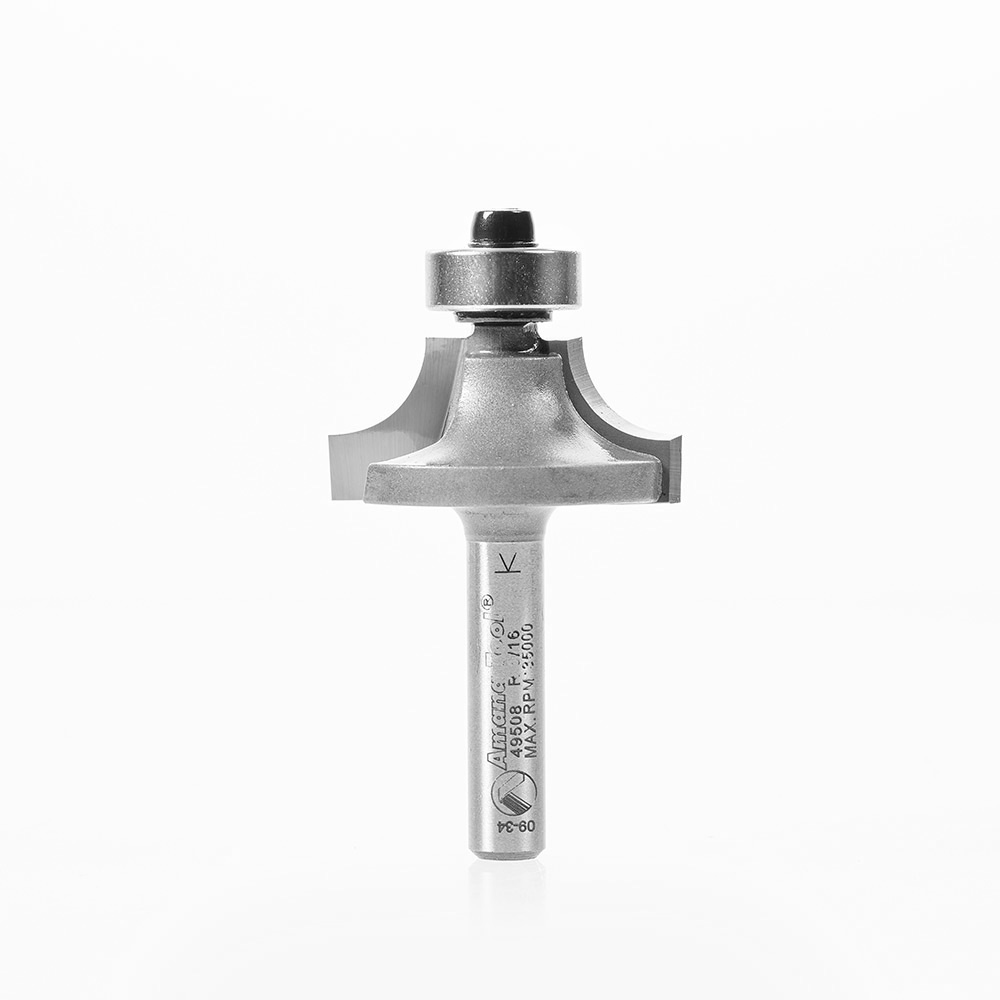

49508 Carbide Tipped Corner Round 5/16 Radius x 1-1/8 Dia x 1/2 x 1/4 Inch Shank

#49508

Specification
Diameter (D) 1-1/8
D1 1/2
Radius (R) 5/16
Cutting Height (B) 1/2
Shank (d) 1/4
Overall Length (L) 2-1/16
Replacement Bearing 47706
Flutes 2

The basic edge-forming bit, the corner-rounding bit rounds an edge to a given radius. The tool is shouldered to cut a fillet. The cut can be used to ease edges, as a simple profile, or as a part of a complex one. Also known as roundover, rounding over and quarter-round. If a smaller pilot bearing is used, a second shoulder can be produced, in effect making the bit a beading bit.

Excellent for cutting:

  • Acrylic
  • Laminate
  • MDF/HDF
  • Melamine
  • Wood
  • Plywood
Tool No.Bearing(s)ScrewDust ShieldFlat Washer
