Beading Router Bits

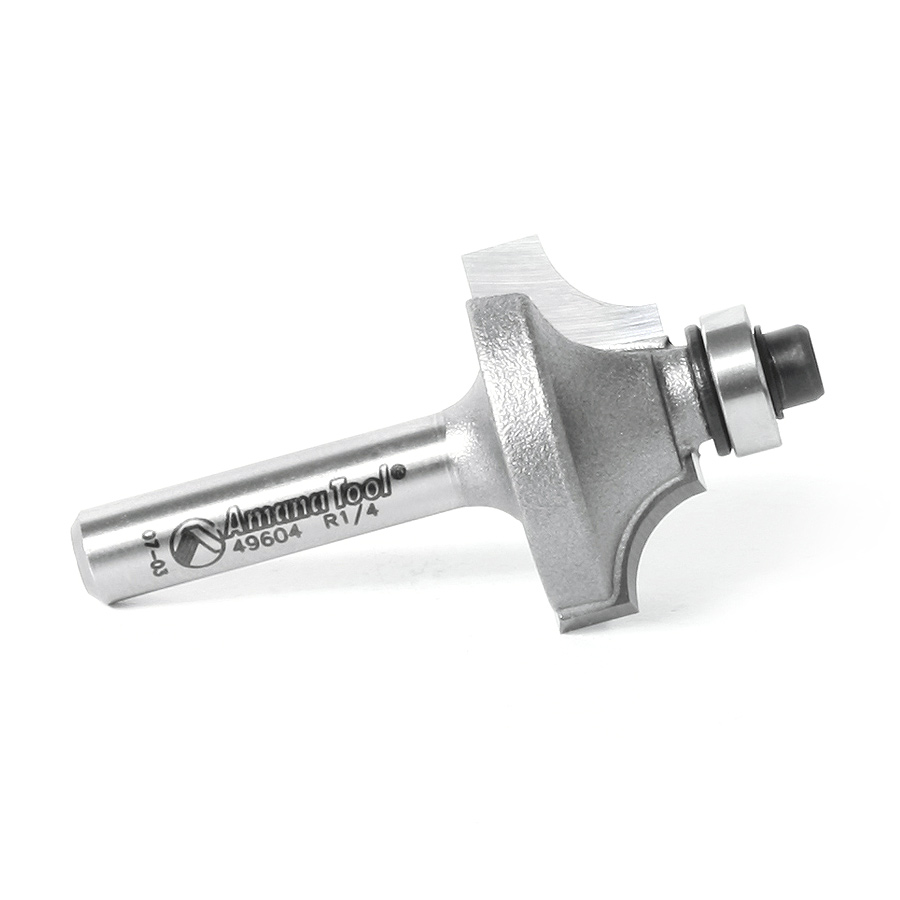

49604 Carbide Tipped Beading 1/4 Radius x 1 Inch Dia x 1/2 x 1/4 Shank

#49604

Specification
Diameter (D) 1
D1 3/8
Radius (R) 1/4
Cutting Height (B) 1/2
Shank (d) 1/4
Overall Length (L) 2
Replacement Bearing 47702
Flutes 2

Cut a quarter-round shape bounded by fillets, known as a bead, in one pass by this bit. The width of one fillet is set by the pilot bearing size, while the other is controlled by the depth of cut. A beading bit can be transformed into a corner rounding bit by changing the bearing (& vice versa).

Tool No.Bearing(s)ScrewDust ShieldFlat Washer
