Carbide Tipped Adjustable ACM Scoring Set
508400 Carbide Tipped Adjustable ACM Scoring Set 8 Inch Dia x 2x20T, 18 Deg, 5/8 Bore
#508400
| (D) Diameter | 8 |
|---|---|
| Teeth | 2x20 |
| (d) Bore | 5/8 |
| Tooth Grind | ACM |
| Hook Angle | 18° |
| Kerf (B) | 10.2-11.2mm |
| Machine | Table Saw |

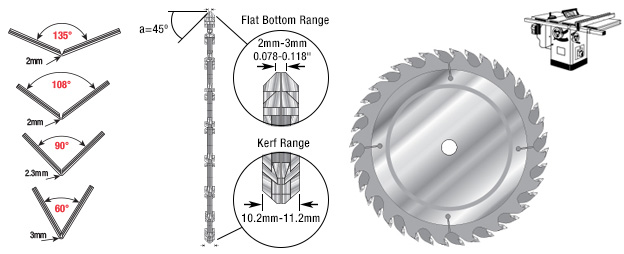

| (W) Flat Bottom Range | 2.0-3.0mm / 0.078-0.118 |
| (a°) Angle | 45° |
| B1 | 0.161" |
Adjustable Scoring Set designed for cutting angled cuts with flat bottoms in aluminum/non-ferrous/plastics composite sandwich materials such as:
- Aluminum, Clay, Zinc & Wood Composite Panels
- Aluminum Composite Materials (ACM)
- Aluminum Composite Panel (ACP)*
- ALPOLIC® Copper Composite Material (CCM)
- Alucobond®
- Alupanel®
- Dibond®
- Durabond**
- e-panel™
- Etalbond®
- Titanium Composite Material (TCM)
- Trespa®

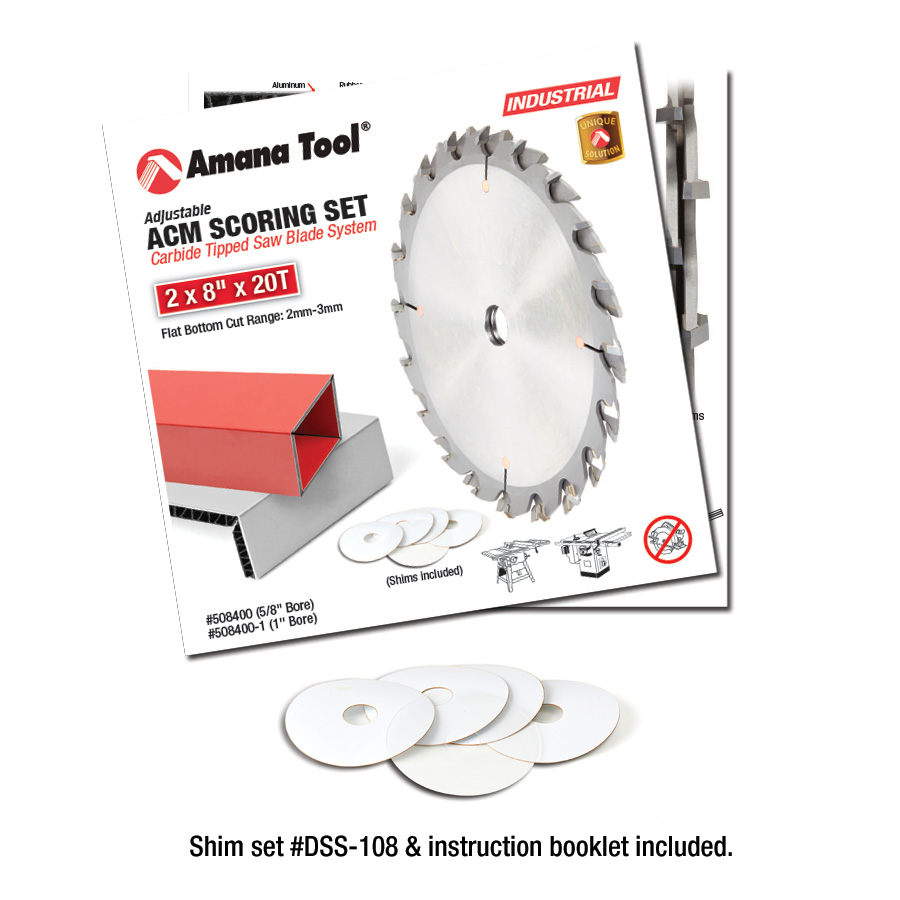

This set contains two carbide tipped saw blades and a shim set. This unique system can be widely used for scoring many cladding materials (wall coverings) such as Alucobond®, Alupanel®, Dibond®, ALPOLIC® CCM, Trespa®, Durabond and more. The materials are used on facades and interior wall surfaces that can be found in office buildings, hospitals, convention centers, airports and hotels, along with exterior signage.
*ACP is a type of ACM flat panel that consists of two thin aluminum sheets bonded to a non-aluminum core. ACPs are frequently used for external cladding or facades of buildings, insulation, and signage. **Durabond is a polyethylene core with 0.3mm colored aluminum sheet on either side, pre-finished requiring no decoration.

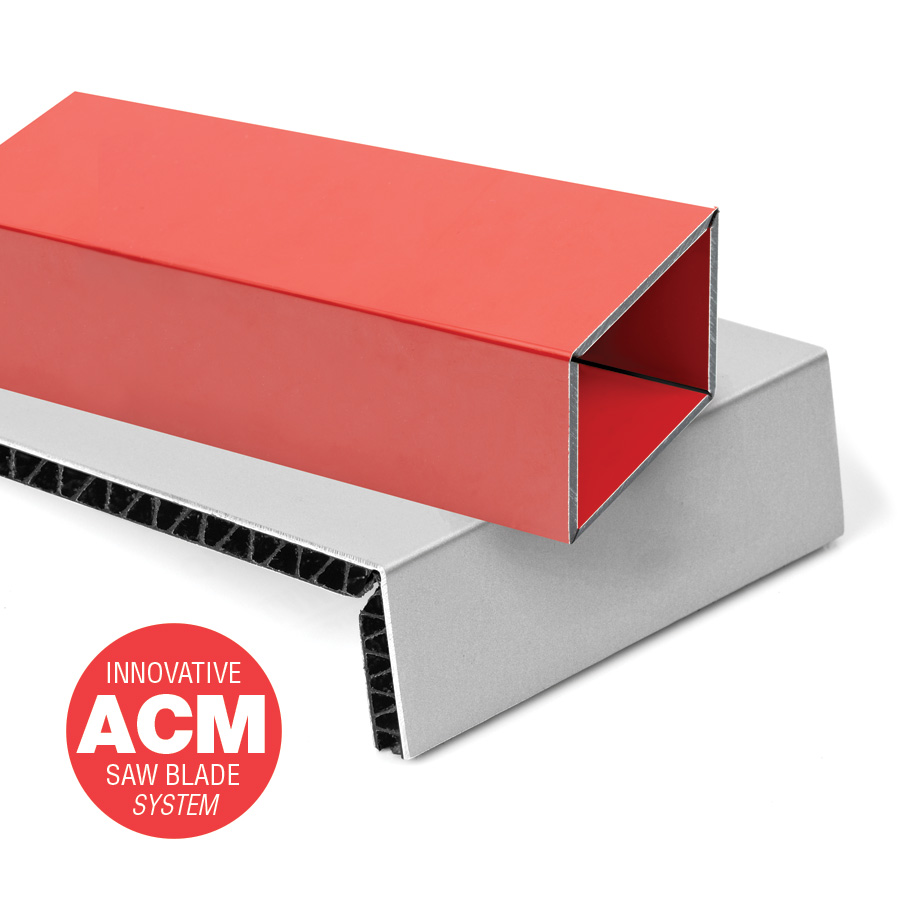

Cutting V-shaped grooves with flat bottoms, whereby the aluminum cover and a part of the core is removed, allows for folding the remaining material by hand.
Warning: This set requires a custom zero clearance throat plate.
Warning: Not to be used with portable saws.
