Non-Ferrous Metal Cutting Saw Blades for Thin Aluminum

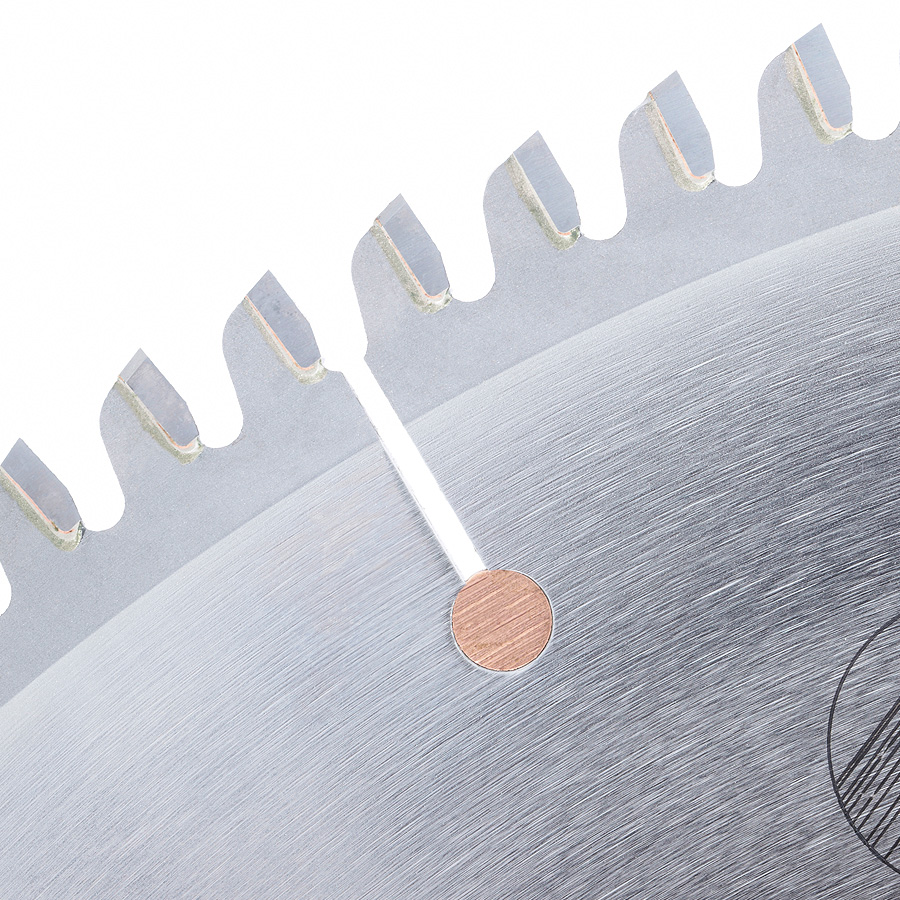

514108 Carbide Tipped Aluminum and Non-Ferrous Metals 14 Inch Dia x 108T TCG, -6 Deg, 1 Inch Bore

#514108

Specification
(D) Diameter 14 (350mm)
Teeth 108
(d) Bore 1
Tooth Grind TCG
Hook Angle -6°
Kerf (B) .126 (3.2mm)
Plate (C) .102 (2.6mm)

Thanks to its special carbide formulation and blade geometry, this is the ideal blade for cutting relatively thin-walled aluminum and non-ferrous extrusions and frames. The negative hook angle (-6°), triple-chip grind and thick plate combine to produce a superior finish. The blade can also be used to cut other "difficult" materials such as plastic, PVC tubing, fiberglass and ACM (Aluminum Composite Material).

Warning: Never attempt to cut ferrous metals with these blades.

Clamp down the workpiece.

For optimal results and extended saw blade sharpness use blade wax, mist lubricant system or air cooling.

Saw Blade Safety Guidelines
