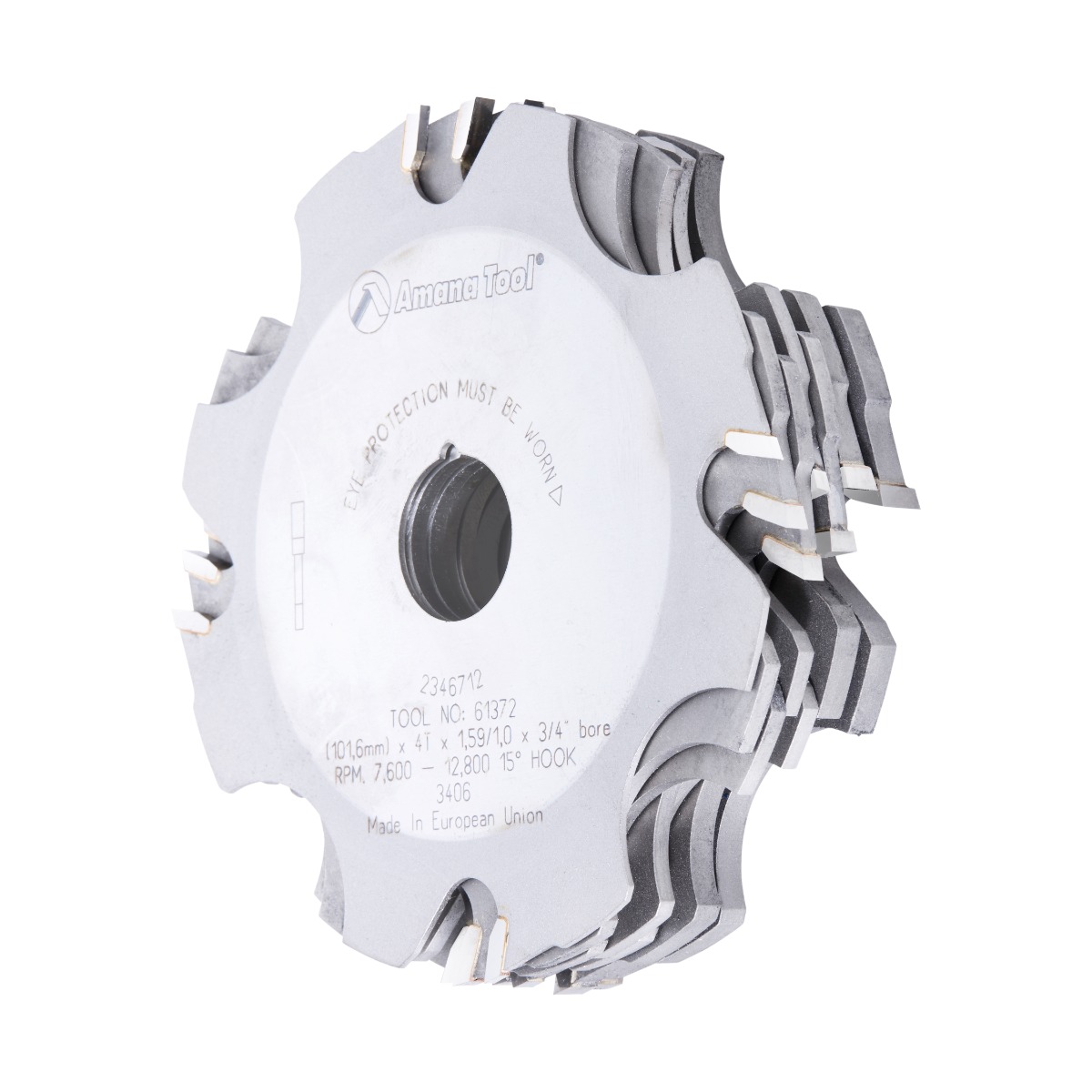

Prestige® Mighty Adjustable Super-Fine Dado / Groover for Shaper Machines
61370 Prestige® Carbide Tipped Super Fine Dado/Groover 4 Dia x ATB Grind x 4 Teeth x -10 Deg Hook Angle x 1/4 to 1 Kerf x 3/4 Bore for Shaper Machines
#61370

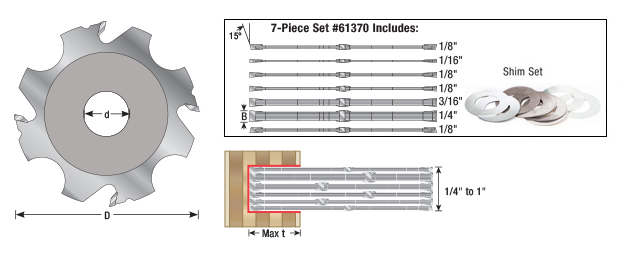

| (D) Diameter | 4 |
|---|---|
| (d) Bore | 3/4 |
| (a°) Angle | -10° |
| ATB Angle | 15° |
| Groovers | (5) 1/16, 1/8, 1/8, 3/16, 1/4 |
| Kerf Range | 1/4 to 1 |
| Max. t | 1-1/4 |
| Teeth | 4 |

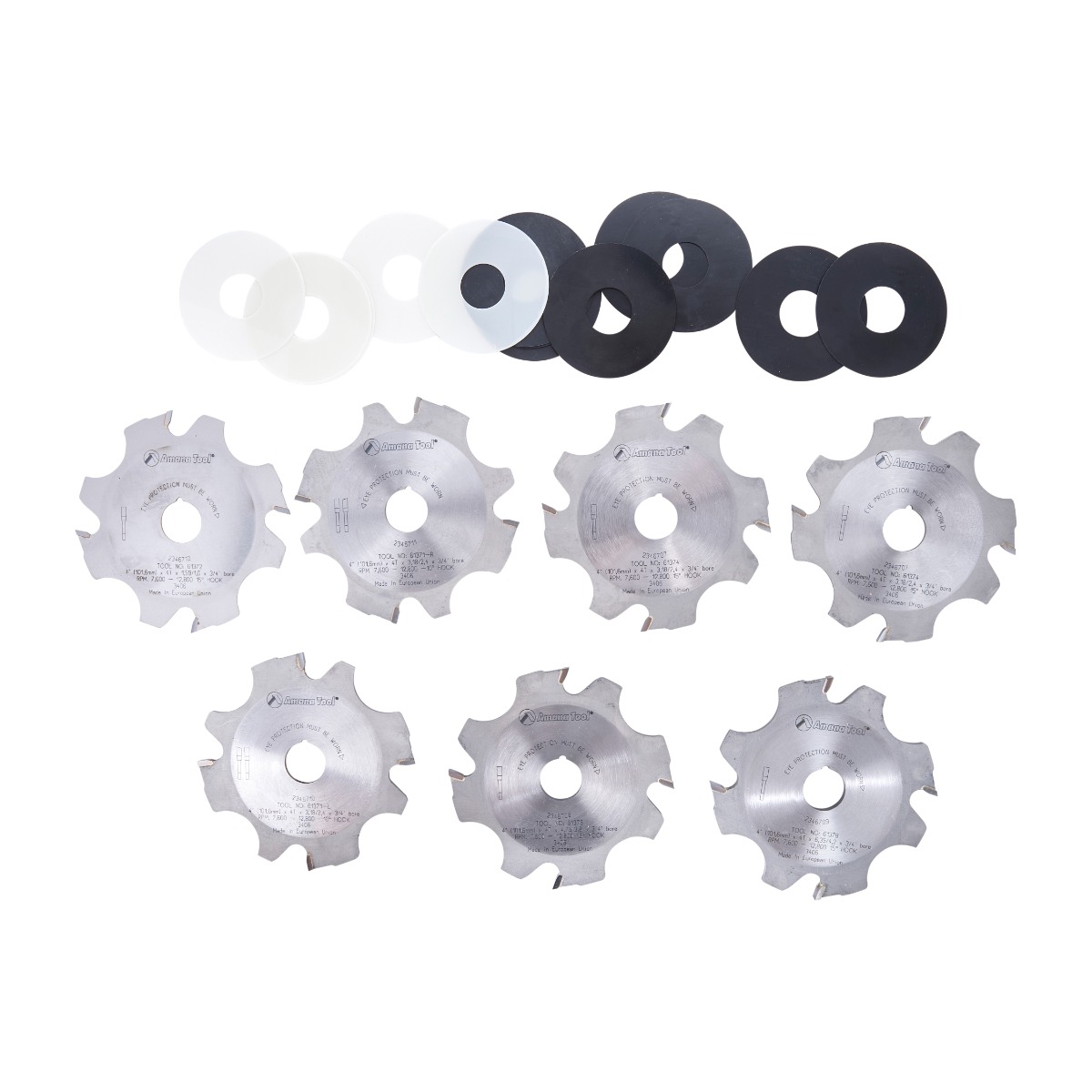

Our Prestige® Dado Set cuts perfectly smooth edges, flat-bottom cuts and grooves both along and across the grain that are free of splinters or rough edges. This set consists of seven cutters made of a hard wearing steel tool body complete with four tungsten carbide tips. Ideal for producing different dado cuts, slots and rabbeting in softwood, hardwood and man-made boards on a shaper machine. Width can be adjusted as required using included shim set.
Product Questions
I see that the kerf for this set goes from 1/4" to 1" - I need to cut a grove that is 3/16. Can individual blades (chippers?) from this set be used on their own or do you always need to stack the two 1/8 "outside" cutters in every configuration (like a table saw dado set)? Is the instruction manual available for this before I buy it? Thanks! -Ron
Question by: ron wisenski on Mar 24, 2017, 12:16 PM
We have always recommended that this set be used with both outside blades for a cleaner cut. If you are in need for more technical data, please don’t hesitate to contact Amana Tool directly by phone.
Answer by: Amana Tool Admin on Apr 4, 2017, 8:00 PM
