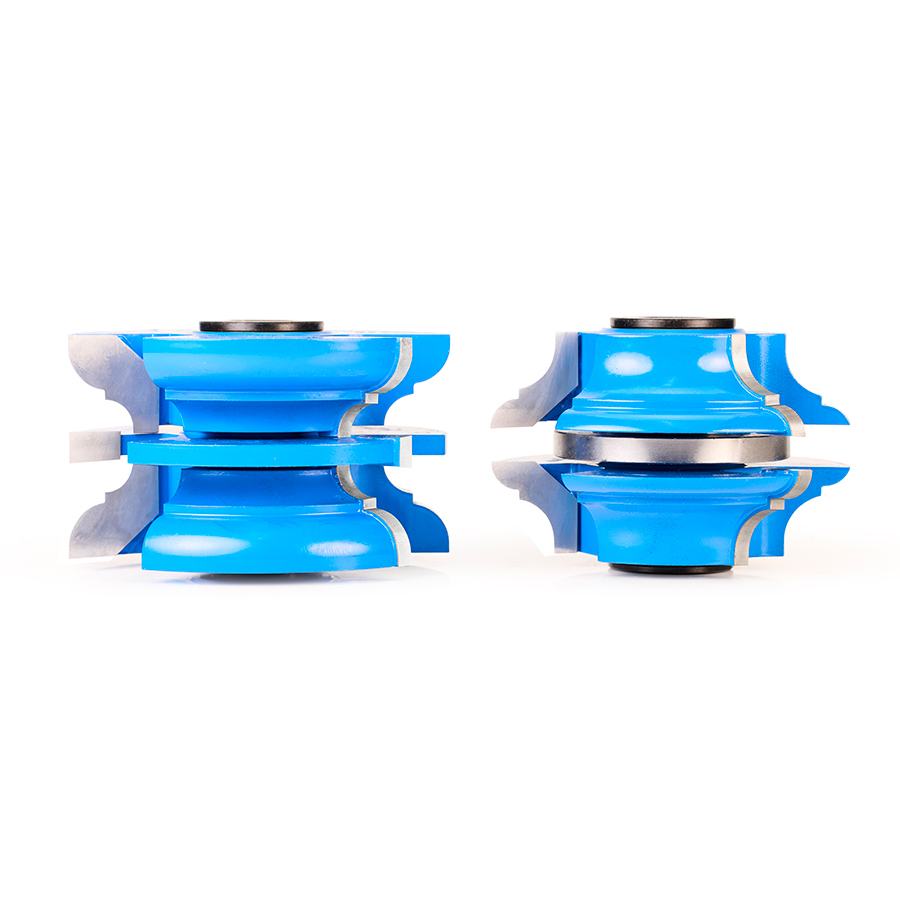

922 2-Piece Carbide Tipped 3-Wing Stile & Rail Cove & Bead Exterior Door 3-1/8 Dia x 1-3/4 x 15/64 x 11/32 Radius x 1/2 & 3/4 Bore Set for 1-3/4 Material

  • 922 2-Piece Carbide Tipped 3-Wing Stile & Rail Cove & Bead Exterior Door 3-1/8 Dia x 1-3/4 x 15/64 x 11/32 Radius x 1/2 & 3/4 Bore Set for 1-3/4 Material

922 2-Piece Carbide Tipped 3-Wing Stile & Rail Cove & Bead Exterior Door 3-1/8 Dia x 1-3/4 x 15/64 x 11/32 Radius x 1/2 & 3/4 Bore Set for 1-3/4 Material

SKU# 922

Cove & Bead Stile & Rail Cabinet Door Shaper Cutter Sets for 1-3/4 Inch Material
Designed for template shaping such as arched or cathedral doors, etc. Features a ball bearing center with a steel sleeve and is
available with either 1/2," 3/4" and 1-1/4" inside diameter. Rub collar for 3/4" arbor only!

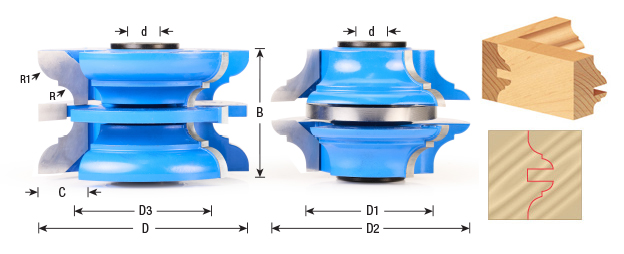

Specifications

Tool No. 922

(D) Diameter 3-1/8
(d) Bore 1/2 & 3/4
(B) Cutting Height 1-3/4
(R) Radius 15/64
D1 1-7/8
D2 2-5/16
D3 2-1/16
R1 11/32
Optional Rub Collar C-008, C-022

View 1:1 Profile

Product Q&A

Questions on 922 2-Piece Carbide Tipped 3-Wing Stile & Rail Cove & Bead Exterior Door 3-1/8 Dia x 1-3/4 x 15/64 x 11/32 Radius x 1/2 & 3/4 Bore Set for 1-3/4 Material

No questions asked yet

Please Sign up or Login to ask a question

Please or

View other sizes below

D1 D2 D3 R1 Optional Rub Collar (D) Diameter (d) Bore (B) Cutting Height (R) Radius Tool No. Add to Wishlist
2-3/8 3-7/16 3-9/16 1-5/64 C-042 3-5/8 1 & 1-1/4 1-3/4 11/32 924
