940 2-Piece Carbide Tipped 3-Wing Stile & Rail Concave Cabinet Door 2-1/2 Dia x 1-5/16 x 5/16 Radius x 1/2 & 3/4 Bore Set for 1-5/16 Material

940 2-Piece Carbide Tipped 3-Wing Stile & Rail Concave Cabinet Door 2-1/2 Dia x 1-5/16 x 5/16 Radius x 1/2 & 3/4 Bore Set for 1-5/16 Material

SKU# 940

Concave Stile & Rail Cabinet Door Shaper Cutter Sets for 1-5/16 Inch Material
Designed for template shaping such as arched or cathedral doors, etc. Features a ball bearing center with a steel sleeve and is
available with either 1/2," 3/4" and 1-1/4" inside diameter. Rub collar for 3/4" arbor only!

Specifications

Tool No. 940

(D) Diameter 2-1/2
(d) Bore 1/2 & 3/4
(B) Cutting Height 1-5/16
(R) Radius 5/16
D1 1-7/8
D2 3-1/8
Optional Rub Collar C-008, C-016

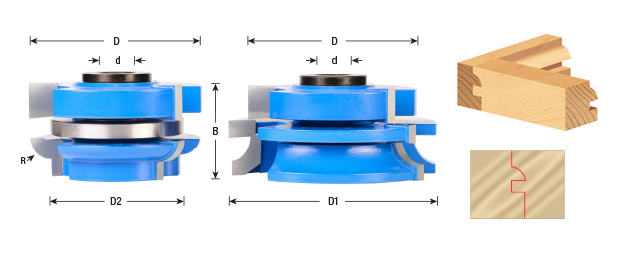

View 1:1 Profile

Product Q&A

Questions on 940 2-Piece Carbide Tipped 3-Wing Stile & Rail Concave Cabinet Door 2-1/2 Dia x 1-5/16 x 5/16 Radius x 1/2 & 3/4 Bore Set for 1-5/16 Material

No questions asked yet

Please Sign up or Login to ask a question
Replacement Parts
Tool No.T' bushing(s)1/4" StraightSteel spacerSleeve bushing1/2" straightConcave stileRail for concave stile
940 BU-550 917 919 BU-910 (2) 948 941 942
