Non-Melt Plastic Cutting Saw Blades

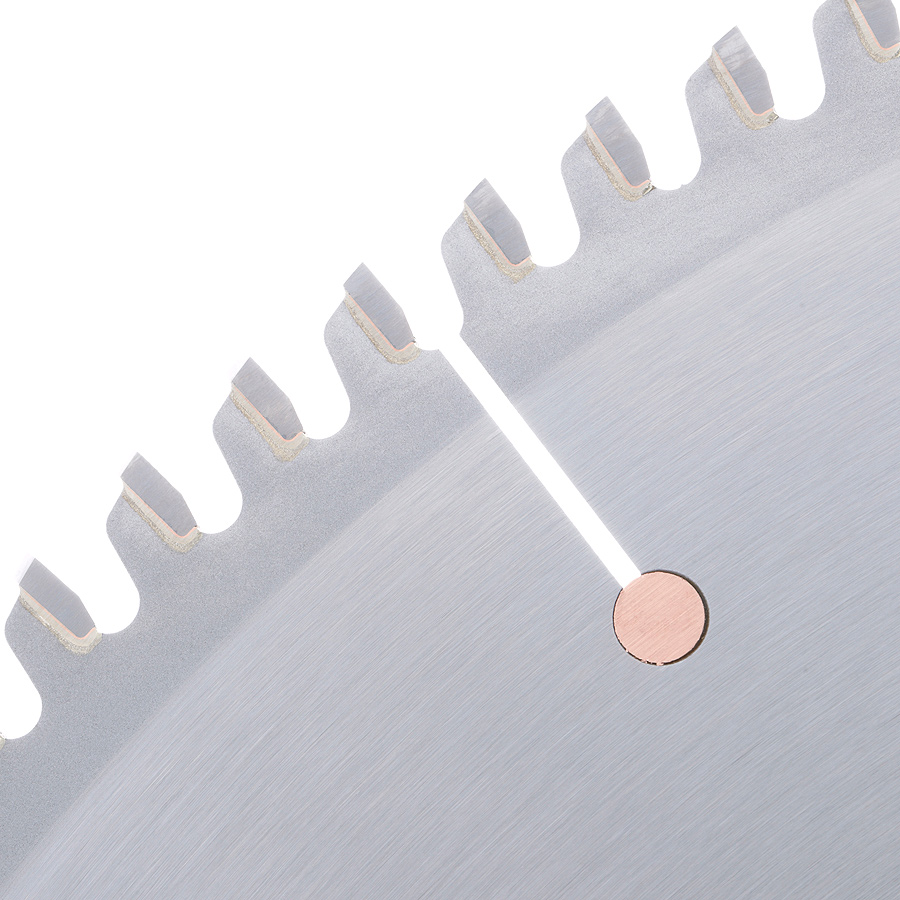

LB16121 Carbide Tipped Non-Melt Plastic 16 Inch Dia x 120T M-TCG, -2 Deg, 1 Inch Bore

#LB16121

Specification
(D) Diameter 16 (400mm)
Teeth 120
(d) Bore 1
Tooth Grind M-TCG
Hook Angle -2°
Kerf (B) .145 (3.7mm)
Plate (C) .118 (3.0mm)

When cutting acrylics and plastics, "chip-welding" – a melting of the material is a concern. But not with these Non-Melt blades. With a modified triple-chip grind and a 2° negative hook angle, they produce less heat than a standard blade, leaving a crisp and smooth edge.

Excellent for Cutting

  • Plastics
  • Acrylonitrile Butadiene Styrene (ABS)
  • Acetal
  • Acrylic
  • Acrylic Sheets
  • Alupanel®
  • Copolymer
  • Coroplast®*
  • Correx Boards
  • Corrugated Polypropolyene
  • Delrin
  • Ethylene-Vinyl Acetate
  • Foam Board
  • Gatorfoam®**
  • High Density Polyethylene (HDPE)
  • High Impact Polystyrene (HIPS)
  • High Pressure Laminates (HPL)
  • Low Density Polyethylene (LDPE)
  • Lucite®
  • Mechanical/Engineered Plastics
  • Nitrile Rubber
  • Nylon
  • Perspex® Cast Acrylic Sheet
  • Plastic Laminate Flooring
  • Plexiglas®
  • Poly (methyl methacrylate) (PMMA)
  • Polycarbonate (Lexan™)
  • Polyethylene (PE)
  • Polyethylene Terephthalate (PET)
  • Polyethylene Terephthalate Glycol-Modified (PETG / PET-G)
  • Polypropylene (PP)
  • Solid Surface
  • Styrene-Acrylonitrile
  • Styrene-Butadiene Rubber (SBR)
  • Styrene-Isoprene-Styrene (SIS)
  • Teflon®
  • Thermoplastic Polyolefin (TPO)
  • Trespa® Meteon®***
  • Ultra High Molecular Weight Polyethylene (UHMWPE)
  • Wood

:


* A soft plastic cardboard made with super soft super flexible PVC.

** A polystyrene foam board bonded between two layers of Luxcell® wood-fiber veneer.

*** Decorative high-pressure compact laminate (HPL) with an integral surface.
