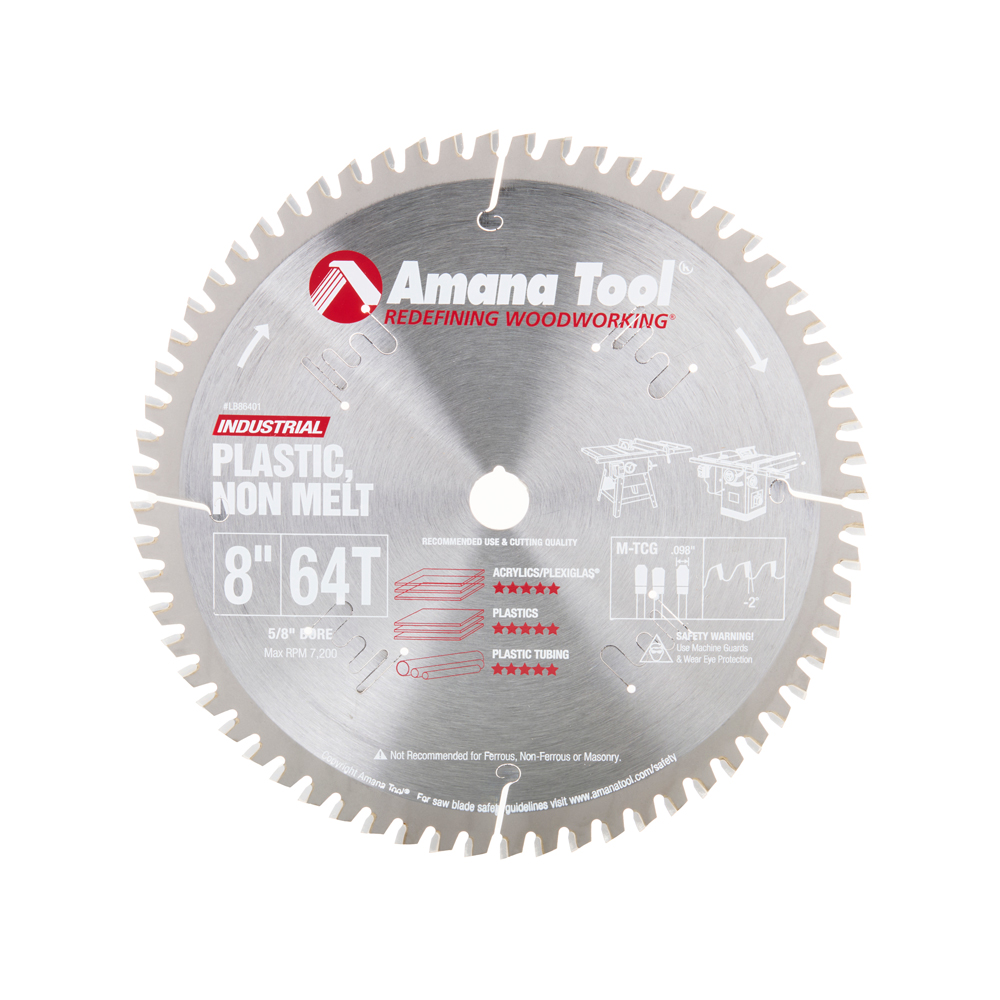

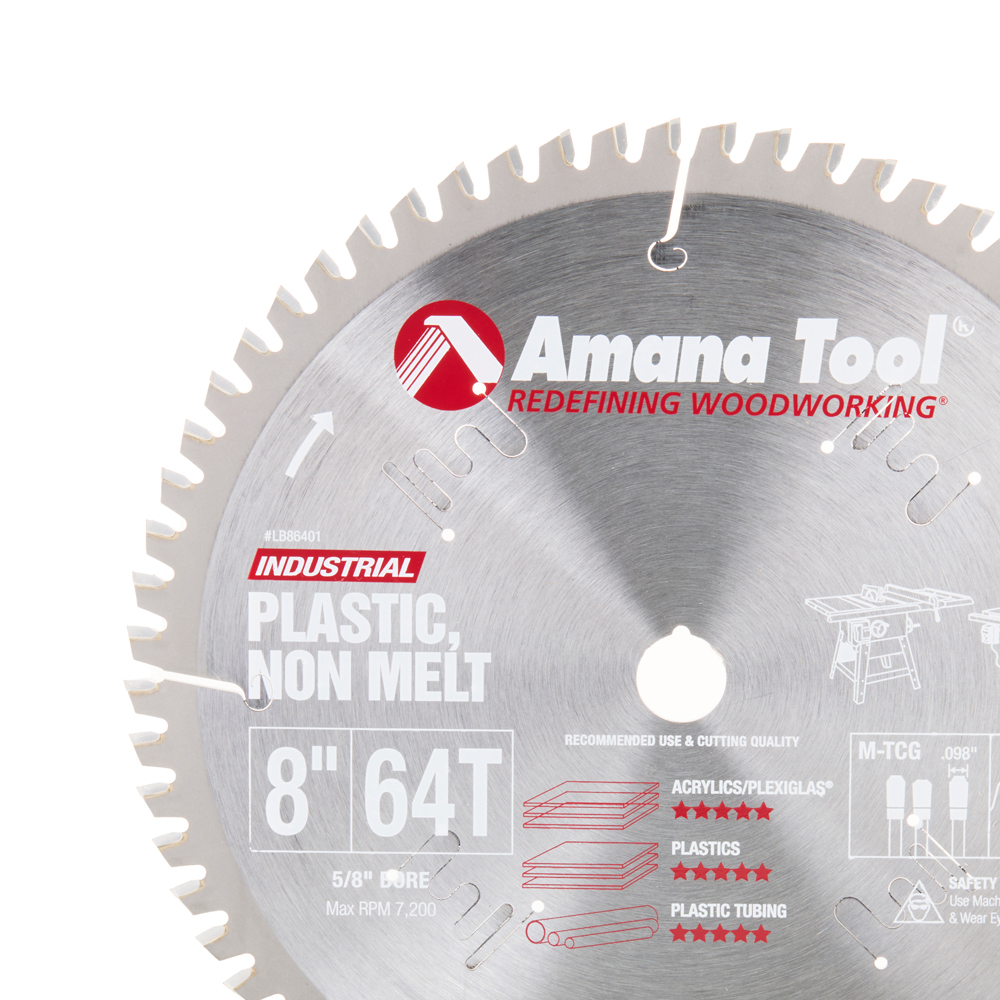

LB86401 Carbide Tipped Non-Melt Plastic 8 Inch Dia x 64T M-TCG, -2 Deg, 5/8 Bore

LB86401 Carbide Tipped Non-Melt Plastic 8 Inch Dia x 64T M-TCG, -2 Deg, 5/8 Bore

SKU# LB86401

Non-Melt Plastic Cutting Saw Blades
When cutting acrylics and plastics, chip-welding a melting of the material is a concern. But not with these Non-Melt blades. With a modified triple-chip grind and a 2° negative hook angle, they produce less heat than a standard blade, leaving a crisp and smooth edge in acrylic sheets, corrugated polypropolyene, HDPE, Lexan®, Plexiglas®, polycarbonates and other plastics.
Specifications

Tool No. LB86401

(D) Diameter 8 (200mm)
Teeth 64
(d) Bore 5/8
Tooth Grind M-TCG
Hook Angle -2°
Kerf (B) .098 (2.5mm)
Plate (C) .070 (1.8mm)

Product Q&A

Questions on LB86401 Carbide Tipped Non-Melt Plastic 8 Inch Dia x 64T M-TCG, -2 Deg, 5/8 Bore

No questions asked yet

Please Sign up or Login to ask a question
Safety

Saw Blade Safety Guidelines

File Size: 1.55 MB
Download PDF

Please or

View other sizes below

Kerf (B) Plate (C) Hook Angle (d) Bore (D) Diameter Tooth Grind Teeth pinholes Tool No. Add to Wishlist
.100 (2.5mm) .070 (1.8mm) -2° 5/8 10 (250mm) M-TCG 80 LB10801
.100 (2.5mm) .070 (1.8mm) -2° 30mm 10 (250mm) M-TCG 80 2/10/60 LB10801-30
.125 (3.2mm) .102 (2.6mm) -2° 1 12 (300mm) M-TCG 96 LB12961
.125 (3.2mm) .102 (2.6mm) -2° 30mm 12 (300mm) M-TCG 96 LB12961-30
.145 (3.7mm) .118 (3.0mm) -2° 1 14 (350mm) M-TCG 108 LB14108
.145 (3.7mm) .118 (3.0mm) -2° 1 16 (400mm) M-TCG 120 LB16121
