Ogee Insert CNC Router Bits for MDF & Wood Cabinet Doors

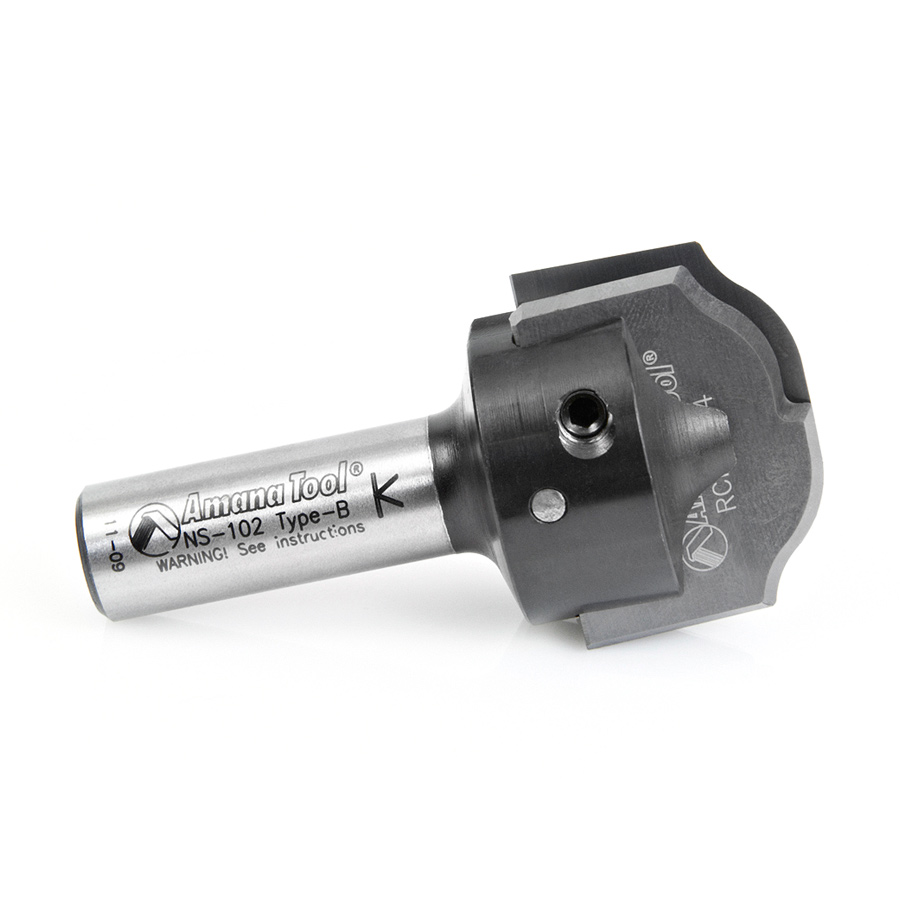

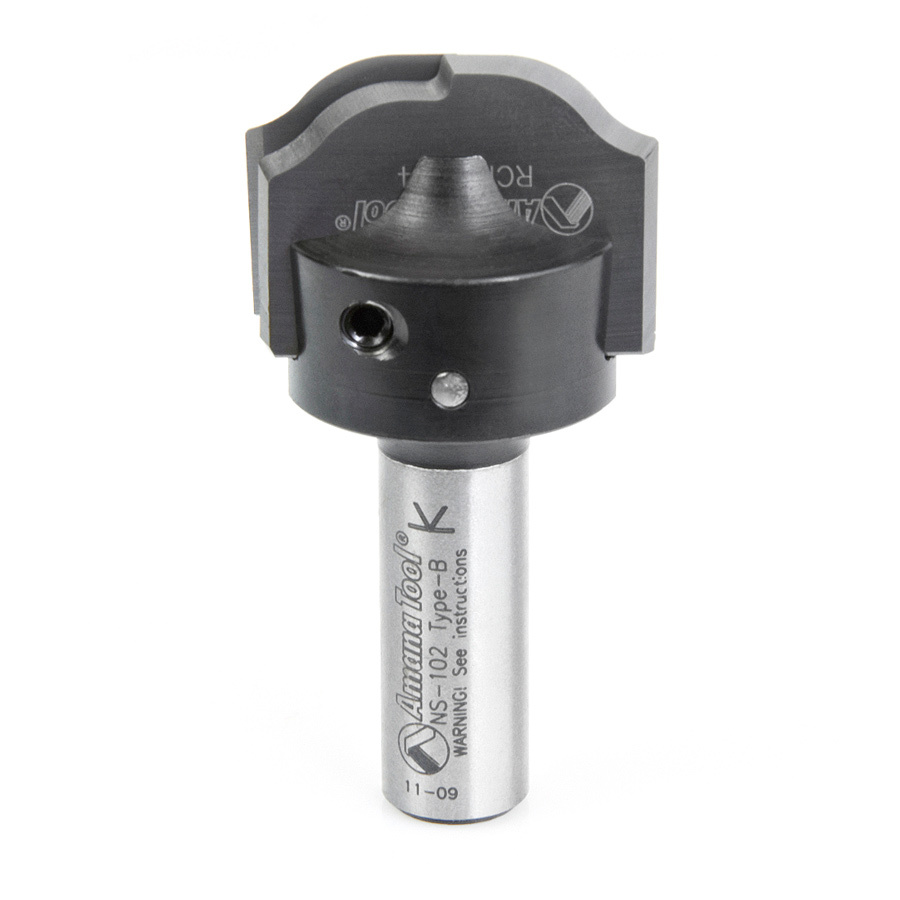

RC-2484 CNC Insert Nova System Ogee Raised Panel for MDF & Wood Cabinet Doors 1-7/64 Dia x 1/4 x 1/2 Inch Shank

#RC-2484

Specification
(D) Diameter 1-7/64
D1 7/16
(R) Radius 10mm
(B) Cutting Height 1/4
B1 7/64
(d) Shank 1/2
Overall Length (L) 2-5/8
Type Raised Panel
Style Ogee
Replacement Knives RCK-484
R1 8mm

This series of profiles utilizing our Nova™ Tool body system of interchangeable carbide insert knives are designed to give the appearance of a Raised Panel door in MDF or solid panels.

One pass is all that is needed for a simple raised panel look using one of the “Plunge Form” profiles.

Replacement knives are MDF Grade Carbide and will last much longer than standard brazed carbide tipped bits.

Excellent For:

  • MDF
  • Wood

Vectric compatible tool file for RC-2484 available for download, click here.

Tool BodyT.C Knife (2)
RCK-484

RC-2484 DXF

File Size : 130.8 KB
Create account or Login to download

RC-2484 PDF

File Size : 59.31 KB
Create account or Login to download

Raised Panel Combination Chart

File Size : 4.4 MB
Create account or Login to download

CNC Insert Nova System for Cabinet Doors Speed and Feed Chart

Download PDF
