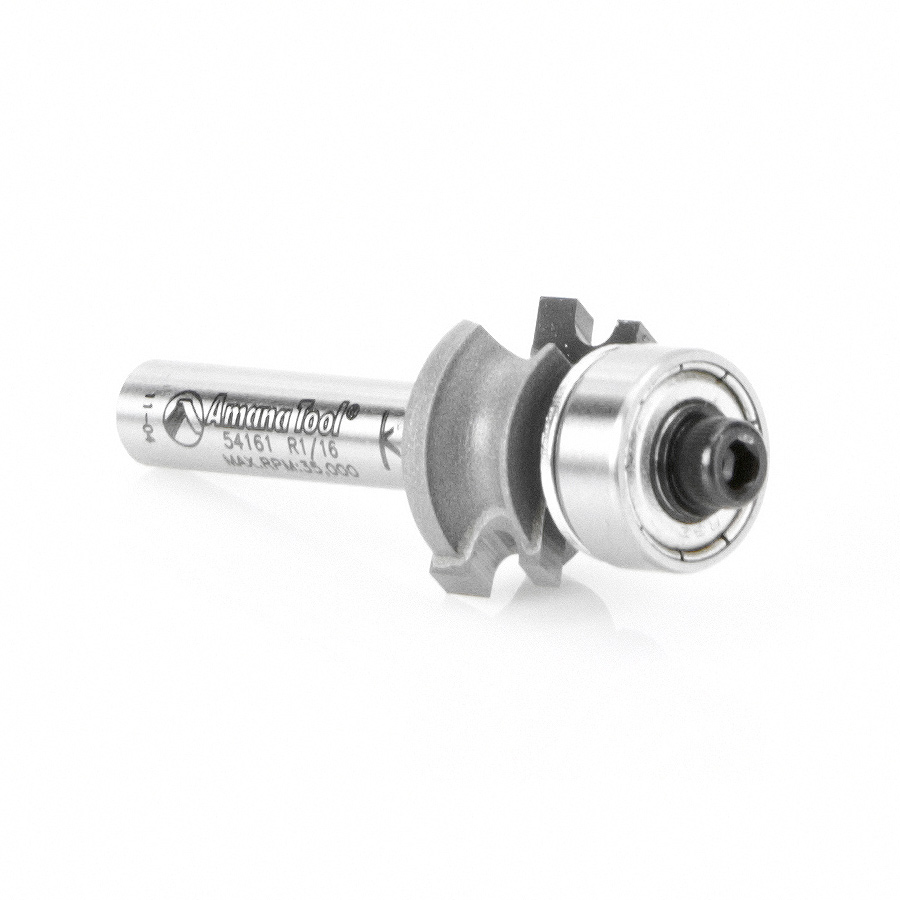

54161 Carbide Tipped Corner Round 1/16 Radius x 45/64 Dia x 5/16 x 1/4 Inch Shank

54161 Carbide Tipped Corner Round 1/16 Radius x 45/64 Dia x 5/16 x 1/4 Inch Shank

SKU# 54161

Corner Beading Router Bits

Produce three slightly different profiles using this bit - an edge bead with or without a fillet and a full corner bead - by altering the bit extension or rolling the workpiece between passes. This group of hard-to-find tools is particularly suitable for antique reproductions and restoration projects. Use in a handheld or table-mounted router.


Specifications

Tool No. 54161

Diameter (D) 45/64
Radius (R) 1/16
Cutting Height (B) 5/16
Shank (d) 1/4
Overall Length (L) 1-11/16
B1 1/8
Replacement Bearing 47716
Flutes 2
D1 5/8

View 1:1 Profile

Product Q&A

Questions on 54161 Carbide Tipped Corner Round 1/16 Radius x 45/64 Dia x 5/16 x 1/4 Inch Shank

No questions asked yet

Please Sign up or Login to ask a question
Replacement Parts
Tool No.Bearing(s)ScrewDust ShieldFlat Washer
54161 47706 67096 67098 67202

Please or

View other sizes below

B1 Replacement Bearing Flutes D1 Diameter (D) Radius (R) Cutting Height (B) Shank (d) Overall Length (L) Tool No. Add to Wishlist
1/4 47706 2 3/4 7/8 1/8 9/16 1/4 2-1/8 54160
1/4 47706 2 3/4 7/8 1/8 9/16 1/2 2-1/2 54162
3/8 47716 2 1 1-1/8 3/16 11/16 1/4 2-1/4 54164
3/8 47716 2 1 1-1/8 3/16 11/16 1/2 2-5/8 54166
9/16 47716 2 1-1/8 1-1/4 1/4 3/4 1/4 2-1/4 54168
9/16 47716 2 1-1/8 1-1/4 1/4 3/4 1/2 2-5/8 54170
3/4 47716 2 1-3/8 1-1/2 3/8 1 1/2 2-7/8 54172
3/16 47706 2 11/16 49/64 3/32 25/64 1/4 1-3/4 54163
47716 2 7/8 1/8 3/4 1/2 2-5/8 54294
