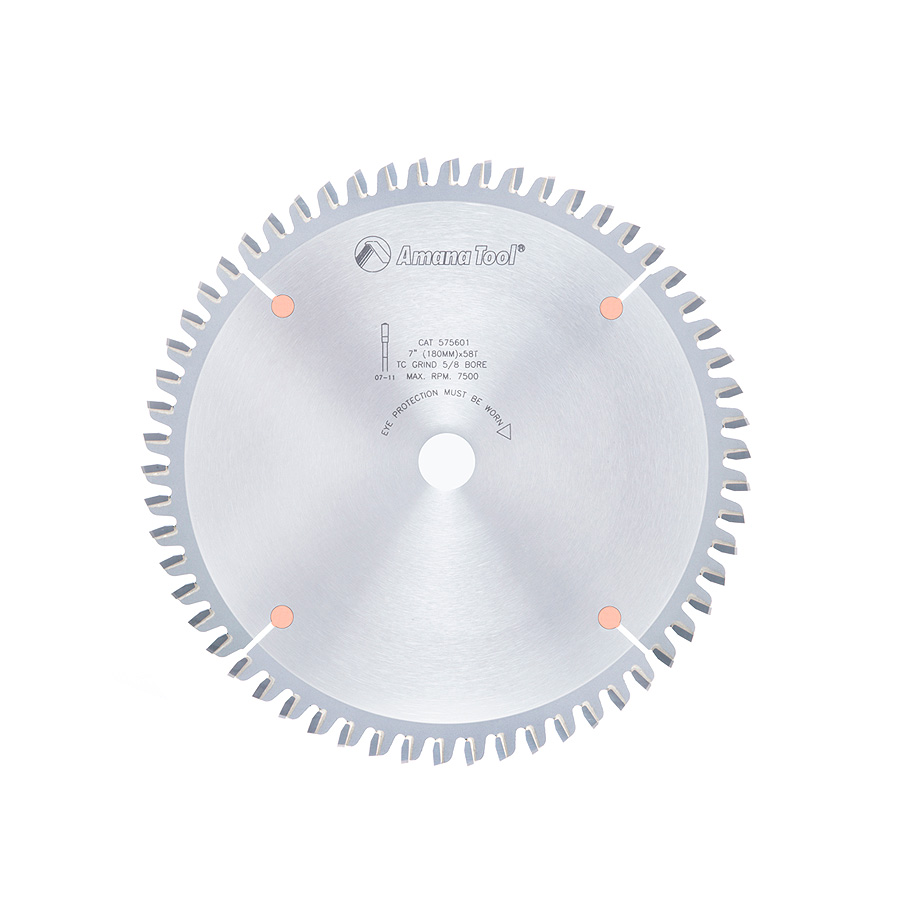

575601 Carbide Tipped Aluminum and Non-Ferrous Metals 7 Inch Dia x 58T TCG, -6 Deg, 5/8 Bore

575601 Carbide Tipped Aluminum and Non-Ferrous Metals 7 Inch Dia x 58T TCG, -6 Deg, 5/8 Bore

SKU# 575601

Non-Ferrous Metal Cutting Saw Blades for Thin Aluminum

Thanks to its special carbide formulation and blade geometry, this is the ideal blade for cutting relatively thin-walled aluminum and non-ferrous extrusions and frames. The negative hook angle (-6°), triple-chip grind and thick plate combine to produce a superior finish. The blade can also be used to cut other "difficult" materials such as plastic, PVC tubing, fiberglass and ACM (Aluminum Composite Material). Use a coolant or blade wax and clamp down the workpiece when cutting non-ferrous metals. Never attempt to cut ferrous metals (steel, iron, etc.).


Specifications

Tool No. 575601

(D) Diameter 7 (180mm)
Teeth 58
(d) Bore 5/8
Tooth Grind TCG
Hook Angle -6°
Kerf (B) .110 (2.8mm)
Plate (C) .087 (2.2mm)

Product Q&A

Questions on 575601 Carbide Tipped Aluminum and Non-Ferrous Metals 7 Inch Dia x 58T TCG, -6 Deg, 5/8 Bore

No questions asked yet

Please Sign up or Login to ask a question
Safety

Saw Blade Safety Guidelines

File Size: 1.55 MB
Download PDF

Please or

View other sizes below

Kerf (B) Plate (C) Choose Category From List (D) Diameter Teeth (d) Bore Tooth Grind Hook Angle Machine pinholes Tool No. Add to Wishlist
.126 (3.2mm) .102 (2.6mm) Non-Ferrous Metal Cutting Saw Blades for Thin Aluminum 10 (250mm) 100 5/8 TCG -6° 510101
.126 (3.2mm) .102 (2.6mm) Non-Ferrous Metal Cutting Saw Blades for Thin Aluminum 10 (250mm) 80 5/8 TCG -6° 510801
.126 (3.2mm) .102 (2.6mm) Non-Ferrous Metal Cutting Saw Blades for Thin Aluminum 12 (300mm) 96 1 TCG -6° 512961
.126 (3.2mm) .102 (2.6mm) Non-Ferrous Metal Cutting Saw Blades for Thin Aluminum 14 (350mm) 108 1 TCG -6° 514108
.120 (3.1mm) .098 (2.5mm) Non-Ferrous Metal Cutting Saw Blades for Thin Aluminum 15 (375mm) 100 1 TCG -6° Hitachi 515101
.150 (3.8mm) .126 (3.2mm) Non-Ferrous Metal Cutting Saw Blades for Thin Aluminum 16 (400mm) 120 1 TCG -6° 516121
.150 (3.8mm) .126 (3.2mm) Non-Ferrous Metal Cutting Saw Blades for Thin Aluminum 18 (450mm) 120 1 TCG -6° 518121
.174 (4.4mm) .134 (3.4mm) Non-Ferrous Metal Cutting Saw Blades for Thin Aluminum 20 (500mm) 120 1 TCG -6° 520121
.110 (2.8mm) .087 (2.2mm) Non-Ferrous Metal Cutting Saw Blades for Thin Aluminum 8 (200mm) 64 5/8 TCG -6° 586401
.110 (2.8mm) .087 (2.2mm) Non-Ferrous Metal Cutting Saw Blades for Thin Aluminum 9 (230mm) 60 5/8 TCG -6° 596001
.126 (3.2mm) .102 (2.6mm) Non-Ferrous Metal Cutting Saw Blades for Thin Aluminum 10 (250mm) 80 30mm TCG -6° 2/7/42 & 2/10/60 510801-30
.126 (3.2mm) .102 (2.6mm) Non-Ferrous Metal Cutting Saw Blades for Thin Aluminum 12 (300mm) 96 30mm TCG -6° 2/10/60 512961-30
.122 (3.1mm) .098 (2.5mm) Non-Ferrous Metal Cutting Saw Blades for Thin Aluminum 14 (350mm) 100 25mm TCG -6° Makita 514101-25
.146 (3.7mm) .118 (3.0mm) Non-Ferrous Metal Cutting Saw Blades for Thin Aluminum 14 (350mm) 100 5/8 TCG -6° Pistorious 514101-5/8HD
.126 (3.2mm) .102 (2.6mm) Non-Ferrous Metal Cutting Saw Blades for Thin Aluminum 14 (350mm) 108 30mm TCG 514108-30
.174 (4.4mm) .152 (3.9mm) Non-Ferrous Metal Cutting Saw Blades for Thin Aluminum 20 (500mm) 120 30mm TCG 2/7/42 & 2/10/60 520121-30
