Brad Point Right Hand Boring Bits 57mm Long

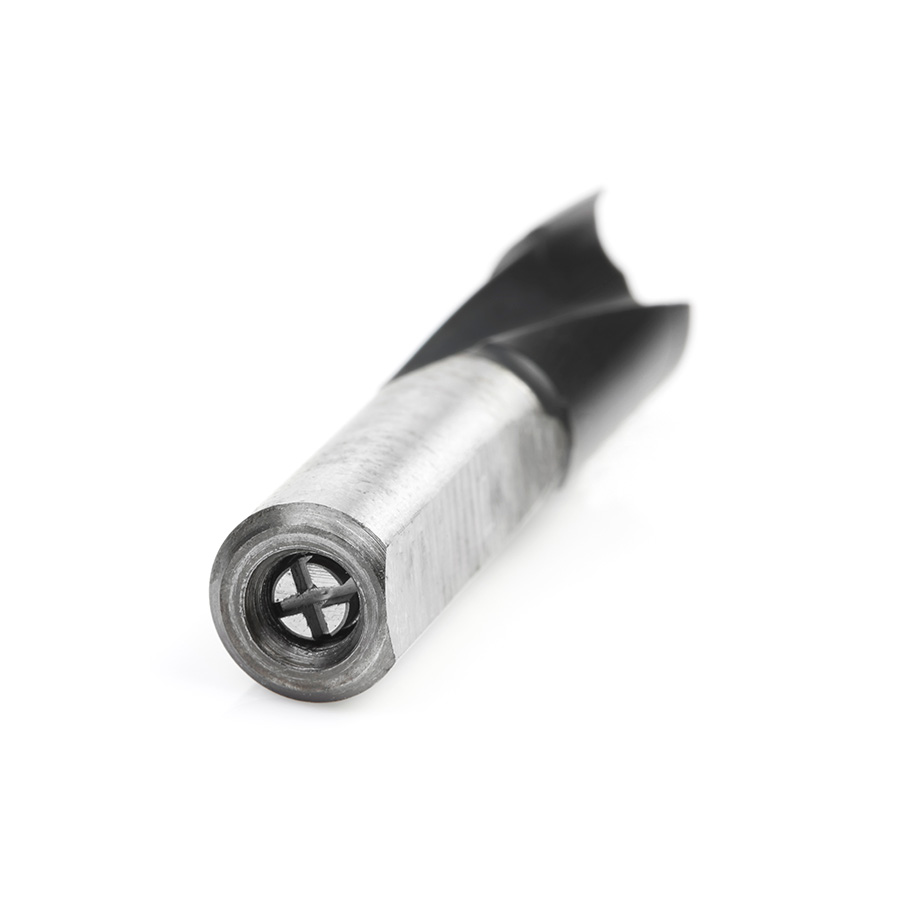

201012 Carbide Tipped Brad Point Boring Bit R/H 12mm Dia x 57mm Long x 10mm Shank

#201012

Specification222
(D) Diameter 12mm
(B) Cutting Height 27mm
(d) Shank 10mm
Overall Length (L) 57mm
Rotation Right Hand

Industrial Brad Point Boring Bits are coated with a non-stick coating for longer lasting cutting edge and tool life.

Amana Tool® dowel drills are coated with a special Polytetrafluoroethylene (PTFE), a non-stick color coating. In cases where the carbide tip cutting edges are coated, there is no need to sand the coating off before use. Once the tool starts drilling, the coating is cleared off the needed cutting edge right away.

Amana's coating is applied onto the bit at a temperature of 570° F. The coating reduces the friction between the chip and the body inside the flute and it helps to clear the chips out of the hole during the drilling creating a cooler drilling area, no burning and longer lasting cutting edge.

Product Questions

what are the recommended speeds and feeds for your #201012 12mm brad point boring bit? We're running on a Laguna SmartShop II. Thanks.........
Question by: Gary Milosovich on Jan 15, 2021, 4:46 PM
A starting point would be 4,500 RPM and a down feed of 20” – 150” per minute, depending on the material you might need to peck to remove the chips.
Answer by: Amana Admin on Jan 19, 2021, 3:36 PM

Question on 201012 Carbide Tipped Brad Point Boring Bit R/H 12mm Dia x 57mm Long x 10mm Shank
