Carbide Tipped Adjustable Counterbore Bits
20204 Carbide Tipped Adjustable 29/64-5/8 Dia x 15/32 Cut Depth x 1/8-9/32 Inch Shank
#20204

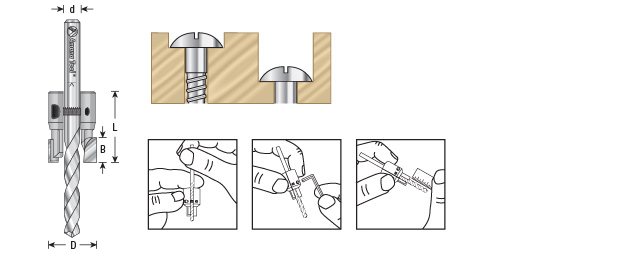

| (D) Diameter | 29/64-5/8 |
|---|---|
| (B) Cutting Height | 15/32 |
| (d) Shank | 1/8-9/32 |
| Overall Length (L) | 1-3/32 |
| Drill Din | 338 |
| Replacement Drill | 630-102 |
Accepts Drills* from 1/8" through 9/32" (Wood Screw Sizes #2 through #18).
Excellent for Drilling:
- Natural Woods
- Man-Made Boards
- MDF
- Chipboard
- Plywood
- Aluminum/Non-Ferrous
- Aluminum Composite Material (ACM)
- Composite Decking Materials
- High Density Polyethylene (HDPE)
Warning: When drilling aluminum/non-ferrous materials, for optimal results and extended tool life use lubricant or air cooling. Make sure the material is fixed and drill is stable during drilling.
