Hinge Boring Bits 60mm Long for Routers
203431 Carbide Tipped Hinge Boring Bit R/H 35mm Dia x 60mm Long x 1/2 Inch Shank
#203431

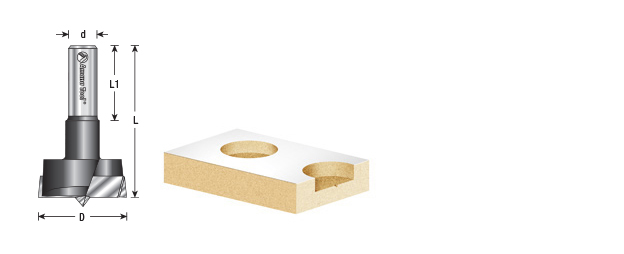

| (D) Diameter | 35mm |
|---|---|
| (d) Shank | 1/2 |
| Overall Length (L) | 60mm |
| L1 | (30mm) |
Designed for plunge routers, CNC routers, machining centers and point-to-point machines.
Note: Maximum RPM is 8,000.
Not to be used in portable drills or hand held routers.
Product Questions
Using on a CNC, what would the feed and speed for this bit going into skyply/ultracore?
Question by: chad wennberg on Aug 5, 2020, 2:02 PM
Same as you would use in a boring machine.
Answer by: Amana Admin on Aug 11, 2020, 4:09 PM
I was wondering what the recommend speeds are for Descent, Feed, Rotation and Acceleration.
Question by: Benigno Barrera on Dec 2, 2020, 5:12 PM
Please see the information you requested for Amana Tool part number 203431 below.
Plunge rate/ ramp down rate: 20 to 40 inches per minute at an RPM of 6,000 – 8,000.
Plunge rate/ ramp down rate: 20 to 40 inches per minute at an RPM of 6,000 – 8,000.
Answer by: Amana Admin on Jan 19, 2021, 3:32 PM
