Brad Point Right Hand Boring Bits 70mm Long

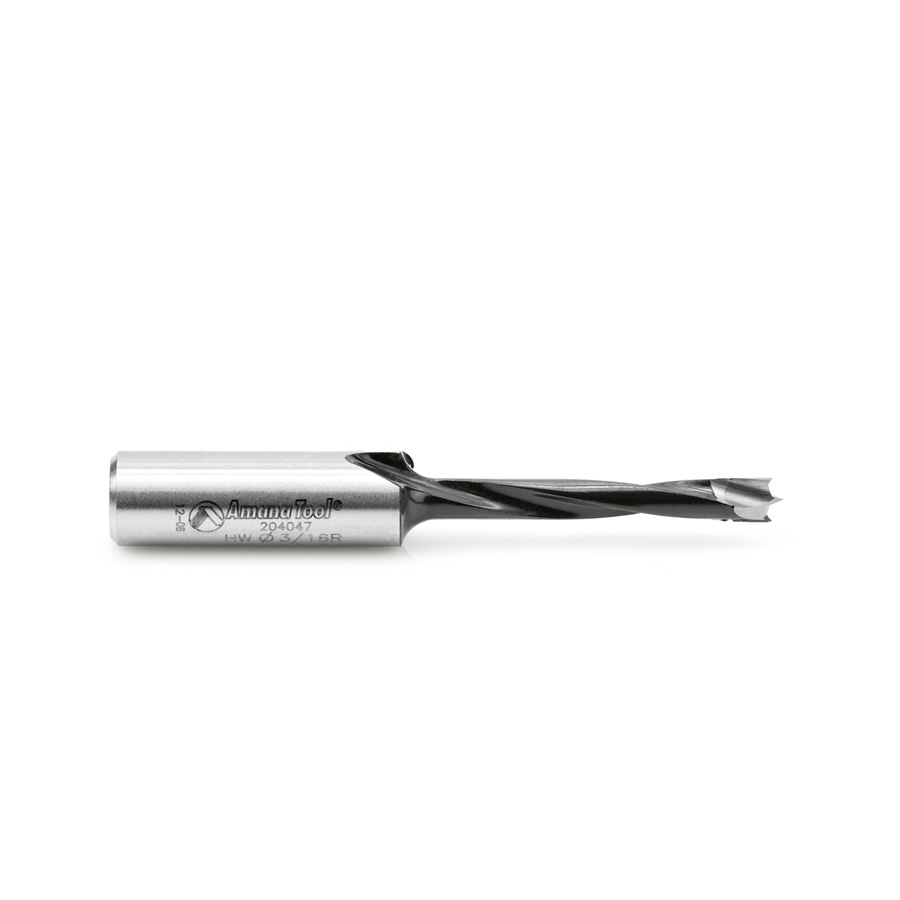

204047 Carbide Tipped Brad Point Boring Bit R/H 3/16 Dia x 70mm Long x 10mm Shank

#204047

Specification222
(D) Diameter 3/16
(B) Cutting Height 35mm
(d) Shank 10mm
Overall Length (L) 70mm
Rotation Right Hand

Industrial Brad Point Boring Bits are coated with a non-stick coating for longer lasting cutting edge and tool life.

Amana Tool® dowel drills are coated with a special Polytetrafluoroethylene (PTFE), a non-stick color coating. In cases where the carbide tip cutting edges are coated, there is no need to sand the coating off before use. Once the tool starts drilling, the coating is cleared off the needed cutting edge right away.

Amana's coating is applied onto the bit at a temperature of 570° F. The coating reduces the friction between the chip and the body inside the flute and it helps to clear the chips out of the hole during the drilling creating a cooler drilling area, no burning and longer lasting cutting edge.

Product Questions

What is a good source for spindle speed & feed rate vs. materials, for drill bits, using a CNC Router?
Question by: Keith Layton on Jun 6, 2017, 12:31 PM
For our Amana tool bits you may visit our web site and search the part number. Once in that screen you click on the tab marked feed & Speed rates. There you will find the tables. If no tables are available you may contact us directly at 1-800-445-0077 for technical help. There are also many speed and feed rate calculators available on line.
Answer by: Amana Admin on Jun 28, 2017, 2:44 PM

Question on 204047 Carbide Tipped Brad Point Boring Bit R/H 3/16 Dia x 70mm Long x 10mm Shank
