Brad Point Left Hand Boring Bits 70mm Long

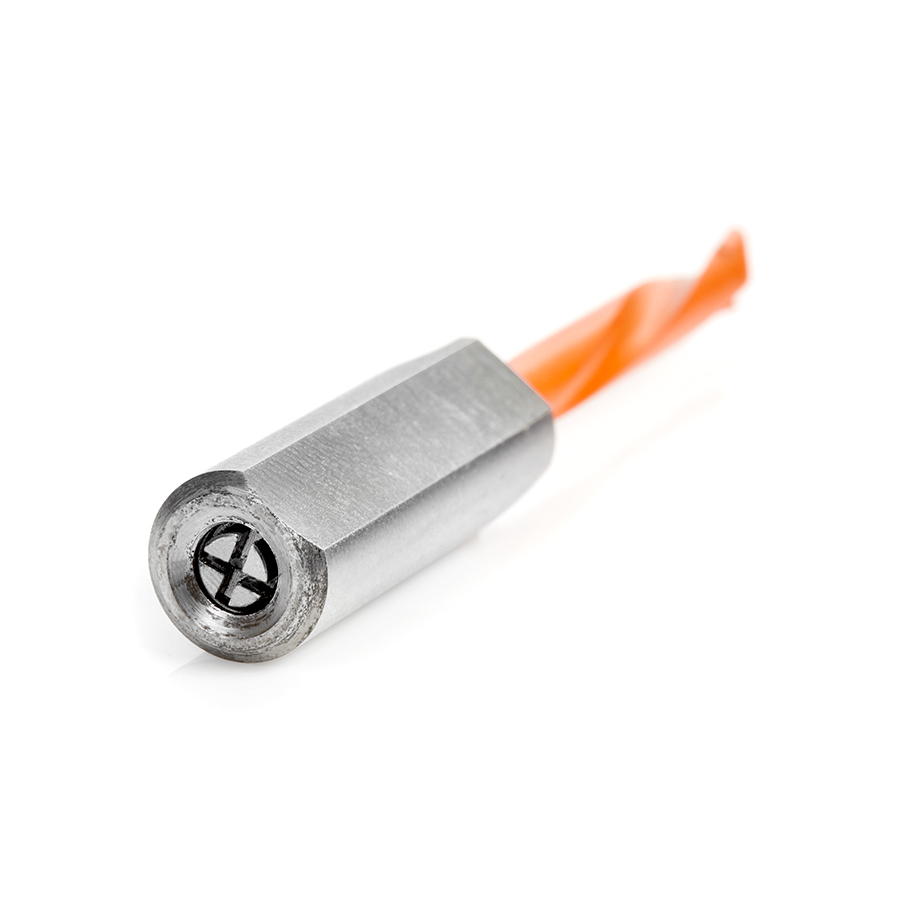

304005 Carbide Tipped Brad Point Boring Bit L/H 5mm Dia x 70mm Long x 10mm Shank

#304005

Specification222
(D) Diameter 5mm
(B) Cutting Height 35mm
(d) Shank 10mm
Overall Length (L) 70mm
Rotation Left Hand

Industrial Brad Point Boring Bits are coated with a non-stick coating for longer lasting cutting edge and tool life.

Amana Tool® dowel drills are coated with a special Polytetrafluoroethylene (PTFE), a non-stick color coating. In cases where the carbide tip cutting edges are coated, there is no need to sand the coating off before use. Once the tool starts drilling, the coating is cleared off the needed cutting edge right away.

Amana's coating is applied onto the bit at a temperature of 570° F. The coating reduces the friction between the chip and the body inside the flute and it helps to clear the chips out of the hole during the drilling creating a cooler drilling area, no burning and longer lasting cutting edge.

Product Questions

304005 Carbide Tipped Brad Point Boring Bit L/H 5mm Dia x 70mm Long x 10mm Shank
what's the recommended feed rates and tool speed when you drill on the melamine board and the plastic laminated MDF?
Question by: Dan Lim on Feb 4, 2021, 4:43 PM
The carbide tipped boring bits have a maximum RPM of 8,000. Typically, they run the between 3,600 – 4,600 RPM with a down feed between 20” – 150” per minute depending on your material.
Answer by: Amana Admin on Mar 11, 2021, 9:23 PM

Question on 304005 Carbide Tipped Brad Point Boring Bit L/H 5mm Dia x 70mm Long x 10mm Shank
