Production Shear Straight Plunge Up Shear Router Bits
42476 Carbide Tipped Production Shear Straight Plunge Up Shear 5 Deg x 3/4 Dia x 2 Inch x 3/4 Shank
#42476

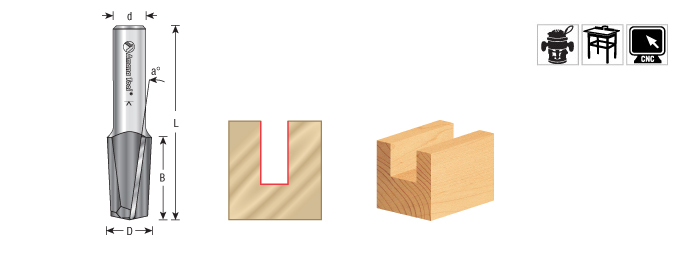

| Angle (a°) | 5° |
|---|---|
| Diameter (D) | 3/4 |
| Cutting Height (B) | 2 |
| Shank (d) | 3/4 |
| Overall Length (L) | 4 |
| Flutes | 2 |
Application: Same as down-shear router bit, but with up-shear design to pull chips away from the cut. Can be used inverted as in a router table. Straight ground (not radial ground) for the highest quality cut and fastest feed rate.
