Solid Carbide Double Straight 'V' Flute Plastic Cutting Router Bits

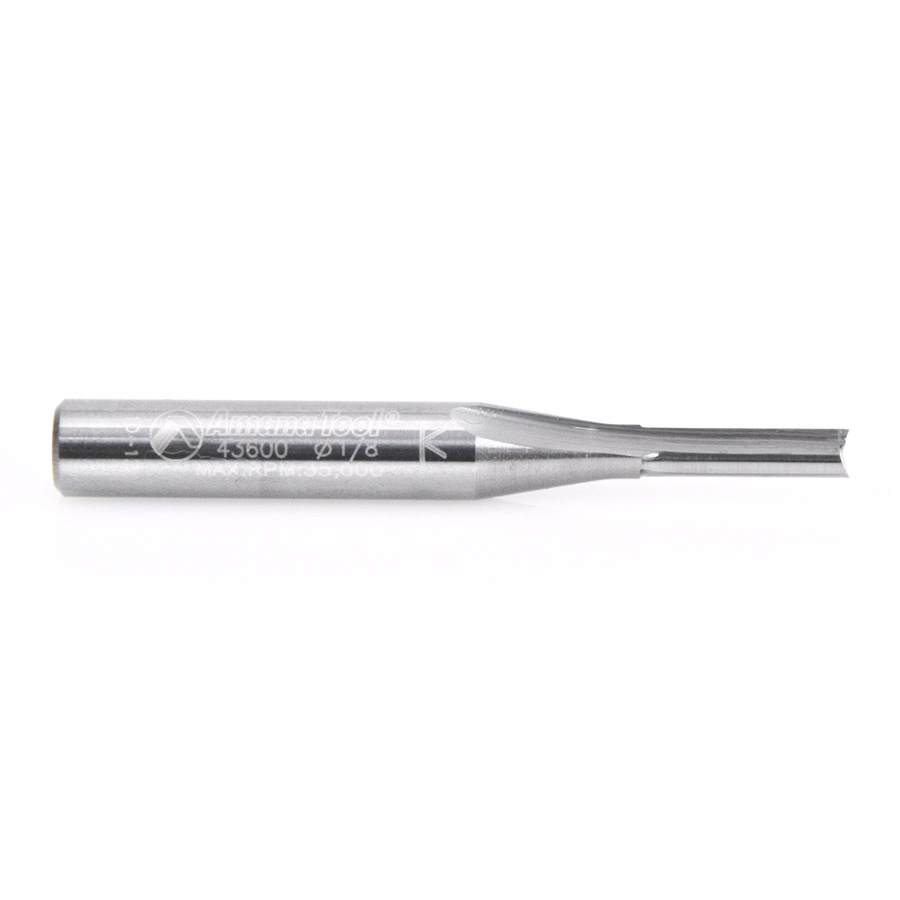

43600 Solid Carbide Double Straight 'V' Flute Plastic Cutting 1/8 Dia x 1/2 x 1/4 Inch Shank

#43600

Specification222
Diameter (D) 1/8
Cutting Height (B) 1/2
Shank (d) 1/4
Overall Length (L) 2
Flutes 2

Used for routing harder and more rigid plastics in the following materials: Acrylic, Acetal, Nylon, PVC, ABS, Phenolic, Corian, Poly (methyl methacrylate) (PMMA), Acrylic Stone, Coroplast®, etc.

Excellent for Cutting:

  • Plastic
  • Acetal
  • Acrylic
  • Acrylic Stone
  • Acrylonitrile Butadiene Styrene (ABS)
  • Alupanel®
  • Copolymer
  • Corian
  • Coroplast®*
  • Corrugated Polypropolyne
  • Delrin
  • Ethylene-Vinyl Acetate
  • Foam Board
  • Fomex®
  • Gator Board
  • High Density Polyethylene (HDPE)
  • High Impact Polystyrene (HIPS)
  • High Pressure Laminates (HPL)
  • Hydroxy-Terminated Polyether (HTPE)
  • Low Density Polyethylene (LDPE)
  • LubX®
  • Lucite
  • Mechanical/Engineered Plastics
  • Nitrite Rubber
  • Nylon
  • Perspex® Cast Acrylic Sheet
  • Phenolic
  • Plexiglas®
  • Polyethylene (PE)
  • Polyethylene Terephthalate (PET)
  • Polyethylene Terephthalate Glycol-Modified (PETG / PET-G)
  • Poly (methyl methacrylate) (PMMA)
  • Polycarbonate
  • Polypropylene (PP)
  • Polyoxymethylene (POM), also known as Acetal, Polyacetal and Polyformaldehyde.
  • PVC
  • Sign Foam
  • StarBoard® (King StarBoard 'R') High Density Polyethylene Sheet (HDPE)
  • Styrene-Acrylonitrile
  • Styrene-Butadiene Rubber (SBR)
  • Styrene-Isoprene-Styrene (SIS)
  • Teflon®
  • Thermoplastic Polyolefin (TPO)
  • Ultra High Molecular Weight Polyethylene (UHMW)
  • Urethane

*A soft plastic cardboard made with super soft, super flexible PVC.

Solid Carbide Single and Double Plastic 'O' Flute Router Bits Speed and Feed Chart

Download PDF

Product Questions

what is the feed rate, plunge rate and RPM for this bit?
Question by: Phillip Lee on Apr 25, 2017, 1:59 PM
This is a bottom bearing bit and will not plunge! This bit may be used in a hand held or router table application and fed by hand. A good operating RPM for this tool depending on what your different material is should fall in a range from 16,000 to 18,000 RPM. Please make sample cuts to see.
Answer by: Amana Tool Admin on Apr 26, 2017, 7:11 PM

Question on 43600 Solid Carbide Double Straight 'V' Flute Plastic Cutting 1/8 Dia x 1/2 x 1/4 Inch Shank
