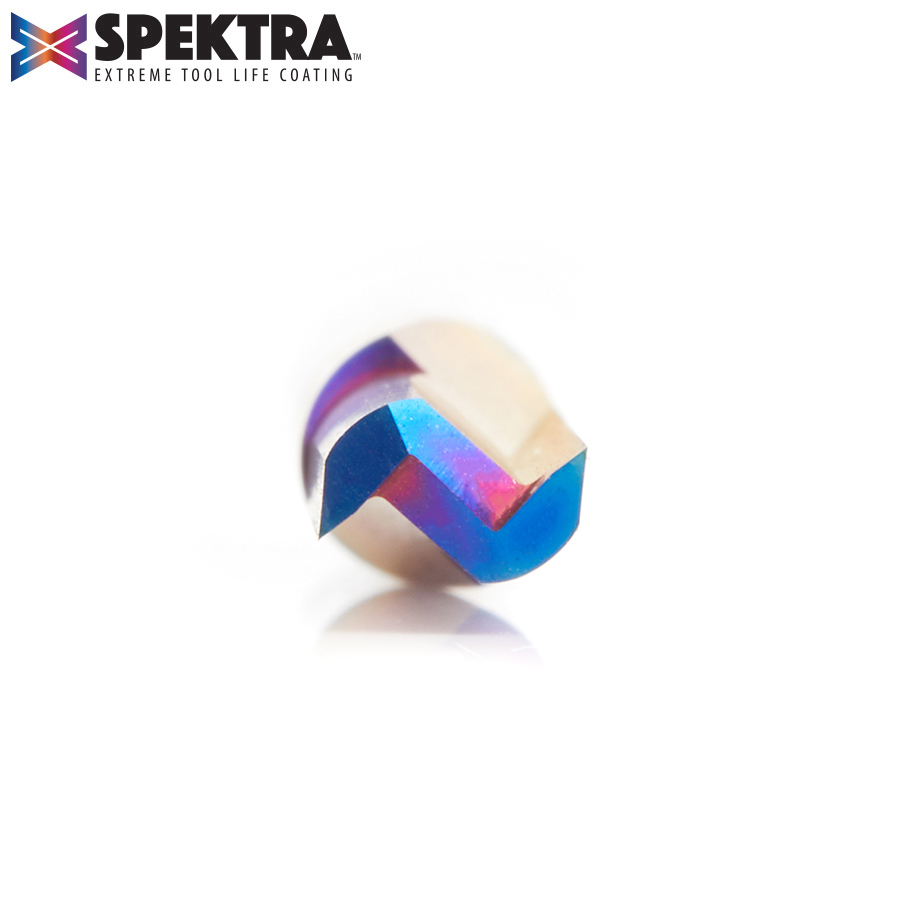

Solid Carbide Spektra™ Extreme Tool Life Coated Double Straight 'V' Flute Plastic Cutting Router Bits

43607-K Solid Carbide Spektra™ Extreme Tool Life Coated Double Straight 'V' Flute Plastic Cutting 1/4 Dia x 3/4 x 1/4 Inch Shank

#43607-K

Specification
Diameter (D) 1/4
Cutting Height (B) 3/4
Shank (d) 1/4
Overall Length (L) 2
Flutes 2

Used for routing harder and more rigid plastics in the following materials: Acrylic, Acetal, Nylon, PVC, ABS, Phenolic, Corian, Poly (methyl methacrylate) (PMMA), Acrylic Stone, Coroplast®, etc.

Excellent for Cutting:

  • Plastic
  • Acetal
  • Acrylic
  • Acrylic Stone
  • Acrylonitrile Butadiene Styrene (ABS)
  • Alupanel®
  • Copolymer
  • Corian
  • Coroplast®*
  • Corrugated Polypropolyne
  • Delrin
  • Ethylene-Vinyl Acetate
  • Foam Board
  • Fomex®
  • Gator Board
  • High Density Polyethylene (HDPE)
  • High Impact Polystyrene (HIPS)
  • High Pressure Laminates (HPL)
  • Hydroxy-Terminated Polyether (HTPE)
  • Low Density Polyethylene (LDPE)
  • LubX®
  • Lucite
  • Mechanical/Engineered Plastics
  • Nitrite Rubber
  • Nylon
  • Perspex® Cast Acrylic Sheet
  • Phenolic
  • Plexiglas®
  • Polyethylene (PE)
  • Polyethylene Terephthalate (PET)
  • Polyethylene Terephthalate Glycol-Modified (PETG / PET-G)
  • Poly (methyl methacrylate) (PMMA)
  • Polycarbonate
  • Polypropylene (PP)
  • Polyoxymethylene (POM), also known as Acetal, Polyacetal and Polyformaldehyde.
  • PVC
  • Sign Foam
  • StarBoard® (King StarBoard 'R') High Density Polyethylene Sheet (HDPE)
  • Styrene-Acrylonitrile
  • Styrene-Butadiene Rubber (SBR)
  • Styrene-Isoprene-Styrene (SIS)
  • Teflon®
  • Thermoplastic Polyolefin (TPO)
  • Ultra High Molecular Weight Polyethylene (UHMW)
  • Urethane
  • Wood

*A soft plastic cardboard made with super soft, super flexible PVC.

Our Spektra™ bits feature a nACo® nanocomposite coating with an extreme nanohardness and heat resistance. With a brilliant distinctively-tinted coloring nACo provides additional improvements in four critical aspects of router tooling.
  • nACo coating is a micro-thin ceramic coating which enables the tool's cutting edge to retain crucial sharpness and lubricity. This provides longevity and produces cutting results of the highest quality.
  • Coating prevents high heat and oxidation which is detrimental to cutting tool performance.
  • Multi-colored hues, while attractive, will dissipate upon use and yet coating will remain fully effective.
  • nACo offers approximately 4,500 Vickers for impressive solid hardness on cutting areas of the tool, for an increase up to 2.5 times compared to uncoated bits.

Note: Blue based color dissipates immediately upon use. nACo® nanocomposite coating will not wear off.


Maximum RPM: 35,000

Fusion Logo

Fusion 360 compatible tool file for 43607-K available for download, click here.

Spektra™ Coated Solid Carbide Double and Triple Plastic 'O' Flute Router Bits Speed and Feed Chart

Download PDF
