High Production Straight Plunge Single Flute 1/4 & 3/8 Inch Shank Router Bits

45110 Carbide Tipped Straight Plunge Single Flute High Production 1/4 Dia x 1 Inch x 1/4 Shank

#45110

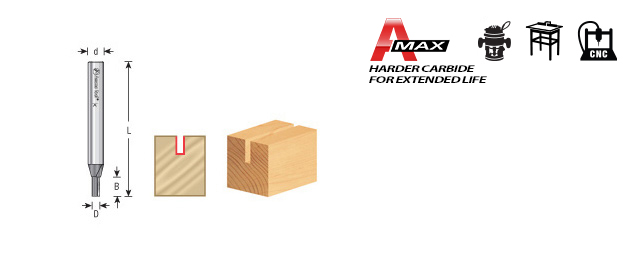

Specification
Diameter (D) 1/4
Cutting Height (B) 1
Shank (d) 1/4
Overall Length (L) 3-1/4
Flutes 1

In choosing a straight bit for any application, always select one with the shortest cutting edges and the shortest overall length that will reach the required cut depth. Excessive length intensifies deflection and vibration, which degrade cut quality and lead to tool breakage.

A single-flute bit should be used where cut speed is more important than cut finish. Making one cut per revolution is faster than making two or three. Improved chip clearance is possible with a single flute configuration. The result: fast cuts.

Specifically designed for air powered routers as used in the boat manufacturing industry.

AMAX Extended Life Features:

  • 200% longer life time even when working with abrasive materials
  • Superior geometric design
  • Advanced grinding technology that improves the carbides' resistance to wear
  • Super clean cuts

Carbide-Tipped-Straight-Plunge-Speed-Chart v5.pdf

Download PDF
