High Production Straight Plunge 1/4 Shank Router Bits

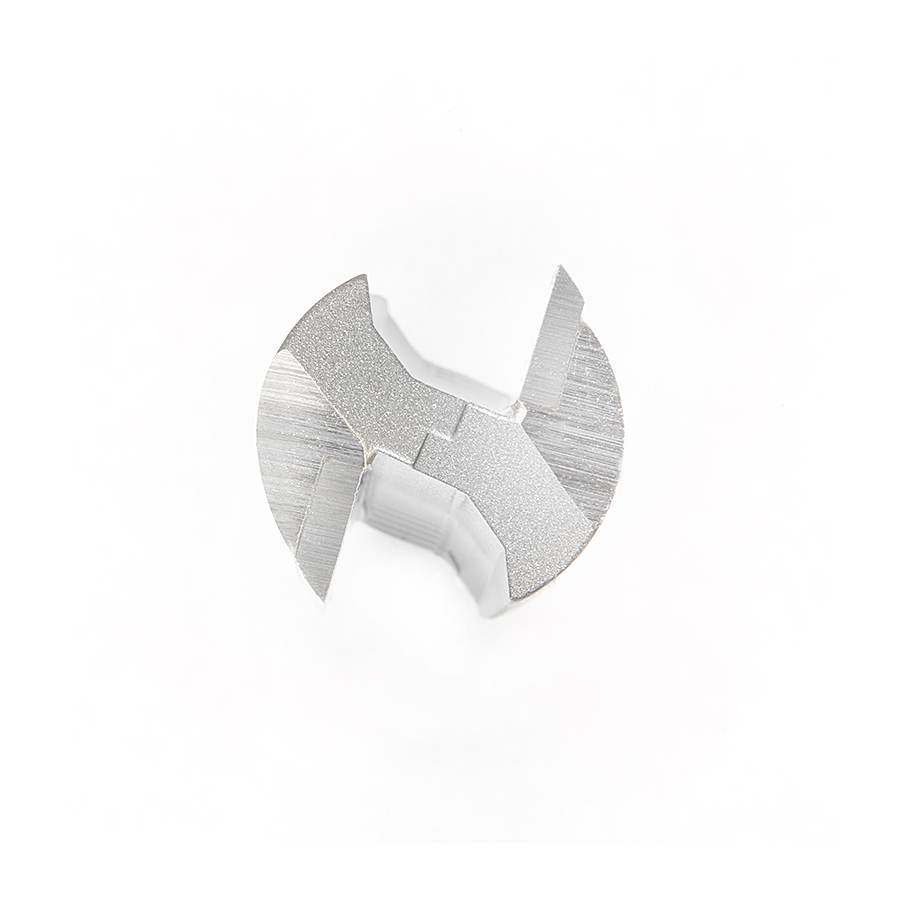

45181 Carbide Tipped Straight Plunge High Production / Mortising 3/4 Dia x 5/8 x 1/2 Inch Shank
#45181
| Diameter (D) | 3/4 |
|---|---|
| Cutting Height (B) | 5/8 |
| Shank (d) | 1/2 |
| Overall Length (L) | 2-1/4 |
| Flutes | 2 |
Use a two-flute bit where fine finish is paramount. Two flutes balance the bit, eliminating vibration that degrades the cut finish. Two cuts per revolution yield a smooth surface, but feed rate is slightly reduced.
Excellent for Cutting:
- Wood
- MDF
- Plywood
AMAX Extended Life Features:
- 200% longer life time even when working with abrasive materials
- Superior geometric design
- Advanced grinding technology that improves the carbides' resistance to wear
- Super clean cuts
Carbide-Tipped-Straight-Plunge-Speed-Chart v5.pdf
Download PDF
Product Questions
For the 45181 3/4" Carbide Tipped Straight Plunge Bit, whgat are the recommended feeds, speeds, and depth of cut for making pocket toolpaths in solid hardwood?
Question by: Aaron Payne on Jun 3, 2020, 5:31 PM
At 17,000 RPM a starting feed rate of 150 inches per minute at 0.250” depth of cut with a chip load of 0.005” per tooth. Watch your cut and adjust your feed and speed rate accordingly in 10% increments up or down to achieve your desired cut finish.
Answer by: Amana Admin on Jun 10, 2020, 8:27 PM
