High Production Straight Plunge 1/4 Shank Router Bits

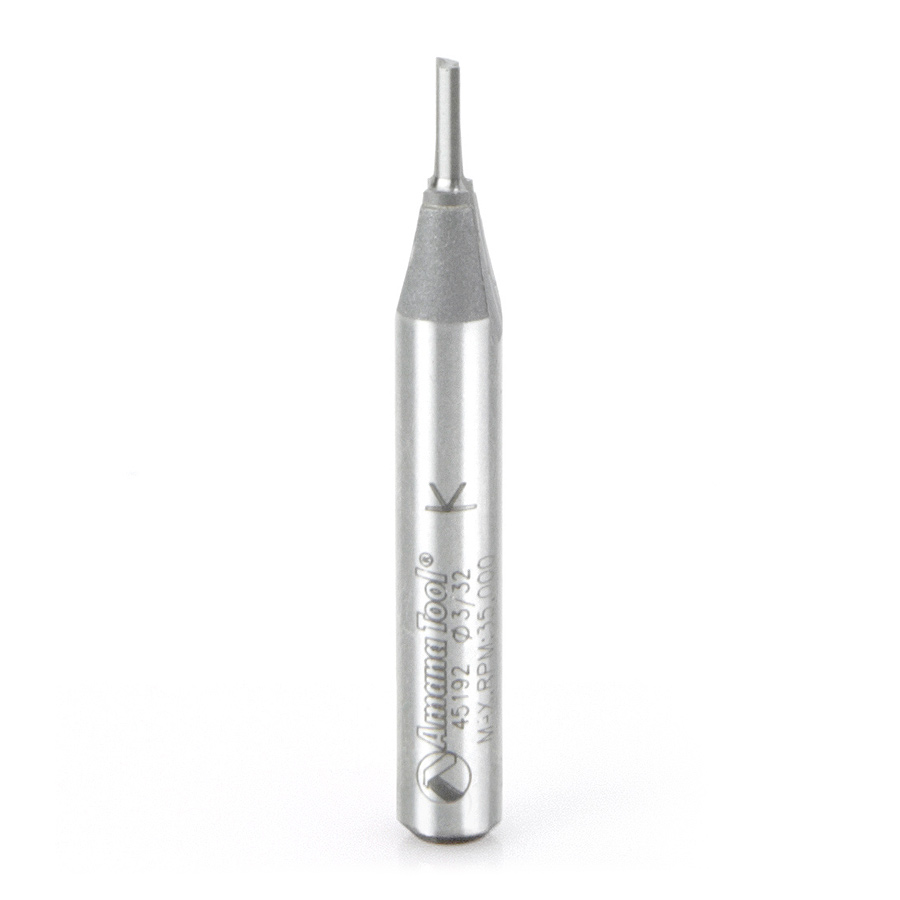

45192 Solid Carbide Cutting Edge Straight Plunge High Production 3/32 Dia x 1/4 x 1/4 Inch Shank
#45192
| Diameter (D) | 3/32 |
|---|---|
| Cutting Height (B) | 1/4 |
| Shank (d) | 1/4 |
| Overall Length (L) | 1-3/4 |
| Flutes | 2 |
Use a two-flute bit where fine finish is paramount. Two flutes balance the bit, eliminating vibration that degrades the cut finish. Two cuts per revolution yield a smooth surface, but feed rate is slightly reduced. 45192 features a solid carbide cutting edge.
Perfect for CNC work.
Solid carbide (brazed to steel shank).
Excellent for Cutting:
- Wood
- MDF
- Plywood
AMAX Extended Life Features:
- 200% longer life time even when working with abrasive materials
- Superior geometric design
- Advanced grinding technology that improves the carbides' resistance to wear
- Super clean cuts
Not guaranteed due to extremely small diameter.
Carbide-Tipped-Straight-Plunge-Speed-Chart v5.pdf
Download PDF
