High Production Straight Plunge 1/4 Shank Router Bits

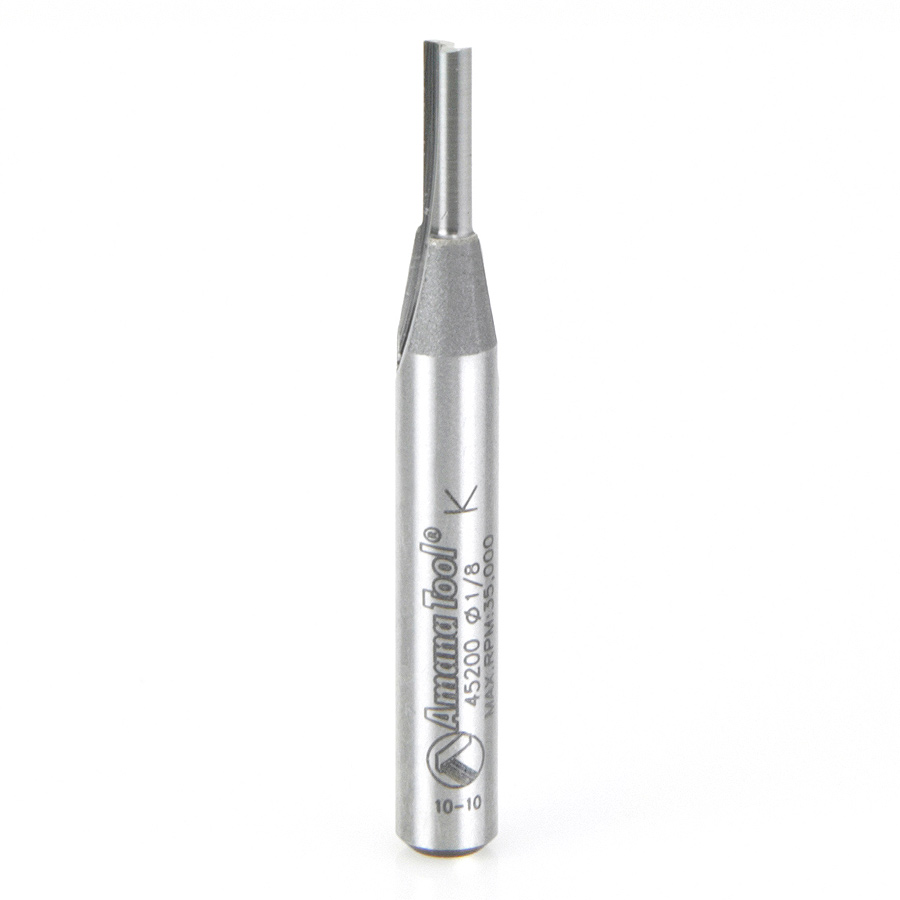

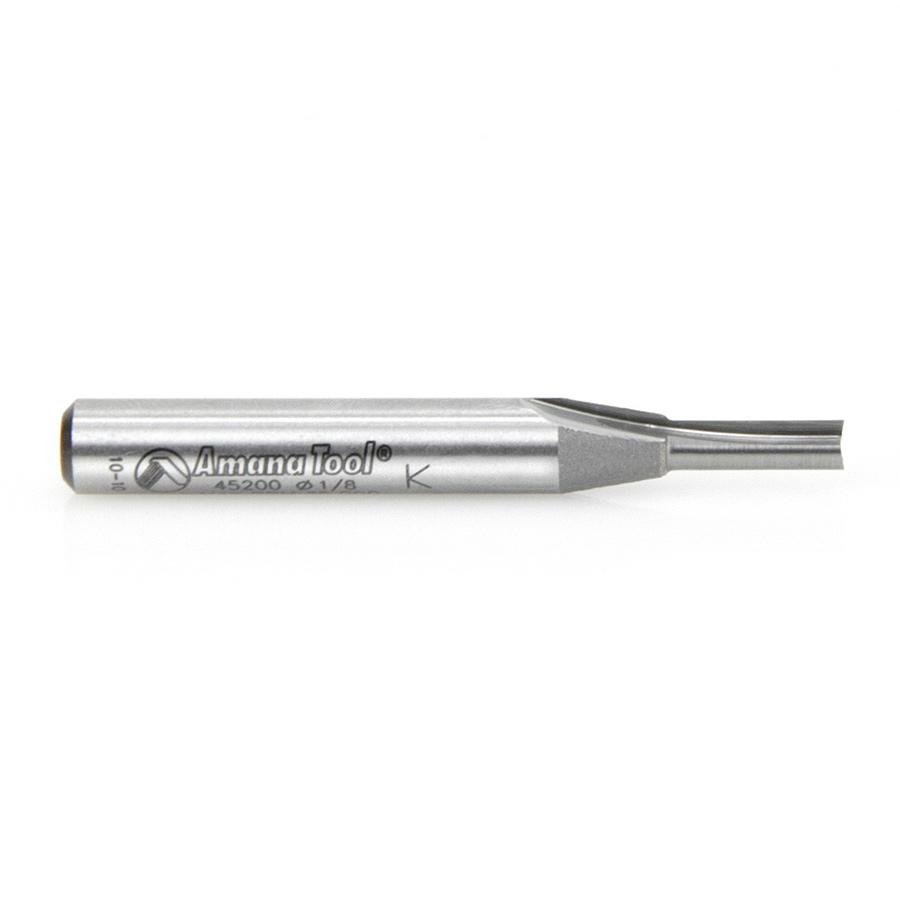

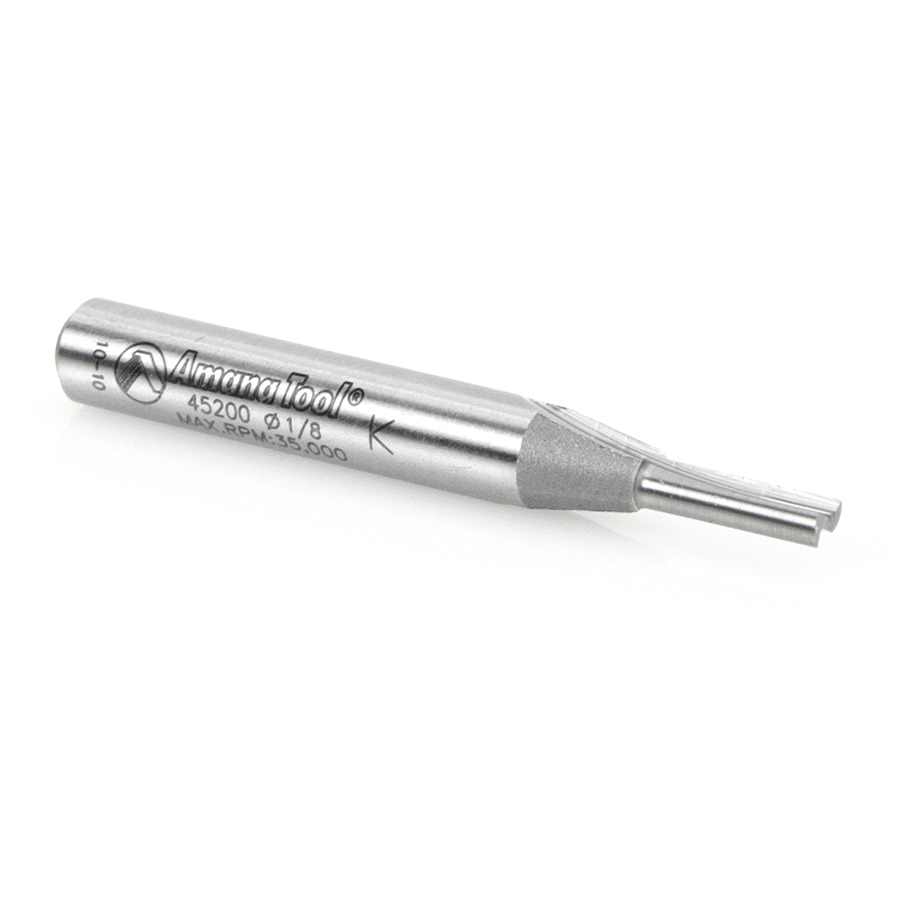

45200 Solid Carbide Cutting Edge Straight Plunge High Production 1/8 Dia x 7/16 x 1/4 Inch Shank
#45200
| Diameter (D) | 1/8 |
|---|---|
| Cutting Height (B) | 7/16 |
| Shank (d) | 1/4 |
| Overall Length (L) | 2 |
| Flutes | 2 |
Use a two-flute bit where fine finish is paramount. Two flutes balance the bit, eliminating vibration that degrades the cut finish. Two cuts per revolution yield a smooth surface, but feed rate is slightly reduced. 45200 features a solid carbide cutting edge.
Perfect for CNC work.
Solid carbide (brazed to steel shank).
Excellent for Cutting:
- Wood
- MDF
- Plywood
AMAX Extended Life Features:
- 200% longer life time even when working with abrasive materials
- Superior geometric design
- Advanced grinding technology that improves the carbides' resistance to wear
- Super clean cuts
Not guaranteed due to extremely small diameter.
Fusion 360 compatible tool file for 45200 available for download, click here.
Solid Carbide Cutting Edge and Carbide Tipped Straight Plunge Speed and Feed Chart
Download PDF
Carbide-Tipped-Straight-Plunge-Speed-Chart v5.pdf
Download PDF
Product Questions
45200 need rpm and feed rate
Question by: alexander pavliani on Mar 30, 2017, 6:06 PM
Start at 17,000 RPM X 100” per minute feed rate. Your chip load is 0.0032” per tooth.
Answer by: Amana Tool Admin on Apr 4, 2017, 8:01 PM
