High Production Straight Plunge 1/2 Shank Router Bits

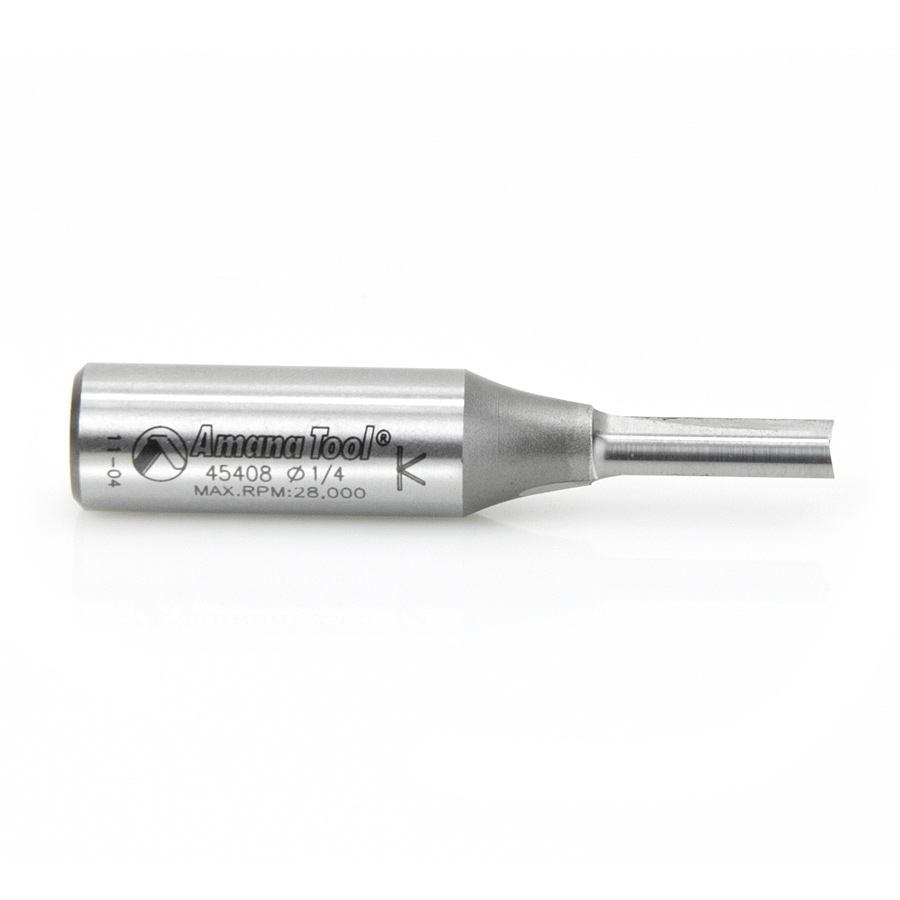

45408 Solid Carbide Cutting Edge Straight Plunge High Production 1/4 Dia x 3/4 x 1/2 Inch Shank
#45408

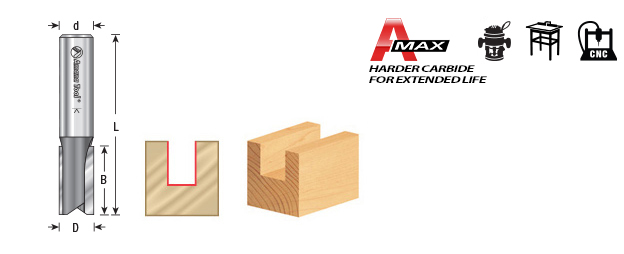

| Diameter (D) | 1/4 |
|---|---|
| Cutting Height (B) | 3/4 |
| Shank (d) | 1/2 |
| Overall Length (L) | 2-1/2 |
| Flutes | 2 |
Use a two-flute bit where fine finish is paramount. Two flutes balance the bit, eliminating vibration that degrades the cut finish. Two cuts per revolution yield a smooth surface, but feed rate is slightly reduced. 45408 features a solid carbide cutting edge.
Perfect for CNC work.
Solid carbide (brazed to steel shank).
Excellent for Cutting:
- Wood
- MDF
- Plywood
AMAX Extended Life Features:
- 200% longer life time even when working with abrasive materials
- Superior geometric design
- Advanced grinding technology that improves the carbides' resistance to wear
- Super clean cuts
Fusion 360 compatible tool files for 45408 available for download, click here.
Carbide-Tipped-Straight-Plunge-Speed-Chart
Download PDF
