High Production Straight Plunge 1/2 Shank Router Bits

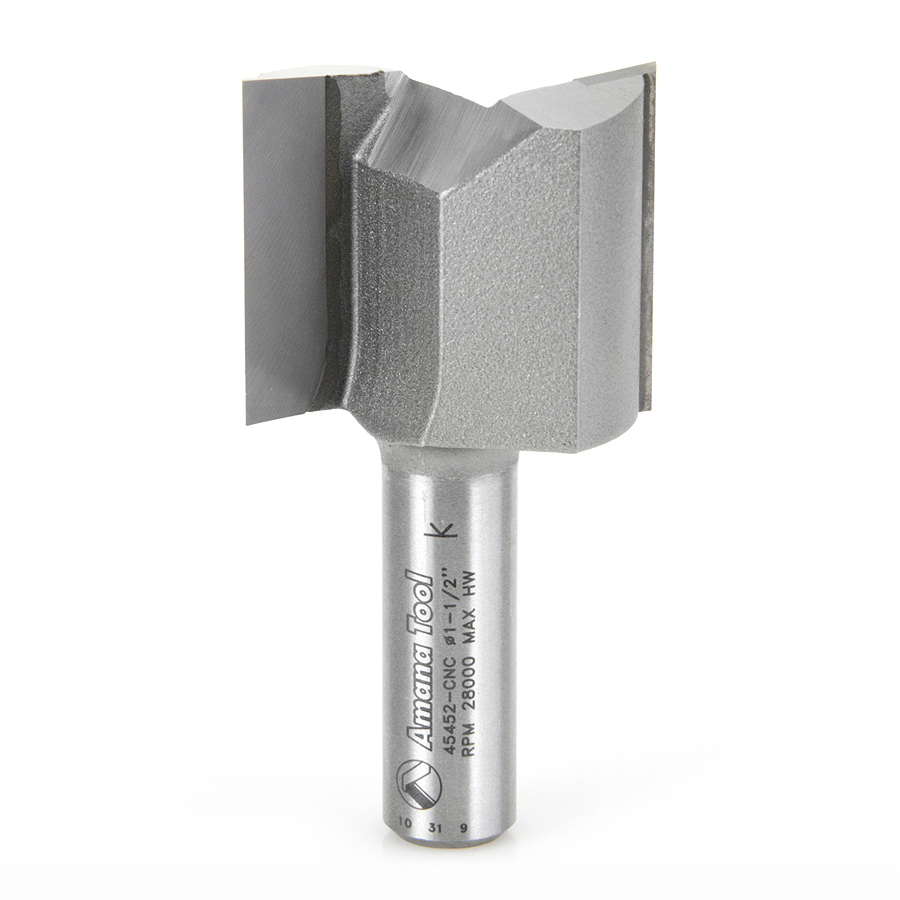

45452-CNC Carbide Tipped Straight Plunge High Production 1-1/2 Dia x 1-1/4 x 1/2 Inch Shank
#45452-CNC
| Diameter (D) | 1-1/2 |
|---|---|
| Cutting Height (B) | 1-1/4 |
| Shank (d) | 1/2 |
| Overall Length (L) | 2-7/8 |
| Max RPM | 18,000 |
| Flutes | 2 |
Use a two-flute bit where fine finish is paramount. Two flutes balance the bit, eliminating vibration that degrades the cut finish. Two cuts per revolution yield a smooth surface, but feed rate is slightly reduced.
Excellent for Cutting:
- Wood
- MDF
- Plywood
AMAX Extended Life Features:
- 200% longer life time even when working with abrasive materials
- Superior geometric design
- Advanced grinding technology that improves the carbides' resistance to wear
- Super clean cuts
Max RPM = 18,000
Warning: This tool has an open flute design (not anti-kickback) and is intended for high feed-rate CNC machine use only. Do not use in portable routers.
Vectric and Fusion 360 compatible tool files for 45452-CNC available for download, click here.
