High Production Straight Plunge Open Flute CNC Router Bits

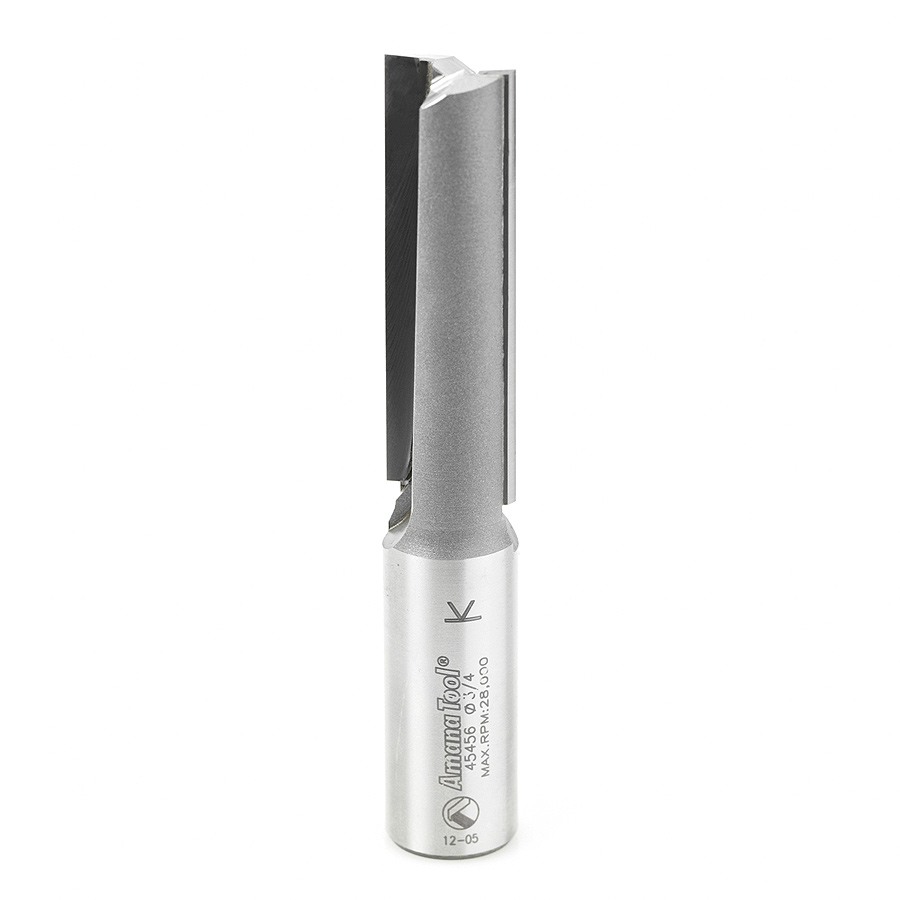

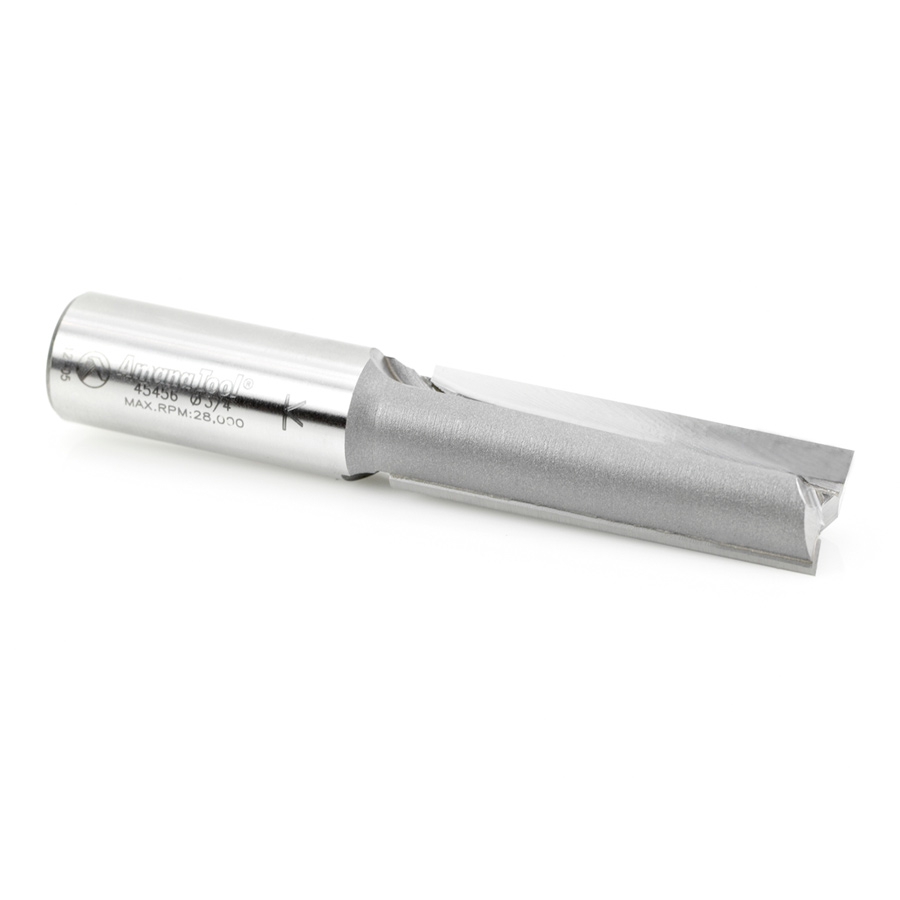

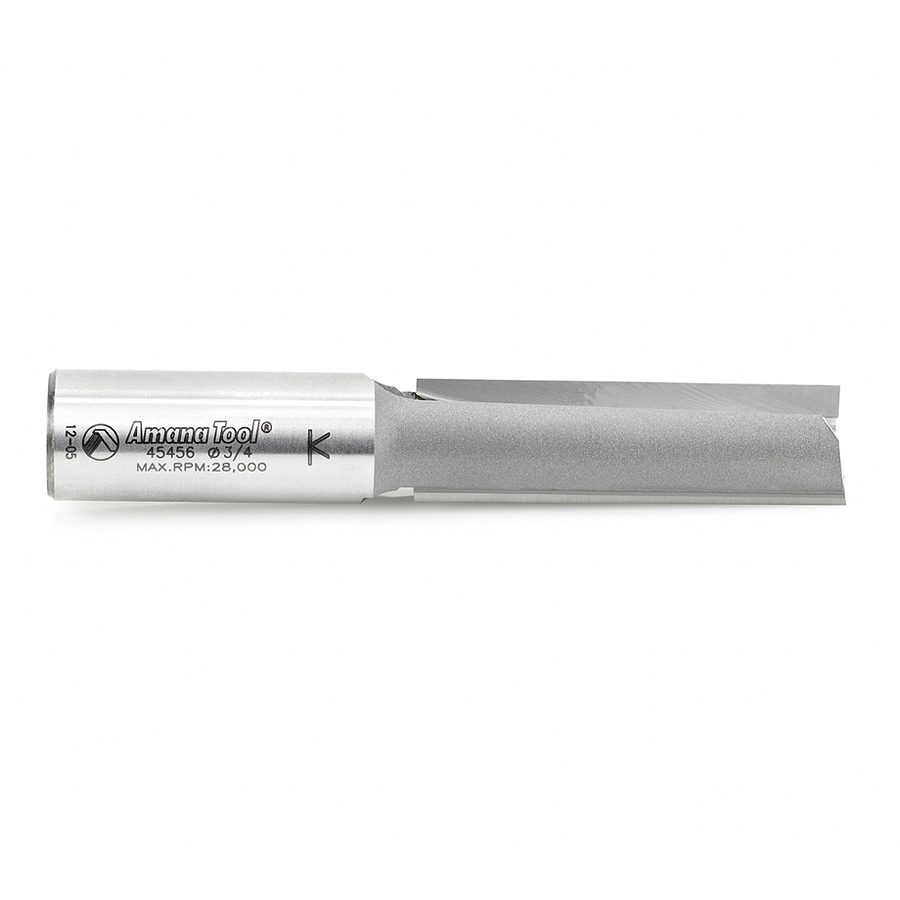

45456 CNC Carbide Tipped Straight Plunge High Production 3/4 Dia x 2-1/2 x 3/4 Shank R/H

#45456

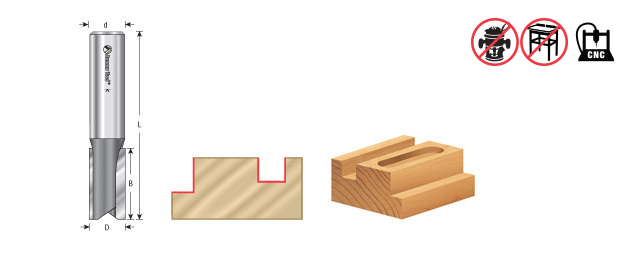

Specification
Diameter (D) 3/4
Cutting Height (B) 2-1/2
Shank (d) 3/4
Overall Length (L) 4-1/2
Type Right Hand
Flutes 2

For high-volume production work with a CNC router use one of these plunge-cutting straights. Long, 3/4" shanks extend the bit's reach enhancing its versatility. Open-flute design promotes rapid chip clearance, necessary for high feed rates. Right-hand configuration for standard clockwise rotation.

Note: Chipbreaker option (special order): Designed to cut chipboard and MDF at high automatic feed rates found on CNC machines. Each flute is ground so that the chipbreakers are staggered to each other, giving a straight cut. To order, add ‘CB’ suffix (ie: #45454-CB).

Product Questions

WHAT SPEED I HAVE TO USE THAT BIT 45456
Question by: alexander pavliani on Feb 21, 2017, 9:34 PM
In soft wood @18,000 RPM and ¾” deep at starting feed rate of 300” per minute.

In hard wood @18,000 RPM and ¾” deep at starting feed rate of 145” per minute.
Answer by: Amana Tool Admin on Feb 24, 2017, 6:36 PM

Question on 45456 CNC Carbide Tipped Straight Plunge High Production 3/4 Dia x 2-1/2 x 3/4 Shank R/H
