High Production Straight Plunge Open Flute CNC Router Bits

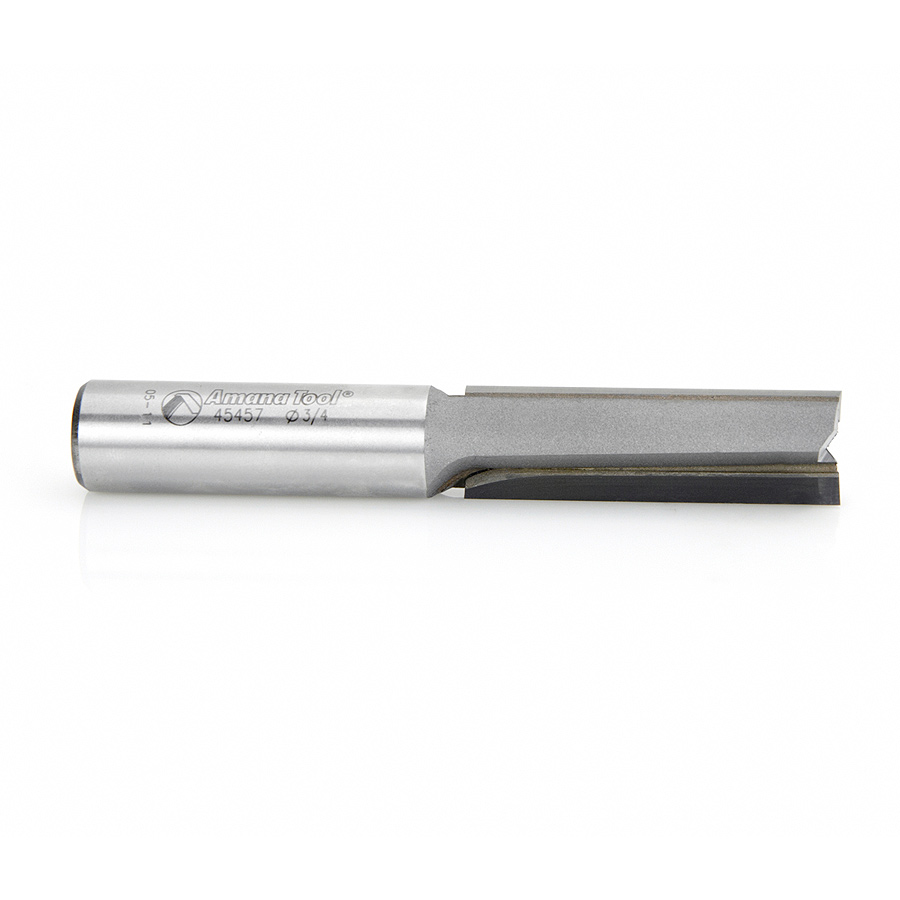

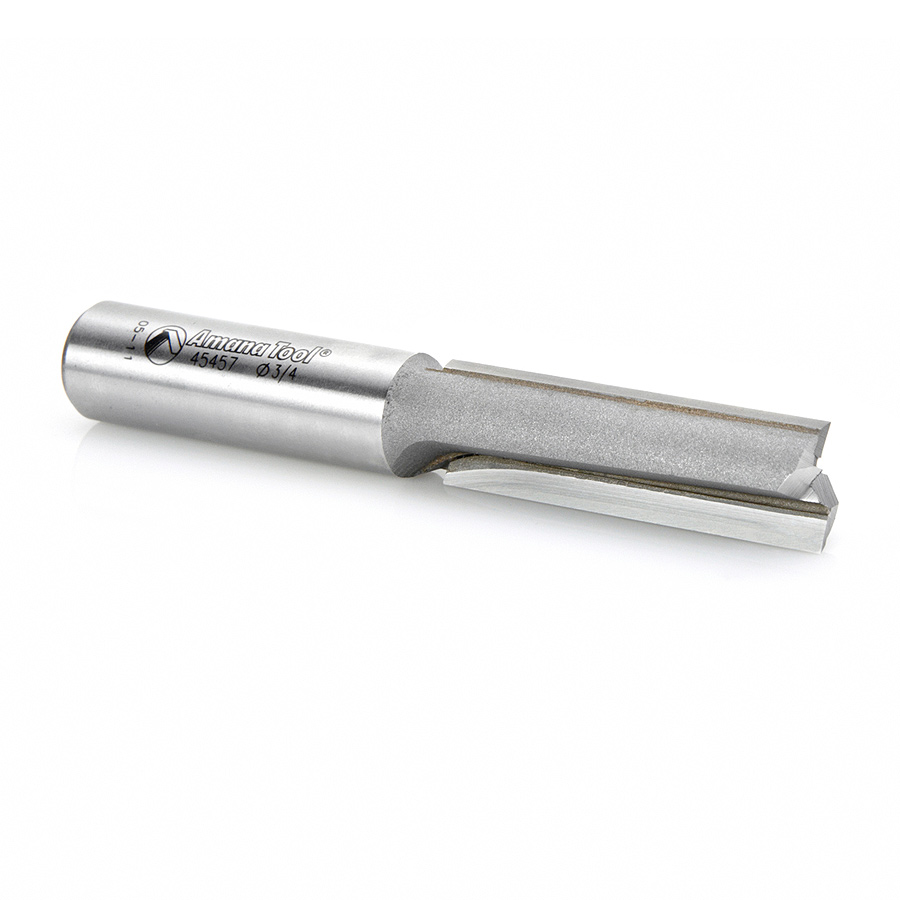

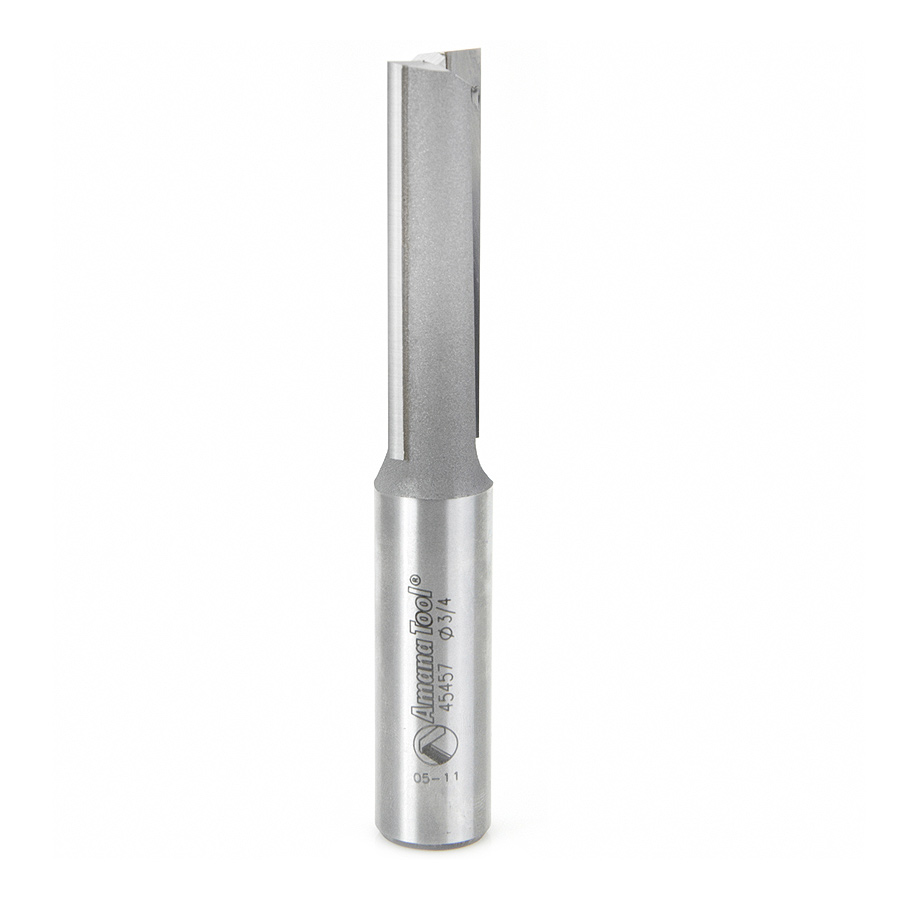

45457 CNC Carbide Tipped Straight Plunge High Production 3/4 Dia x 2-1/2 x 3/4 Shank L/H
#45457

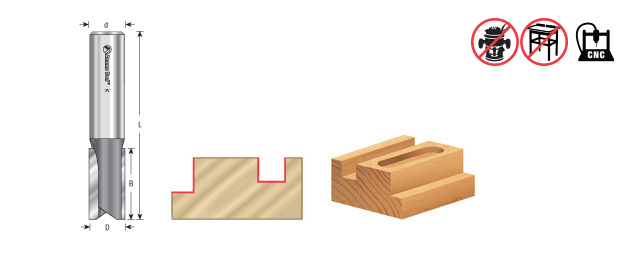

| Diameter (D) | 3/4 |
|---|---|
| Cutting Height (B) | 2-1/2 |
| Shank (d) | 3/4 |
| Overall Length (L) | 5 |
| Type | Left Hand |
| Flutes | 2 |
For high-volume production work with a CNC router use one of these plunge-cutting straights. Long, 3/4" shanks extend the bit's reach enhancing its versatility. Open-flute design promotes rapid chip clearance, necessary for high feed rates. Left-hand configuration for counter-clockwise rotation "Topmaster" machines.
Note: Chipbreaker option (special order): Designed to cut chipboard and MDF at high automatic feed rates found on CNC machines. Each flute is ground so that the chipbreakers are staggered to each other, giving a straight cut. To order, add ‘CB’ suffix (ie: #45454-CB).
