Flush Trim Plunge Template Router Bits with Upper Ball Bearing

45475-5 5-Pack Carbide Tipped Flush Trim Plunge Template 3/8 Dia x 1/2 x 1/4 Inch Shank with 2 Upper Ball Bearings

#45475-5

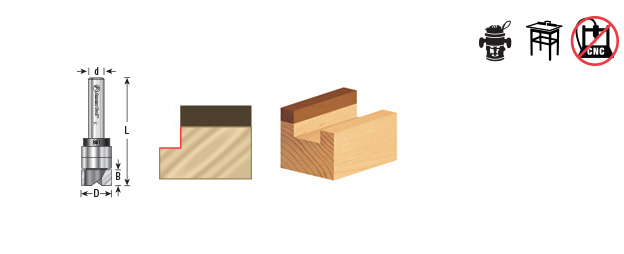

Specification
Diameter (D) 3/8
Cutting Height (B) 1/2
Shank (d) 1/4
Overall Length (L) 2
Description 5 Pack
Replacement Collar 47724
Replacement Bearing 47751 (requires 2)
Flutes 2

This bit is essentially a plunge-cutting straight with a shank-mounted ball-bearing pilot. Versatile, useful for template/pattern routing of parts, joints, internal cuts and can be used in handheld and table-mounted routers. The template is attached to the workpiece, and the pilot bearing rides along its edge as the cutting edges rout the workpiece, forming an exact duplicate of the template. With a handheld router, the pattern is on top of the work; with a table-mounted router, the pattern is underneath the work. Double Bearing.

Tool No.Bearing(s)
47751 (2)
