Carbide Tipped Spoilboard Surfacing, Rabbeting, Flycutter, Slab Leveler, Bed Skimming, Surface Planer & Flattening Router Bit

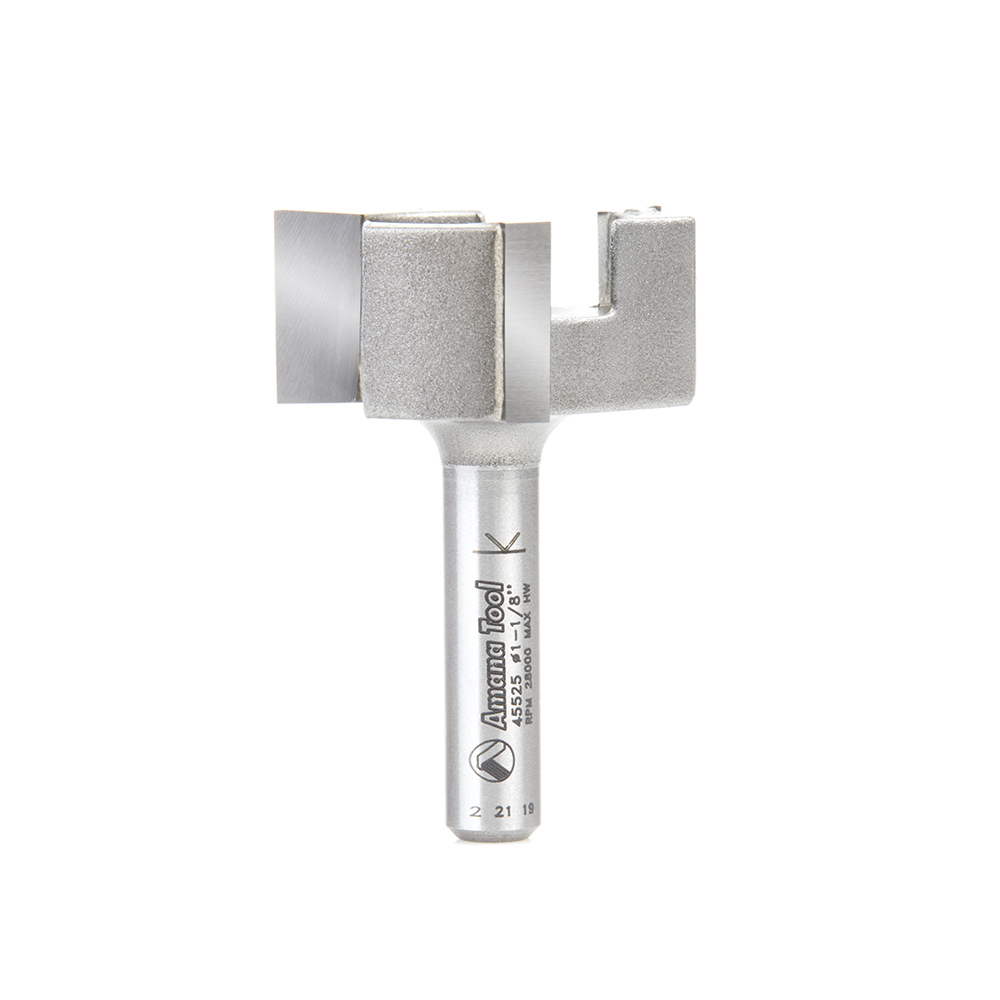

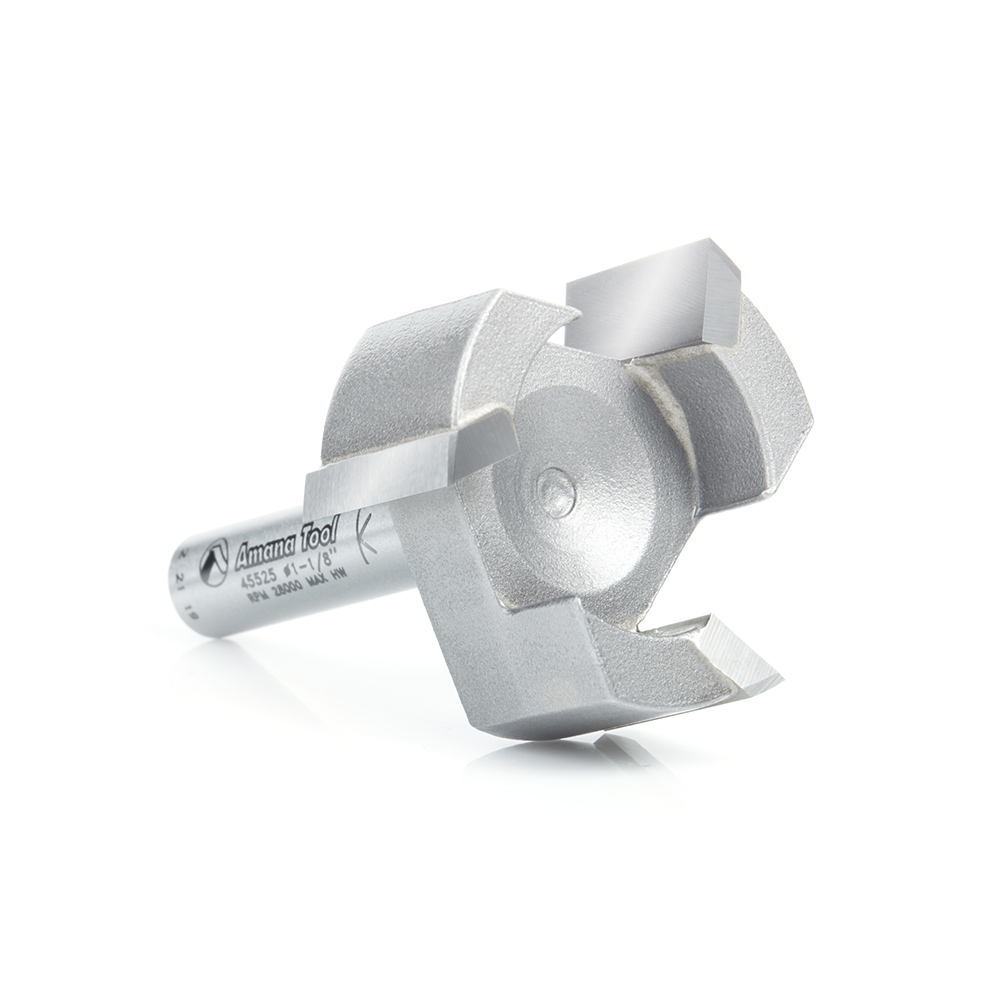

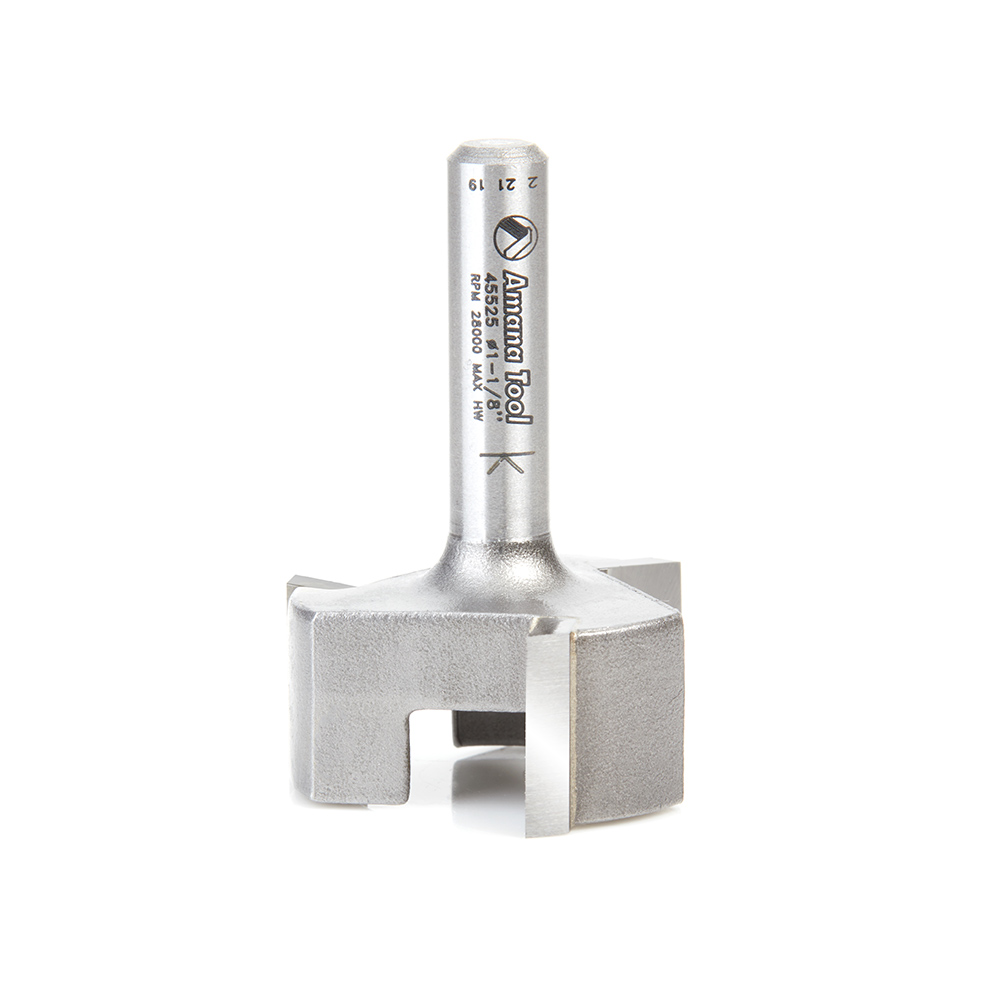

45525 Carbide Tipped Spoilboard Surfacing, Rabbeting, Flycutter, Slab Leveler, Surface Planer & Flattening 1-1/8 Dia x 1/2 x 1/4 Inch Shank Router Bit

#45525

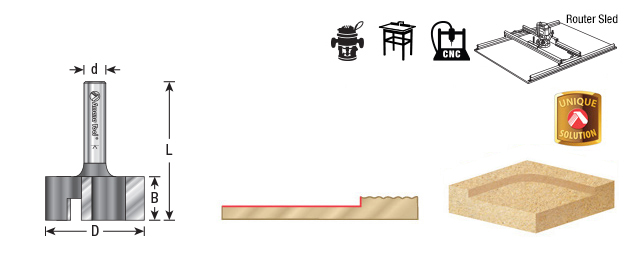

Specification
(D) Diameter1-1/8
(B) Cutting Height1/2
(d) Shank1/4
Overall Length (L)1-13/16
Max RPM28,000

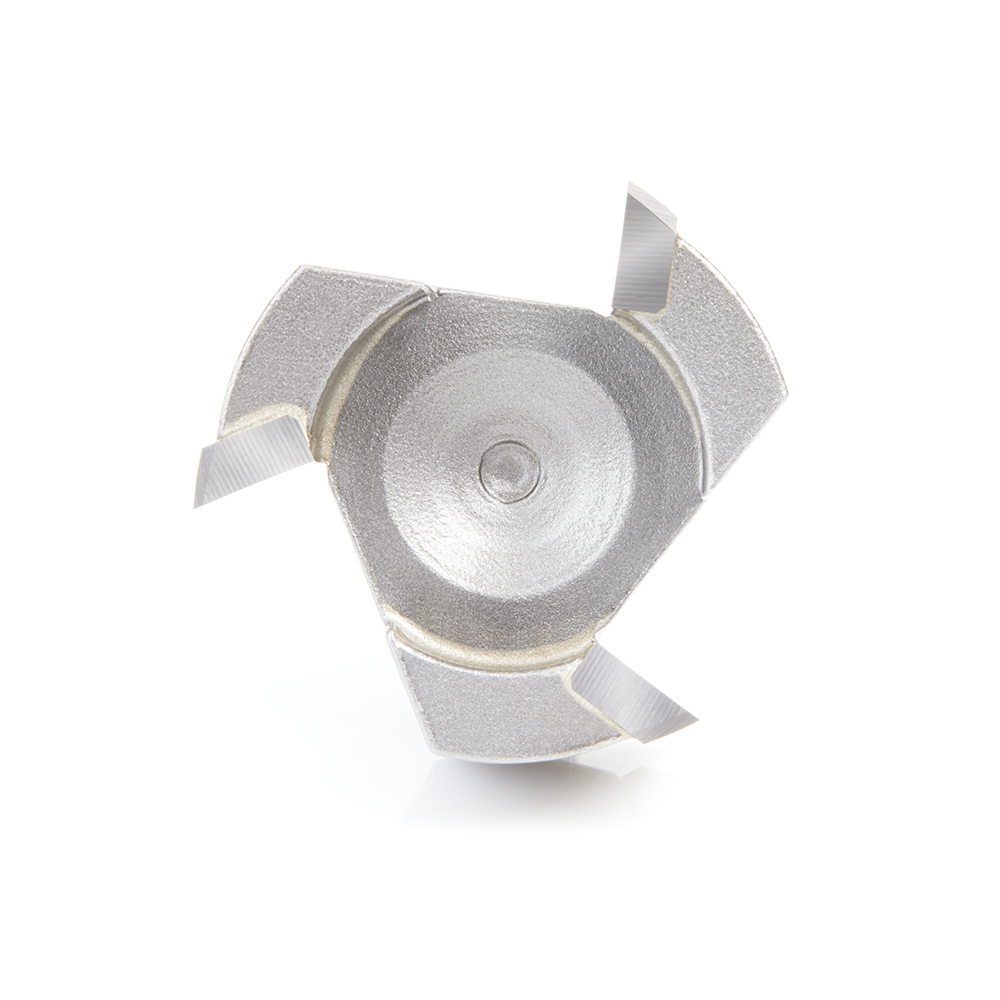

Flutes3

Carbide tipped spoilboard surfacing & rabbeting router bit great for cutting tight corners and surface planing.

Also suitable for router sled machines, Make sure that your router sled is fully stable and squared.

Perfect for:

  • Resurfacing spoilboards using CNC
  • Planing large glued up panels using CNC
  • Surfacing and finishing wood using timber slab machines
  • Rabbeting or slotting

Designed for planing & rabbeting the following materials:

  • MDF
  • Fiberboard
  • HDF/LDF
  • Balsa Core
  • Plastic/Acrylic**
  • Chipboard
  • Hardwood/Softwood

**Use lower CNC spindle RPM and adjusted feed-rate to prevent Melting and adhesion of the acrylic material to the tool.

Featuring:

  • Exclusive carbide grade for highest quality of cut
  • Maximum cutting efficiency
  • Faster material removal process

Fusion Logo

Fusion 360 compatible tool file for 45525 available for download, click here.

Product Questions

Can this be added to the vertric tool database. Is there anywhere to get the setting - it isn’t surfacing cleanly for me.
Question by: Robin Davis on Mar 28, 2020, 9:13 AM
Thank you for your comments. We are in the process of adding these tools to the data base.
Answer by: Amana Admin on Apr 1, 2020, 2:54 PM

Question on 45525 Carbide Tipped Spoilboard Surfacing, Rabbeting, Flycutter, Slab Leveler, Surface Planer & Flattening 1-1/8 Dia x 1/2 x 1/4 Inch Shank Router Bit


Create Account or Login to ask a question

Spoilboard 3 & 4 Wing Carbide Tipped Router Bit Speed and Feed Chart

Download PDF
