Carbide Tipped Spoilboard Surfacing, Rabbeting, Flycutter, Slab Leveler, Bed Skimming, Surface Planer & Flattening Router Bit

45526 Carbide Tipped Spoilboard Surfacing, Rabbeting, Flycutter, Slab Leveler, Surface Planer & Flattening 1-1/2 Dia x 1/2 x 1/2 Inch Shank Router Bit

#45526

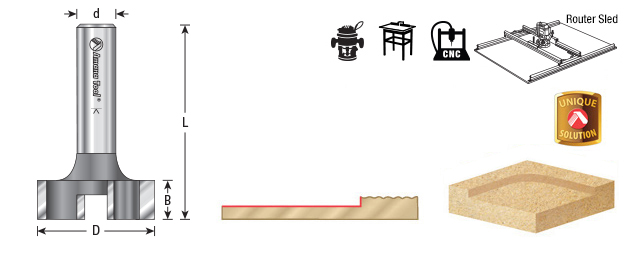

Specification
(D) Diameter 1-1/2
(B) Cutting Height 1/2
(d) Shank 1/2
Overall Length (L) 2-1/4
Max RPM 28,000
Flutes 4

Carbide tipped spoilboard surfacing & rabbeting router bit great for cutting tight corners and surface planing.

Also suitable for router sled machines, Make sure that your router sled is fully stable and squared.

Perfect for:

  • Resurfacing spoilboards using CNC
  • Planing large glued up panels using CNC
  • Surfacing and finishing wood using timber slab machines
  • Rabbeting or slotting

Designed for planing & rabbeting the following materials:

  • MDF
  • Fiberboard
  • HDF/LDF
  • Balsa Core
  • Plastic/Acrylic**
  • Chipboard
  • Hardwood/Softwood

**Use lower CNC spindle RPM and adjusted feed-rate to prevent Melting and adhesion of the acrylic material to the tool.

Featuring:

  • Exclusive carbide grade for highest quality of cut
  • Maximum cutting efficiency
  • Faster material removal process

Fusion Logo

Vectric and Fusion 360 tool files for 45526 available for download, click here.

Spoilboard 2, 3 & 4 Wing Carbide Tipped Router Bit Speed and Feed Chart

Download PDF
