"Zero-Point" 90° Engraving Router Bits for V-Grooving with Zirconium Nitride (ZrN) Coating

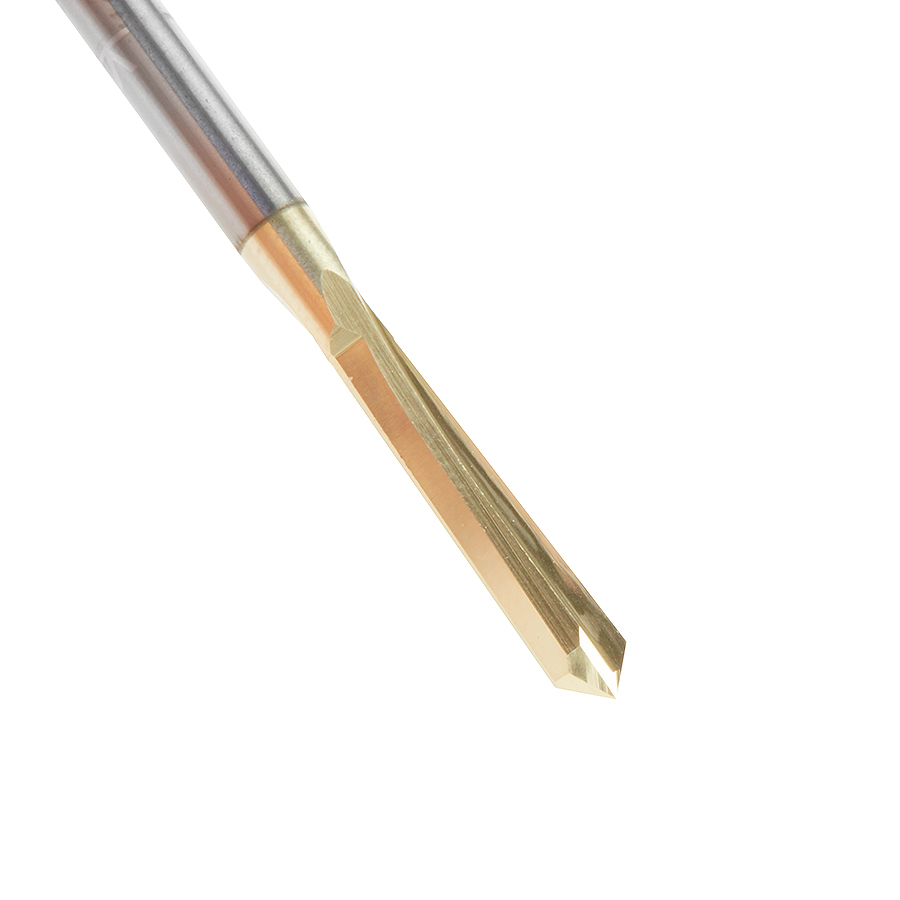

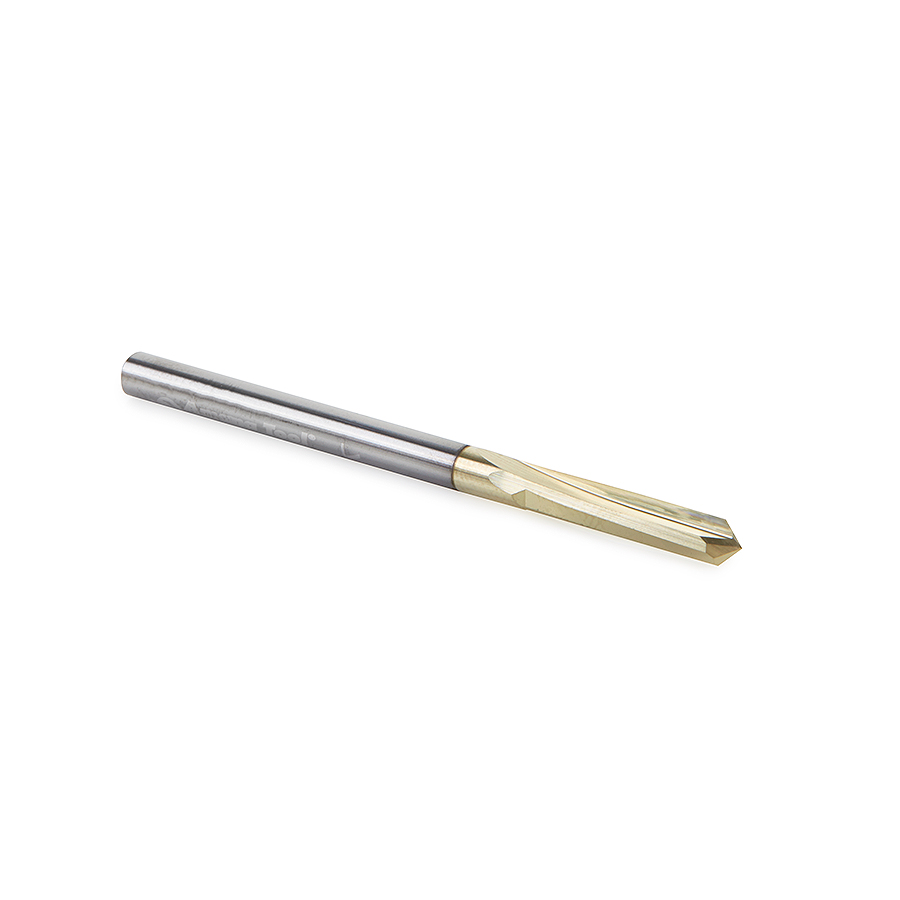

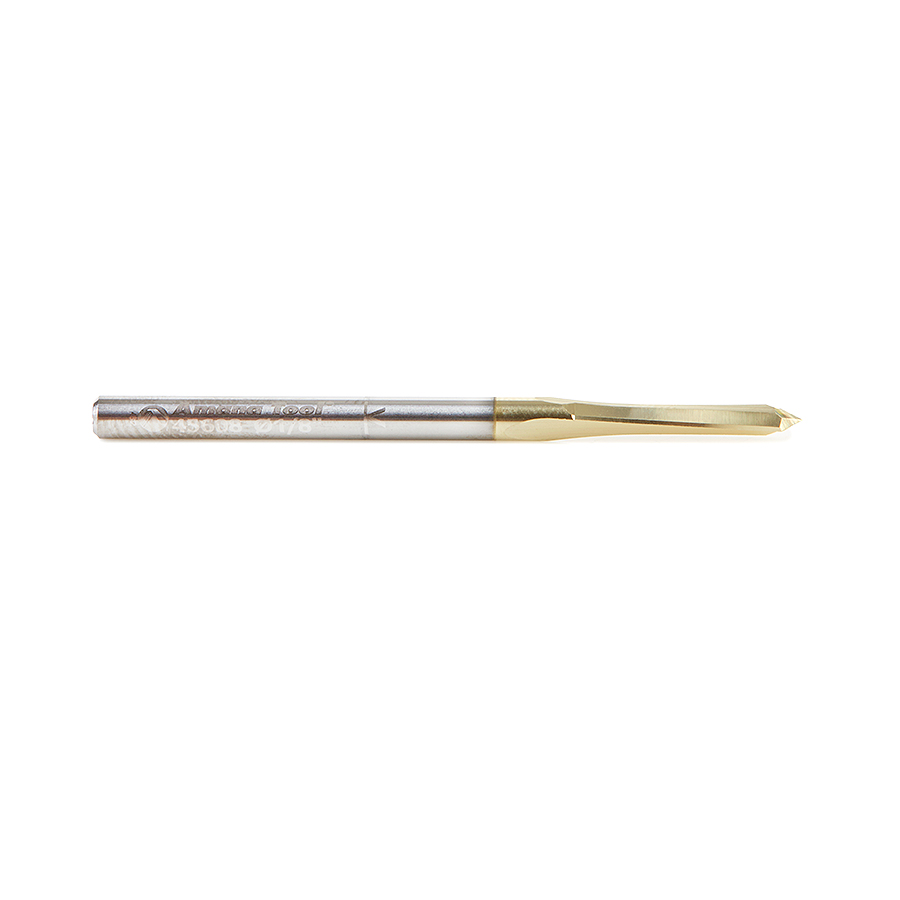

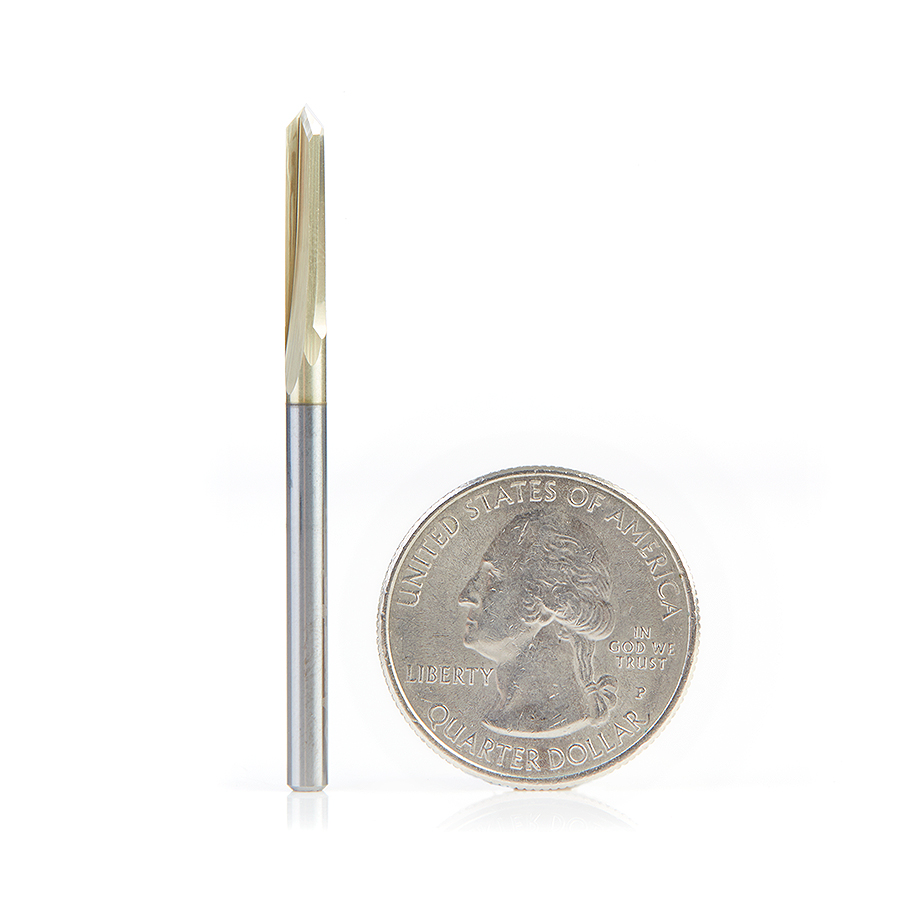

45608 "Zero-Point" 90 Degree V-Groove and Engraving 1/8 Dia x 1/16 x 1/8 Shank ZrN Coated Router Bit

#45608

Specification
(a°) Angle 90°
(D) Diameter 1/8
(B) Cutting Height 1/16
B1 5/8
(d) Shank 1/8
Overall Length (L) 2
Flutes 2
Chip Load 0.003" - 0.006"
Designed for beveling or V-Grooving 90° the following materials:

  • Acrylonitrile-Butadiene-Styrene (ABS)
  • Aluminum, Brass, Bronze, Copper, Gold & Silver
  • Aluminum 5052
  • Composites
  • Fomex® with Aluminum Face
  • Hard Plastics
  • Hardwood
  • Laminated Chipboard/Plywood
  • MDF
  • Non-Ferrous Metals
  • Polycarbonate (Lexan™)
  • Solid Surfaces (Corian®
    Formica® ect)
  • Soft Plastics
  • Softwood
  • Veneer

Recommendation: Use the slowest suggested feed rates and the shortest bits necessary for cutting and routing Lexan™.

Benefits of ZrN Coating
  • Creates a harder and tougher cutting edge allows for a prolonged cutting edge life and helps to prevent the build-up of material in the flutes while cutting
  • High resistance to wear
  • Extended tool life
  • Less friction & heat buildup
  • High resistance to wear

45º, 60º & 90º Engraving CNC with ZrN Coating for V Grooving Speed and Feed Chart

Download PDF
