V-Groove Router Bits

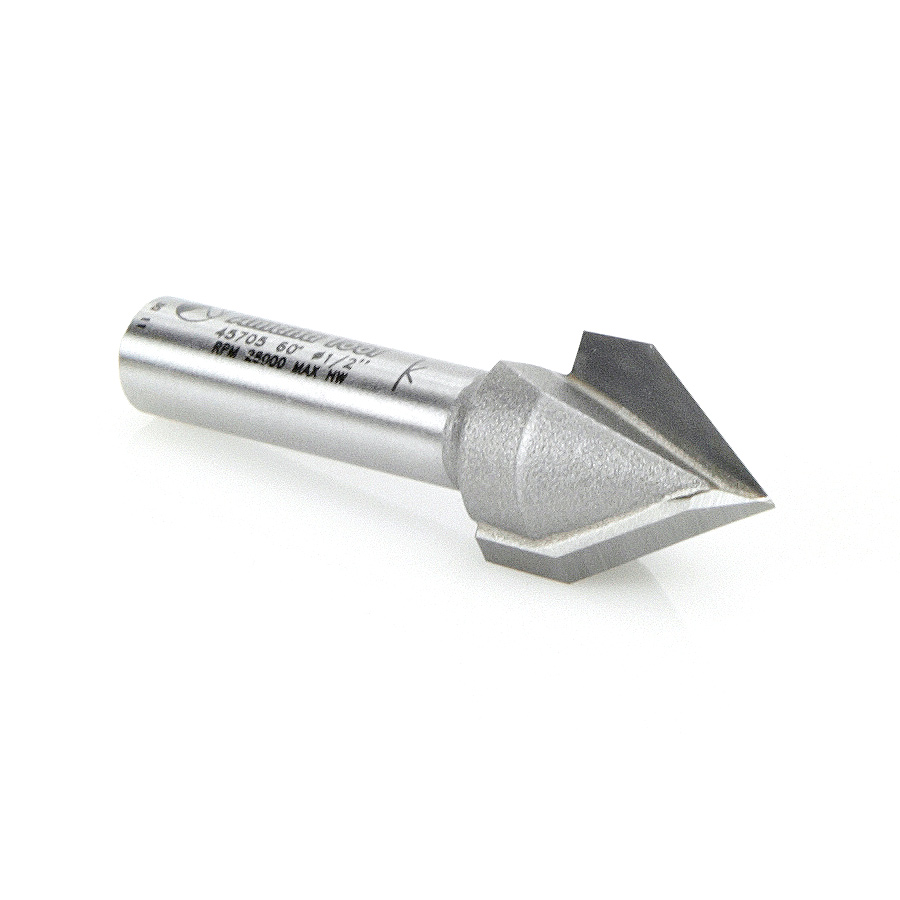

45705 Carbide Tipped V-Groove 60 Deg x 1/2 Dia x 7/16 x 1/4 Inch Shank
#45705
| Angle (a°) | 60° |
|---|---|
| Diameter (D) | 1/2 |
| Cutting Height (B) | 7/16 |
| B1 | 5/8 |
| Shank (d) | 1/4 |
| Overall Length (L) | 1-3/4 |
| Flutes | 2 |
Cut decorative V-Grooves and lettering on signs with these V-Groove bits. Use with an edge guide to chamfer and bevel edges. Can be used with handheld, table-mounted and CNC routers.
Excellent for cutting:
- 20lbs High Density Urethane
- Acrylic
- Composites
- Composite Decking
- Foam
- Laminate
- MDF/HDF
- Melamine
- Plywood
- PVC Plastic
- Sign Board
- Solid Surface
- Veneered Plywood
- Wood
- Xanita® Board
Vectric and Fusion 360 compatible tool files for 45705 available for download, click here.
Carbide Tipped V-Groove Speed and Feed Chart
Download PDF
