45756 Carbide Tipped V-Groove 120 Deg x 1-1/4 Dia x 23/64 x 1/4 Inch Shank

#45756

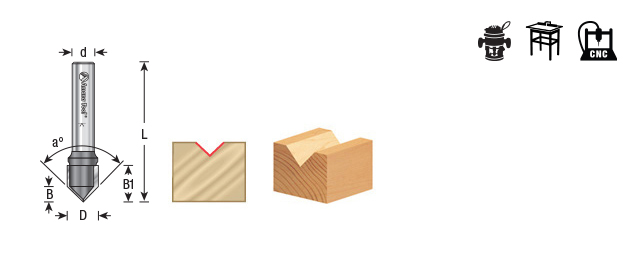

Specification
Angle (a°) 120°
Diameter (D) 1-1/4
Cutting Height (B) 23/64
B1 21/32
Shank (d) 1/4
Overall Length (L) 1-59/64
Flutes 2

Cut decorative V-Grooves and lettering on signs with these V-Groove bits. Use with an edge guide to chamfer and bevel edges. Can be used with handheld, table-mounted and CNC routers.

Excellent for cutting:

  • 20lbs High Density Urethane
  • Acrylic
  • Composites
  • Composite Decking
  • Foam
  • Laminate
  • MDF/HDF
  • Melamine
  • Plywood
  • PVC Plastic
  • Sign Board
  • Solid Surface
  • Veneered Plywood
  • Wood
  • Xanita® Board

Fusion Logo

Vectric and Fusion 360 compatible tool files for 45756 available for download, click here.

45756 DXF

File Size : 1.65 MB
Create account or Login to download

45756 PDF

File Size : 129.21 KB
Create account or Login to download

Carbide Tipped V-Groove Speed and Feed Chart

Download PDF
