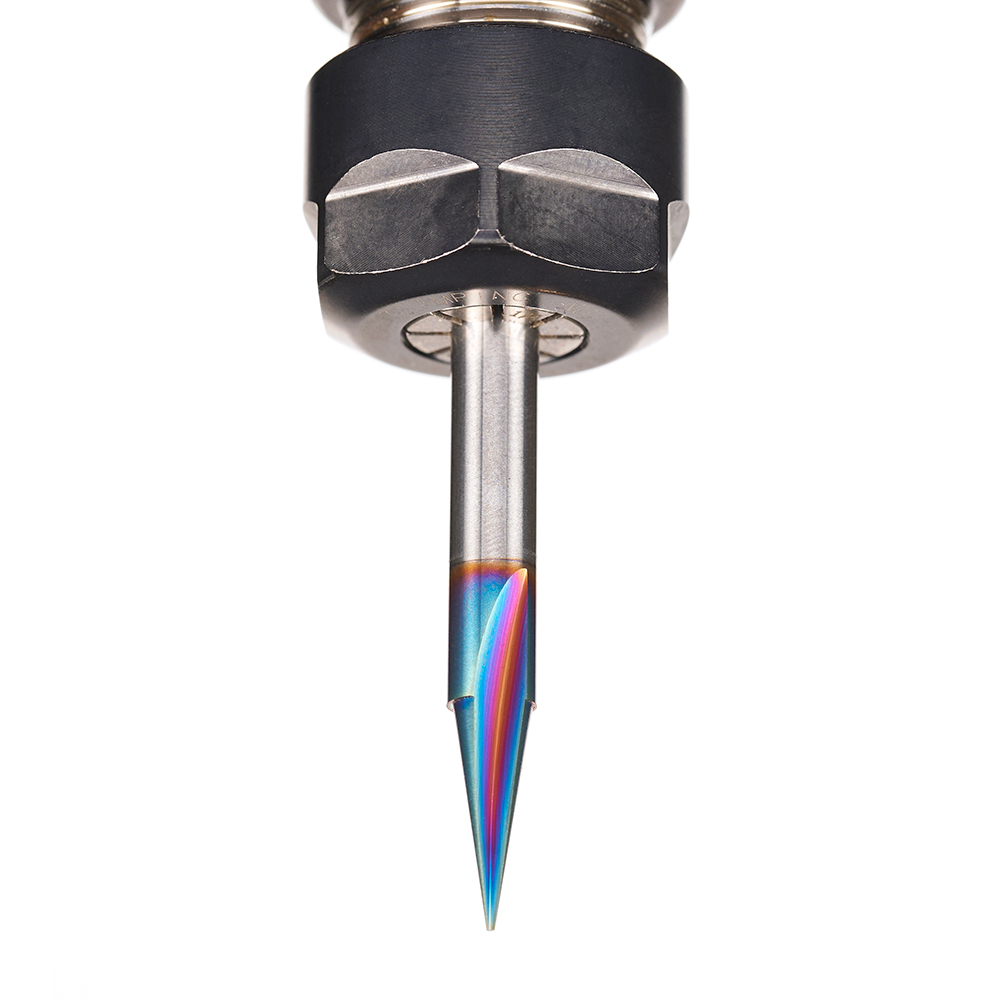

45783-K Solid Carbide Carving Liner 18 Deg x 1/4 Dia x 5/8 x 1/4 Inch Shank x 1-Flute Spektra™ Extreme Tool Life Coated Router Bit

#45783-K

Specification
Diameter (D)1/4
Angle (a°)18°
Cutting Height (B)5/8
Shank (d)1/4
Overall Length (L)2-1/2
Flutes1

Solid Carbide Carving Liner Spektra™ Extreme Tool Life Coated Router Bits

Please or

For extra-fine carving and lettering details.

Our Spektra™ bits feature a nACo® nanocomposite coating with an extreme nanohardness and heat resistance. With a brilliant distinctively-tinted coloring nACo provides additional improvements in four critical aspects of router tooling.

  • nACo coating is a micro-thin ceramic coating which enables the tool's cutting edge to retain crucial sharpness and lubricity. This provides longevity and produces cutting results of the highest quality.
  • Coating prevents high heat and oxidation which is detrimental to cutting tool performance.
  • Multi-colored hues, while attractive, will dissipate upon use and yet coating will remain fully effective.
  • nACo offers approximately 4,500 Vickers for impressive solid hardness on cutting areas of the tool, for an increase up to 2.5 times compared to uncoated bits.

Note: Blue based color dissipates immediately upon use. nACo® nanocomposite coating will not wear off.

Excellent for Carving:

  • MDF/Laminates
  • Plywood
  • Wood

Vectric compatible tool file for 45783-K available for download, click here.
