Solid Carbide Carving Liner Router Bits

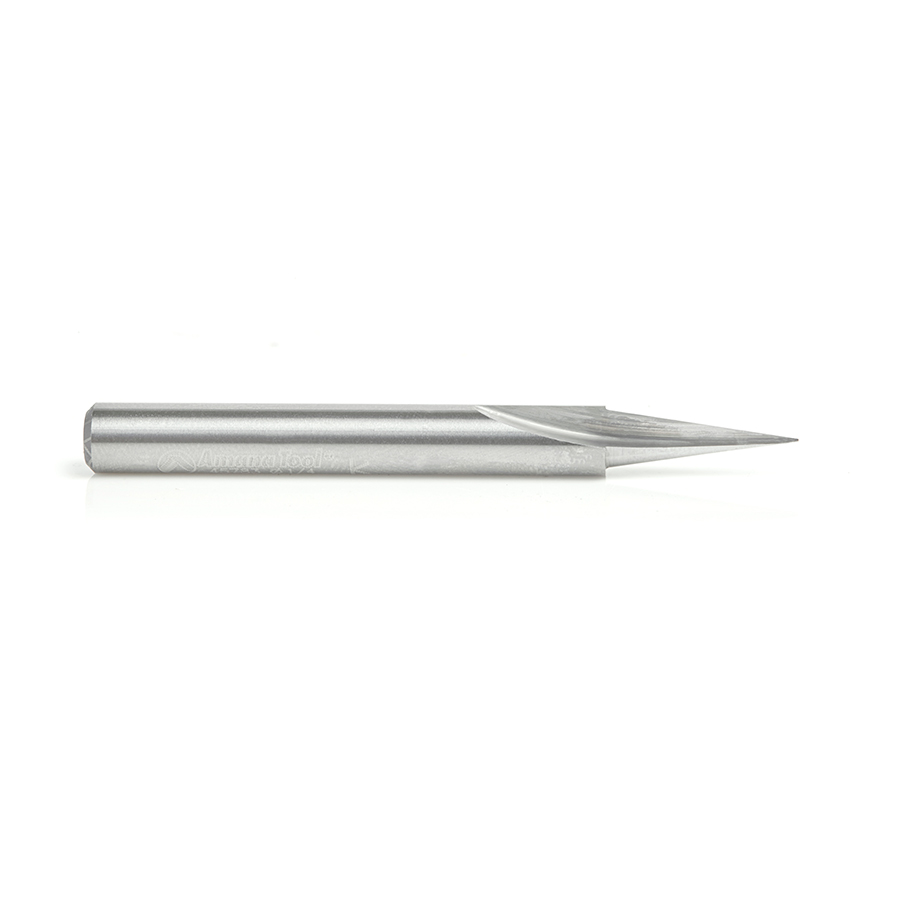

45783 Solid Carbide Carving Liner 18 Deg x 1/4 Dia x 5/8 x 1/4 Inch Shank x 1-Flute

#45783

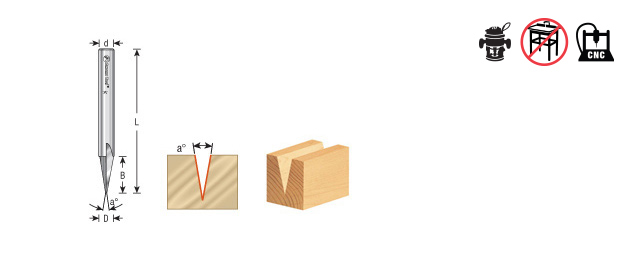

Specification
Angle (a°)18°
Diameter (D)1/4
Cutting Height (B)5/8
Shank (d)1/4
Overall Length (L)2-1/2
Flutes1

For extra-fine carving and lettering details.

Excellent for Carving:

  • Aluminum
  • Brass
  • MDF/Laminates
  • Plywood
  • Silver
  • Wood

Fusion Logo

Vectric and Fusion 360 compatible tool files for 45783 available for download, click here.

45783 DXF

File Size : 1.66 MB
Create account or Login to download

45783 PDF

File Size : 129.71 KB
Create account or Login to download

Product Questions

Do you have a feed rate chart for the carving liner bit #45783?
Question by: Spencer Haag on Jun 6, 2017, 12:31 PM
We are constantly updating our web site for feed and speed rates. If it is not available online please contact us directly at 1-800-445-0077 and ask for technical assistance.
Answer by: Amana Admin on Jun 28, 2017, 2:44 PM
We are constantly updating our web site for feed and speed rates. If it is not available online please contact us directly at 1-800-445-0077 and ask for technical assistance.
Answer by: Amana Admin on Jun 28, 2017, 2:44 PM
hi my name is Douglas Z and am deaf. anyway what is the number for Feed Rate and pass depth for pine wood and hardwood (most) thanks and how to add this bit to the Vcarve Pro Tool Database like which do I put that in Tool Database like Engraving or V bit ?? (for #1540 and SC50 ) thank u very much
Question by: Douglas Zenger on Aug 23, 2017, 8:16 PM
Please put the part number of the tool in the search box. When the tool comes up, scroll down and click on the tab that says DXF File. You will have to sign in and then you will be able to down load the file.
Answer by: Amana Admin on Aug 29, 2017, 7:27 PM
Please put the part number of the tool in the search box. When the tool comes up, scroll down and click on the tab that says DXF File. You will have to sign in and then you will be able to down load the file.
Answer by: Amana Admin on Aug 29, 2017, 7:27 PM

Question on 45783 Solid Carbide Carving Liner 18 Deg x 1/4 Dia x 5/8 x 1/4 Inch Shank x 1-Flute


Create Account or Login to ask a question

Solid Carbide Carving Liner Speed and Feed Chart

Download PDF
