Core Box Extra Deep Router Bits

45949 Carbide Tipped Core Box 1-1/8 Radius x 2-1/4 Dia x 1-1/4 x 1/2 Inch Shank Extra Deep

#45949

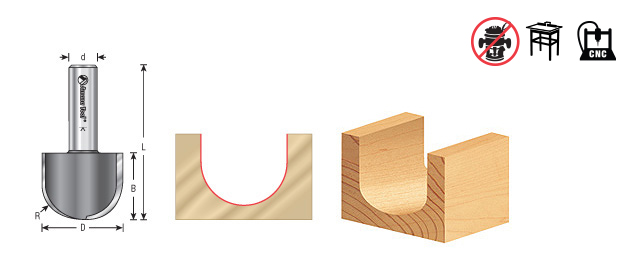

Specification
Diameter (D) 2-1/4
Radius (R) 1-1/8
Cutting Height (B) 1-1/4
Shank (d) 1/2
Overall Length (L) 2-3/4
Max RPM 14,000
Flutes 2

Cut much deeper flutes than possible with a regular core box bit. Perfect for making flutes on CNC machines.

Excellent for cutting:

  • High Density Urethane (HDU Board)
  • Laminate
  • MDF
  • Softwood/Hardwood
  • Veneered Plywood

Maximum RPM 14,000.

Use in a table-mounted router. Not for use in a handheld router!

45949 DXF

File Size : 402.79 KB
Create account or Login to download

45949 PDF

File Size : 63.62 KB
Create account or Login to download

Carbide Tipped Core Box Speed and Feed Chart

Download PDF
