Bowl & Tray Router Bits

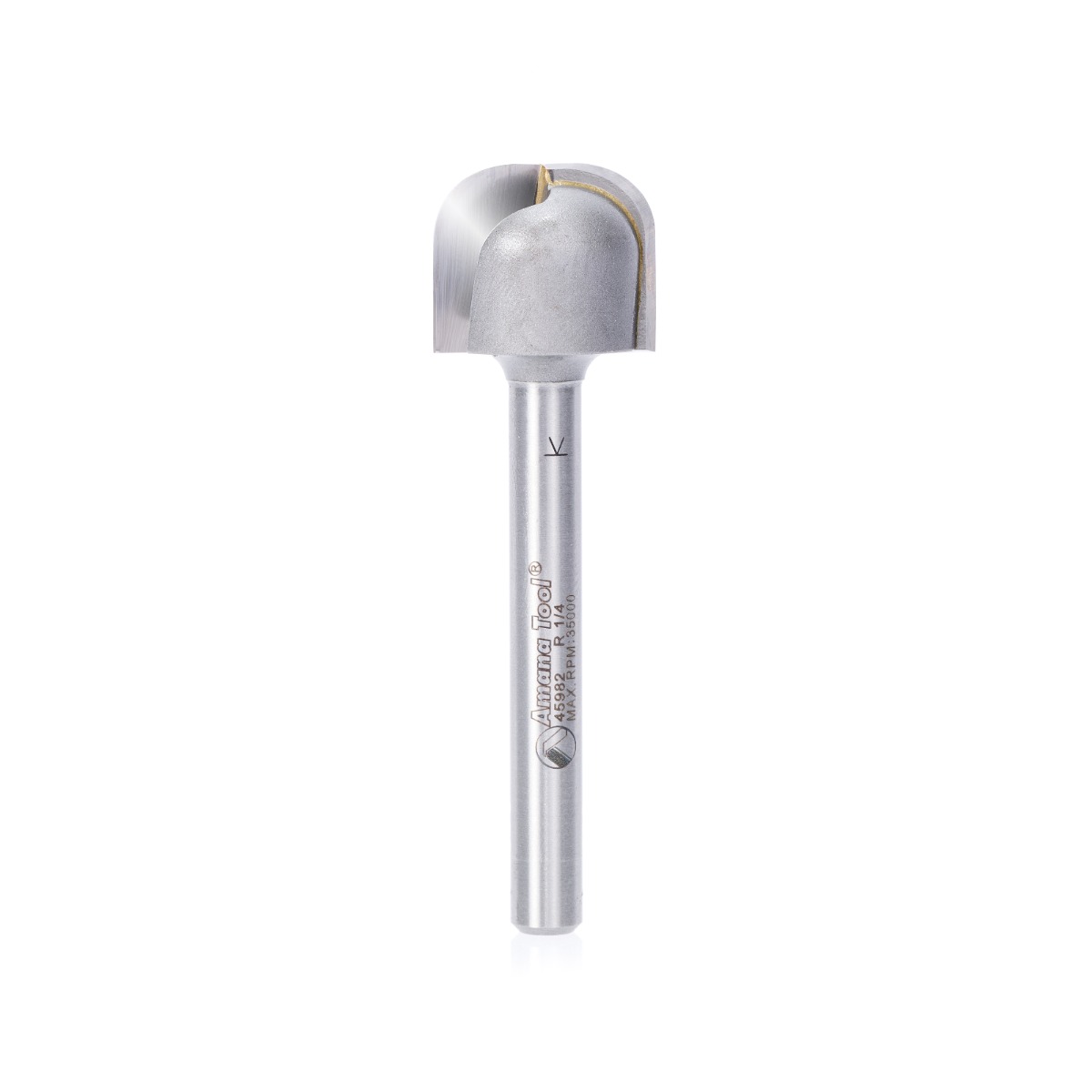

45982 Carbide Tipped Bowl & Tray 1/4 Radius x 3/4 Dia x 5/8 x 1/4 Inch Shank

#45982

Specification
Diameter (D)3/4
Radius (R)1/4
Cutting Height (B)5/8
Shank (d)1/4
Overall Length (L)2-5/8
Flutes2

For routing solid wood serving trays, flat dishes, shallow bowls, and similar objects, use this 3-in-1 specialty plunging bit. It cuts flat, smooth bottom surfaces, vertical walls, and a transition radius between them, all in one pass. It can be used in handheld, table-mounted and CNC routers.

Fusion Logo

Vectric and Fusion 360 compatible tool files for 45982 available for download, click here.

45982 DXF

File Size : 138.68 KB
Create account or Login to download

45982 PDF

File Size : 87.77 KB
Create account or Login to download

Carbide Tipped Bowl & Tray Speed and Feed Chart

Download PDF

Product Questions

I am looking for the suggested feed and speed for 45982. Also, is there a location or pdf for all of your bits suggested speeds. I am new to cnc and will be buying exclusively your bits.
Question by: Stephen Ertel on Oct 1, 2020, 2:56 PM
A starting point for this tool in hardwood would be 17,000 RPM’s at a feed rate of 140” per minute with a chip load of 0.0044” per tooth. Watch your feed and speed rate and increase or decrease in 10% increments up or down to achieve your desired cut.
Answer by: Amana Admin on Oct 9, 2020, 7:38 PM
can I get access to speeds and feeds for bits I bought
Amana Tool AMS-264 Tyson's 4-Pc CNC Catch All Tray Set
Question by: Natalie Mendoza on Nov 19, 2020, 5:52 PM
If you are cutting hardwood, we would recommend a starting speed rate at 17,000 RPM and a feed rate of 140 inches per minute at .250” depth per pass with a chip load of 0.005” per tooth. Please adjust your speed and or feed rates accordingly in 10% increments to achieve your desired finish.
Answer by: Amana Admin on Dec 9, 2020, 9:40 PM

Question on 45982 Carbide Tipped Bowl & Tray 1/4 Radius x 3/4 Dia x 5/8 x 1/4 Inch Shank


Create Account or Login to ask a question
