Solid Carbide Compression Spiral 3 Flute CNC Router Bits

46012 CNC Solid Carbide Compression Spiral 3 Flute x 1/2 Dia x 1-1/4 x 1/2 Inch Shank

#46012

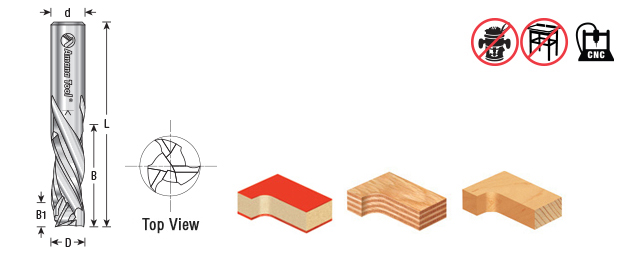

Specification
(D) Diameter 1/2
(B) Cutting Height 1-1/4
B1 9mm
(d) Shank 1/2
Overall Length (L) 3
Type Solid Carbide
Flutes 3

Special unique carbide for longer lifetime in abrasive material. Designed for CNC applications requiring high feed rates and a clean finish. Particularly suitable for double-sided melamine or laminated material. 3 flute design provides an extra-smooth finish.

Excellent for cutting:

  • Laminate
  • Laminated Plywood
  • Melamine
  • Melamine Particle Board
  • MDF/HDF
  • Oriented Strand Board (OSB)*
  • Particle Board
  • Softwood/Hardwood
  • Veneered Plywood

*Oriented Strand Board is an engineered wood particle board.

Maximum RPM: 28,000

Fusion Logo

Vectric and Fusion 360 compatible tool files for 46012 available for download, click here.

Solid Carbide Compression Spiral Speed and Feed Chart

Download PDF
