Solid Carbide Mortise Compression Spiral CNC Router Bits
46020-DLC CNC Solid Carbide Mortise Compression Spiral Diamond-Like Carbon (DLC) Coated 3 Flute 3/8 Dia x 1 Inch x 3/8 Shank
#46020-DLC

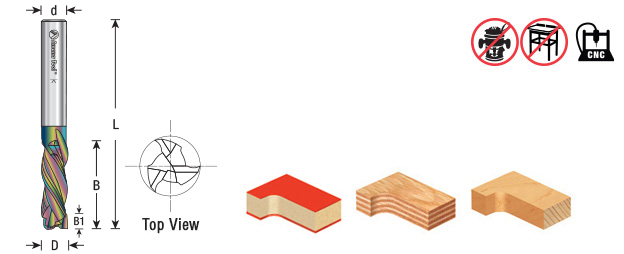

| (D) Diameter | 3/8 |
|---|---|
| (B) Cutting Height | 1 |
| B1 | 3/16 |
| (d) Shank | 3/8 |
| Overall Length (L) | 3 |
| Flutes | 3 |
Diamond-Like Carbon (DLC) coated items have a nanocomposite coating that has unique properties of natural diamond: low friction, high hardness, and high corrosion resistance.
These tools have a much shorter up-cut section than the standard compression tools. They are ideal for mortising, grooving and dado. The 3 flute design provides an extra-smooth finish.
Excellent for cutting:
- Hardwood Plank
- Laminates
- Melamine
- Melamine Particle Board
- MDF/HDF
- Oriented Strand Board (OSB)*
- Plastic Materials
- Veneered Plywood
- Sandwich Panel
- Softwood/Hardwood
*Oriented Strand Board is an engineered wood particle board.
Maximum RPM: 28,000.
