Solid Carbide Compression Spiral Single Flute CNC Router Bits

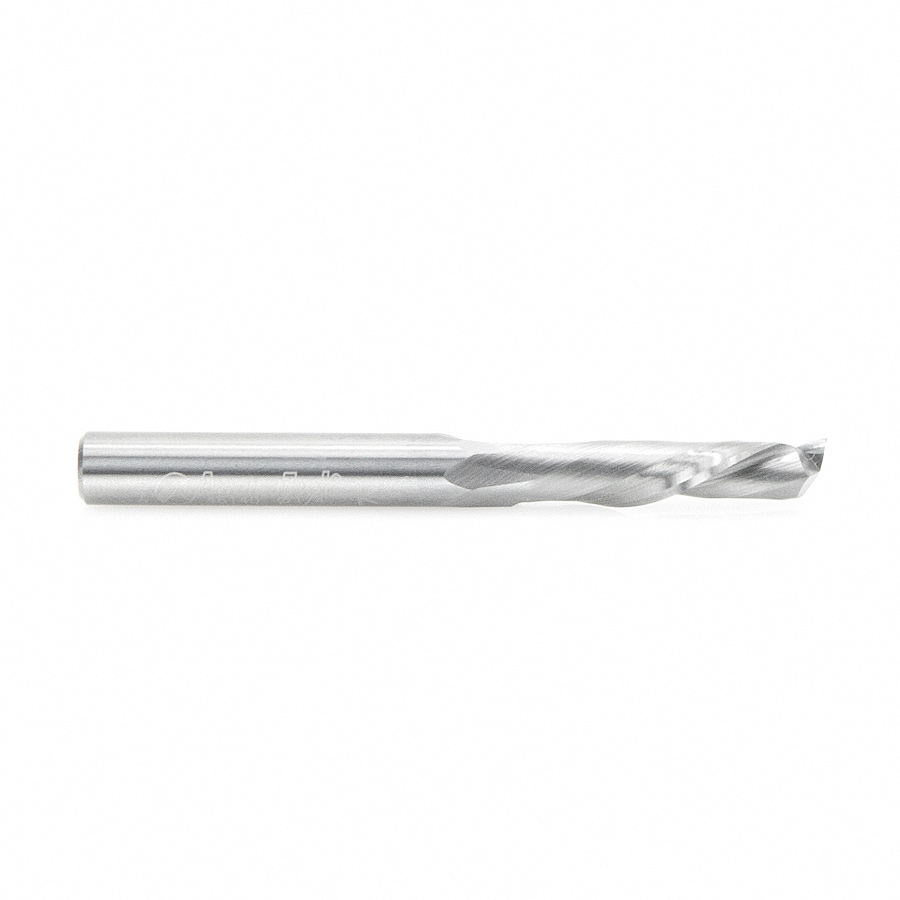

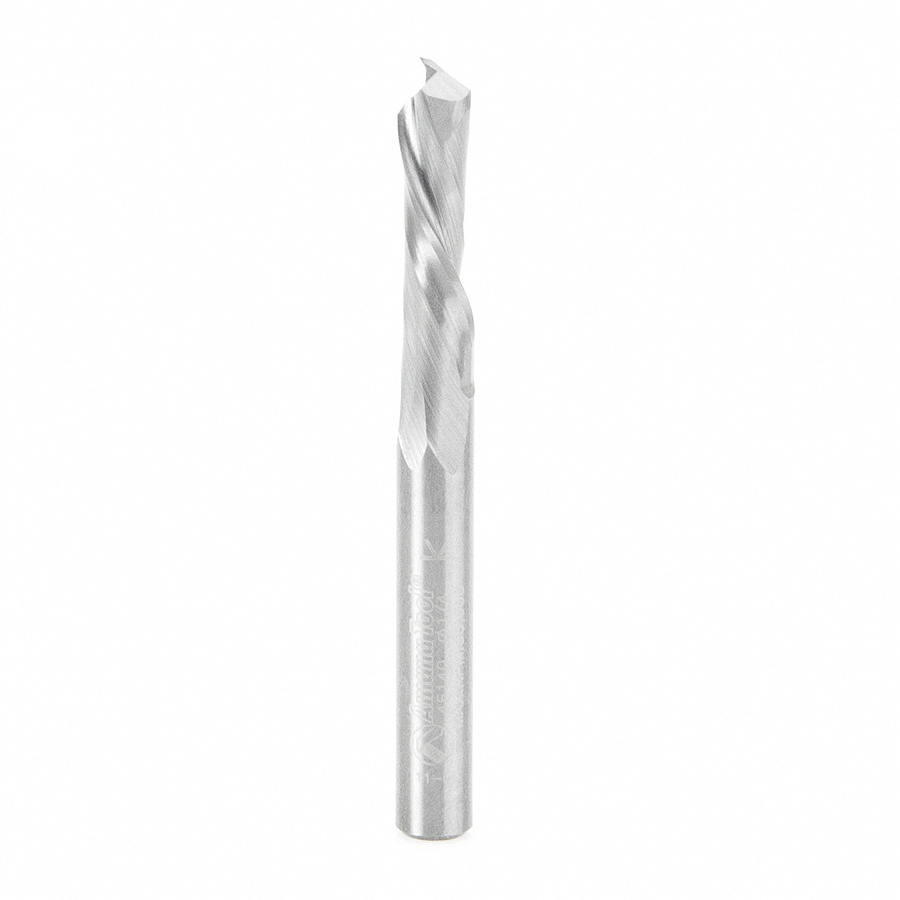

46140 CNC Solid Carbide Compression Spiral Single Flute 1/4 Dia x 7/8 x 1/4 Inch Shank
#46140

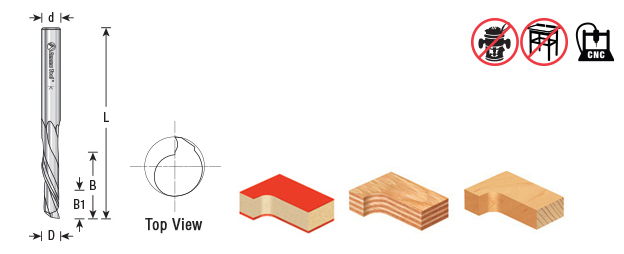

| (D) Diameter | 1/4 |
|---|---|
| (B) Cutting Height | 7/8 |
| B1 | 3/8 |
| (d) Shank | 1/4 |
| Overall Length (L) | 2-1/2 |
| Type | Solid Carbide |
| Flutes | 1 |
Special unique carbide for longer lifetime in abrasive material. Designed for CNC applications requiring high feed rates and a clean finish. Particularly suitable for double-sided melamine or laminated material.
- Laminate
- Laminated Plywood
- Melamine
- Melamine Particle Board
- MDF/HDF
- Oriented Strand Board (OSB)*
- Particle Board
- Softwood/Hardwood
- Veneered Plywood
*Oriented Strand Board is an engineered wood particle board.
Recommended RPM 20,000-21,000.
Vectric and Fusion 360 compatible tool files for 46140 available for download, click here.
Solid Carbide Compression Spiral Speed and Feed Chart
