Solid Carbide Compression Spiral CNC Router Bits

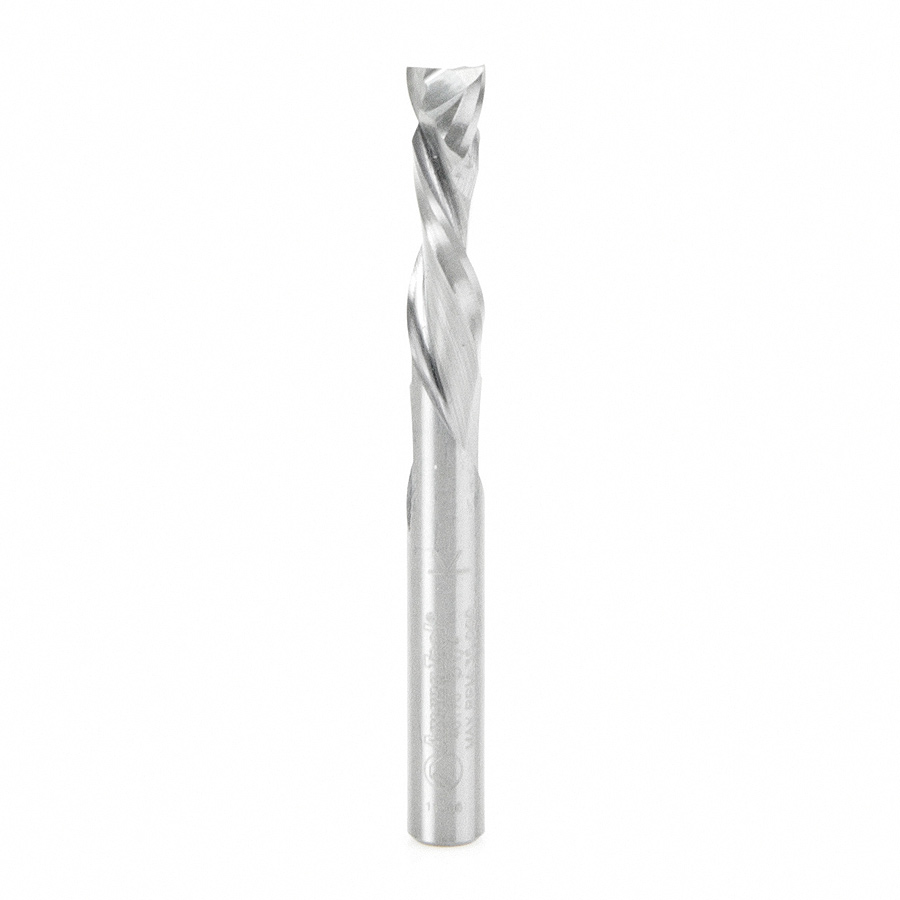

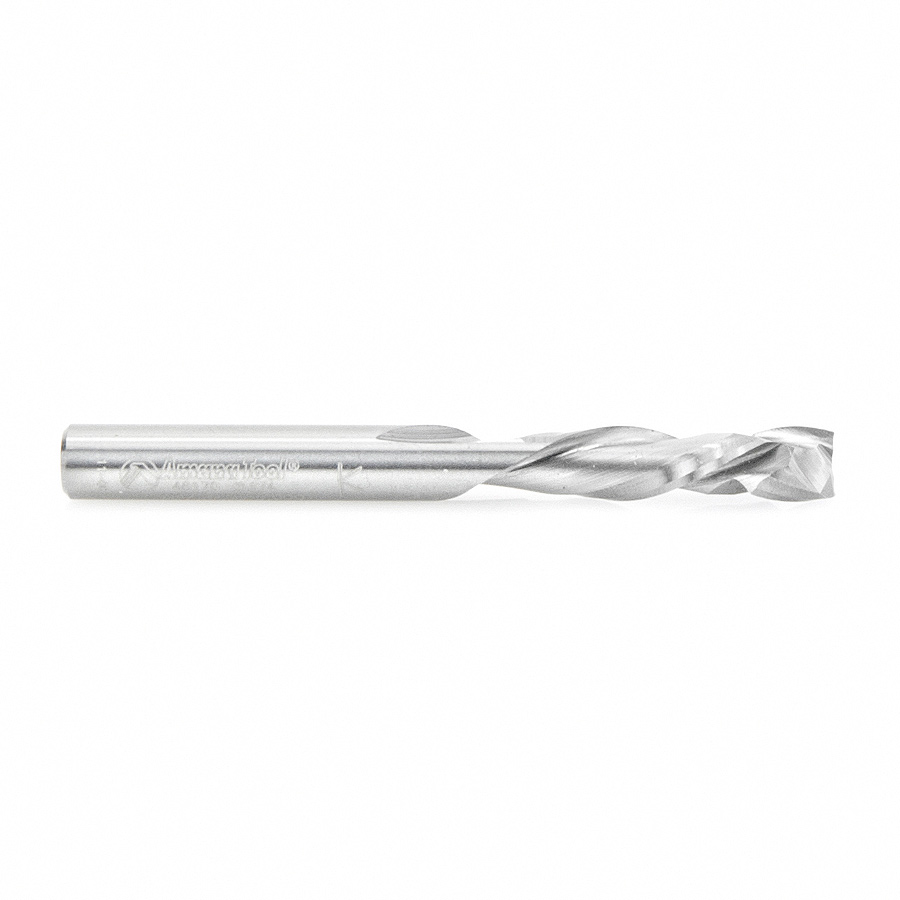

46170 CNC Solid Carbide Compression Spiral 1/4 Dia x 7/8 x 1/4 Inch Shank

#46170

Specification
(D) Diameter 1/4
(B) Cutting Height 7/8
B1 7mm
(d) Shank 1/4
Overall Length (L) 2-1/2
Type Solid Carbide
Flutes 2

Special unique carbide for longer lifetime in abrasive material. Designed for CNC applications requiring high feed rates and a clean finish. Particularly suitable for double-sided melamine or laminated material.

Excellent for cutting:

  • Laminate
  • Laminated Plywood
  • Melamine
  • Melamine Particle Board
  • MDF/HDF
  • Oriented Strand Board (OSB)*
  • Particle Board
  • Softwood/Hardwood
  • Veneered Plywood

*Oriented Strand Board is an engineered wood particle board.

Fusion Logo

Vectric and Fusion 360 compatible tool files for 46170 available for download, click here.

46170 DXF

File Size : 2.16 MB
Create account or Login to download

46170 PDF

File Size : 49.44 KB
Create account or Login to download

Solid Carbide Compression Spiral Speed and Feed Chart

Download PDF
