46340 Solid Carbide Spiral Plunge for Solid Wood 1/8 Dia x 1/2 x 1/8 Shank x 2 Inch Long Down-Cut

Solid Carbide Spiral Plunge Down-Cut Router Bits for Solid Wood

46340 Solid Carbide Spiral Plunge for Solid Wood 1/8 Dia x 1/2 x 1/8 Shank x 2 Inch Long Down-Cut

#46340

Specification222
Direction	Down-Cut
(D) Diameter	1/8
(B) Cutting Height	1/2
(d) Shank	1/8
Overall Length (L)	2
Flutes	2

View 1:1 Profile

Skip to the end of the images gallery

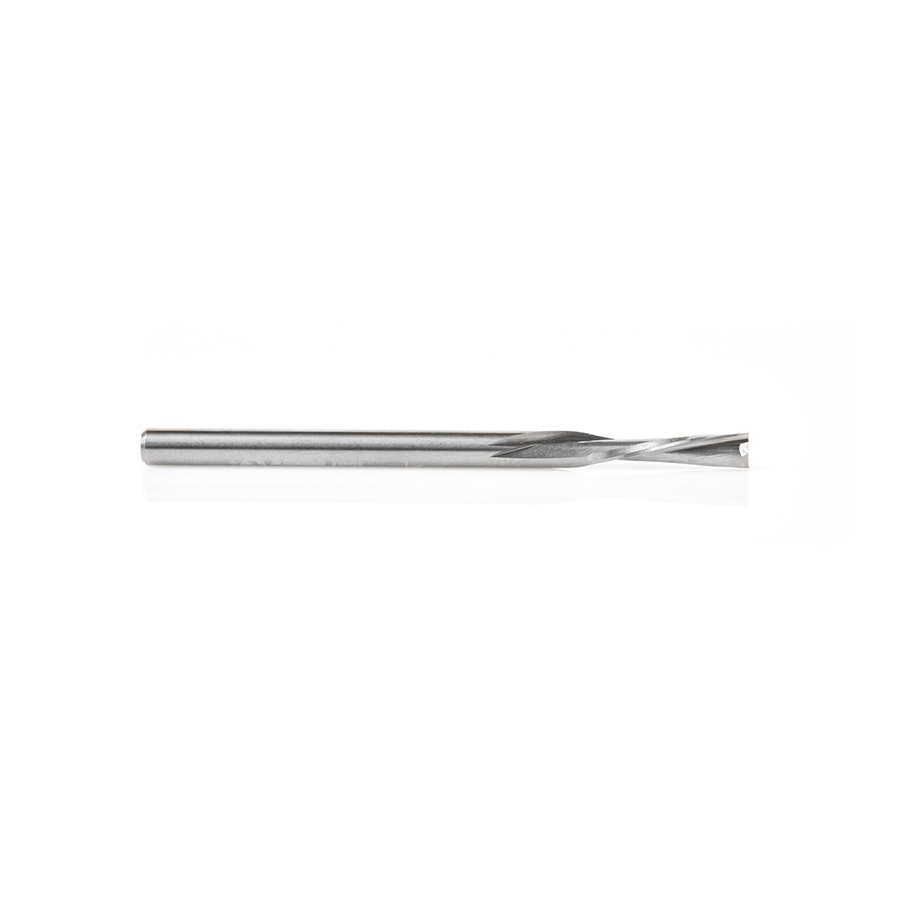

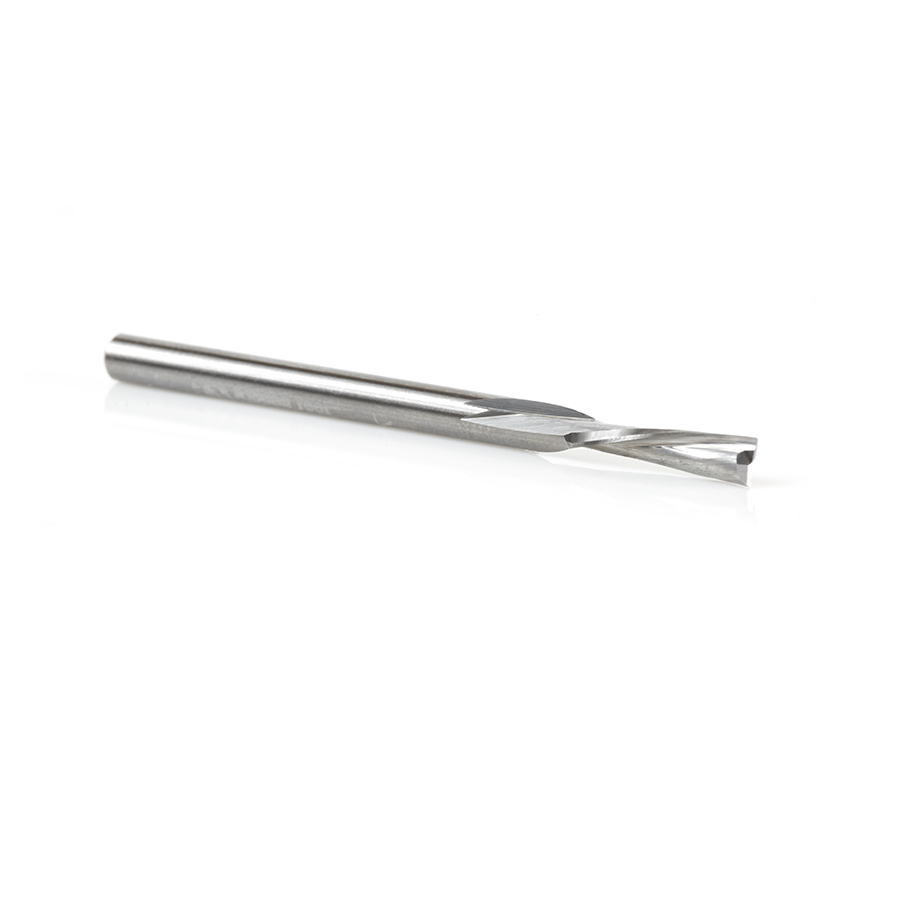

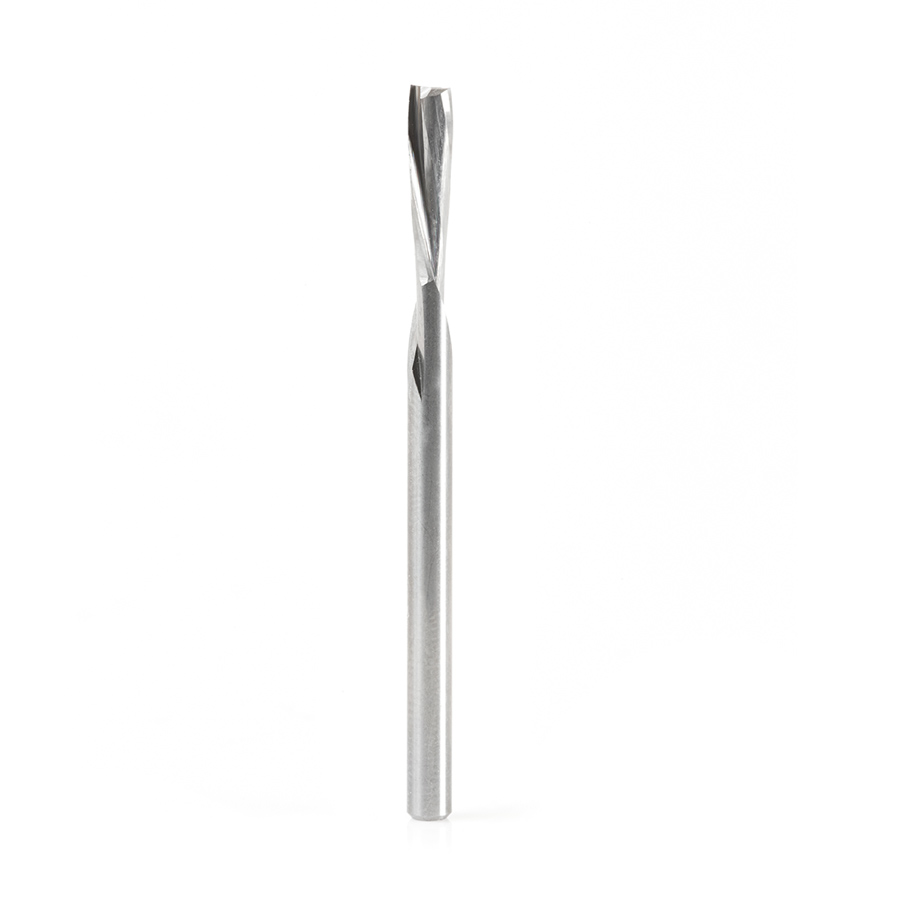

46340 Solid Carbide Spiral Plunge for Solid Wood 1/8 Dia x 1/2 x 1/8 Shank x 2 Inch Long Down-Cut

Skip to the beginning of the images gallery

Item Description

Specially designed for speed and finish when working with solid hardwood. The combination of acute spiral flute shear angles with face ground helix yield high feed rates, fast plunge action, quick direction changes, deep penetration and mirror finish. Recommended RPM 20,000-21,000.

Vectric compatible tool file for 46340 available for download, click here.

Speed and Feed Rate

Solid Carbide Spiral Plunge for Solid Wood Speed and Feed Chart

Download PDF
