Solid Carbide Mortise Compression Spiral CNC Router Bits

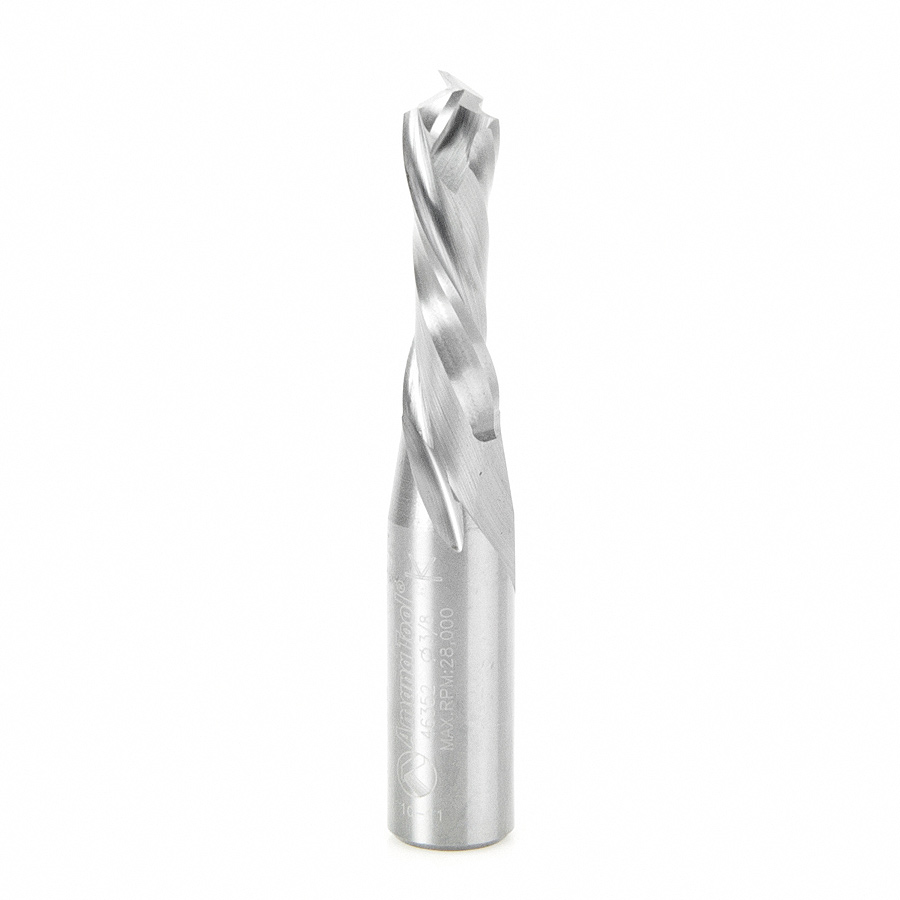

46352 CNC Solid Carbide Mortise Compression Spiral 3/8 Dia x 1-1/4 x 1/2 Inch Shank

#46352

Specification
(D) Diameter3/8
(B) Cutting Height1-1/4
B13/16
(d) Shank1/2
Overall Length (L)3
Flutes2

These tools have a much shorter up-cut section than the standard compression tools. They are ideal for mortising, grooving and dado.

Excellent for cutting:

  • MDF/HDF
  • Laminate
  • Laminated Plywood
  • Melamine
  • Particle Board
  • Softwood/Hardwood
  • Veneered Plywood

Recommended RPM 20,000-21,000.

Vectric compatible tool file for 46352 available for download, click here.

Solid Carbide Mortise Compression Spirals Speed and Feed Chart

Download PDF
