Solid Carbide Spiral Plunge Down-Cut Router Bits for Solid Wood

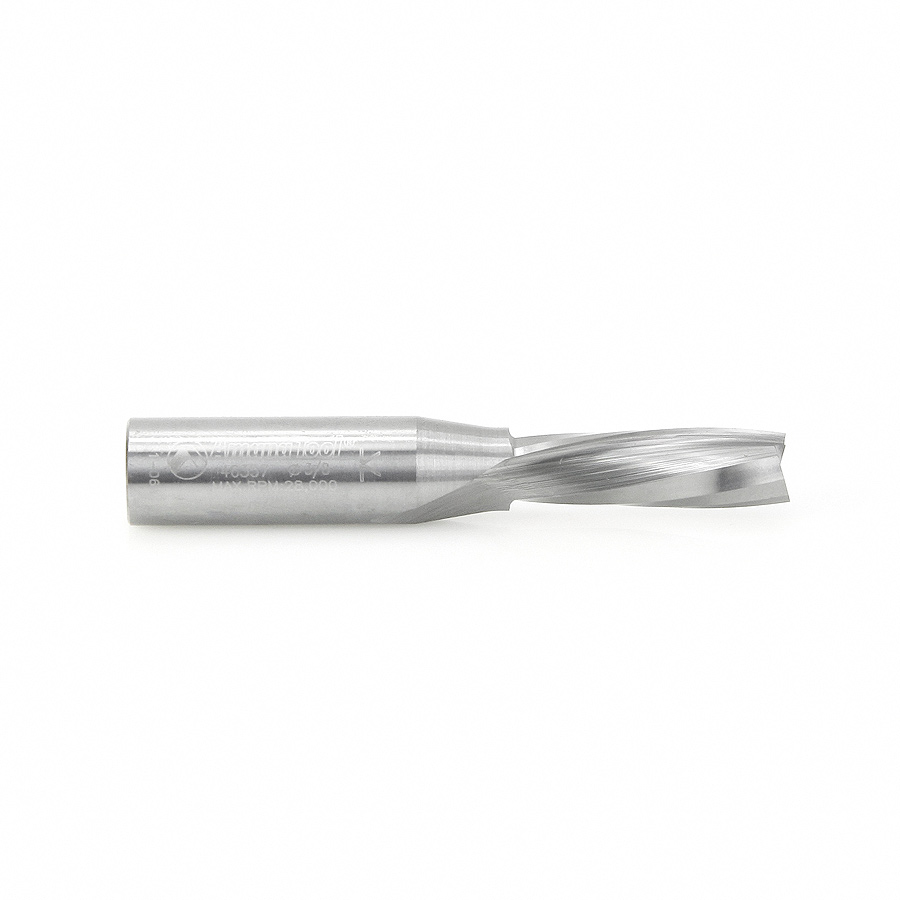

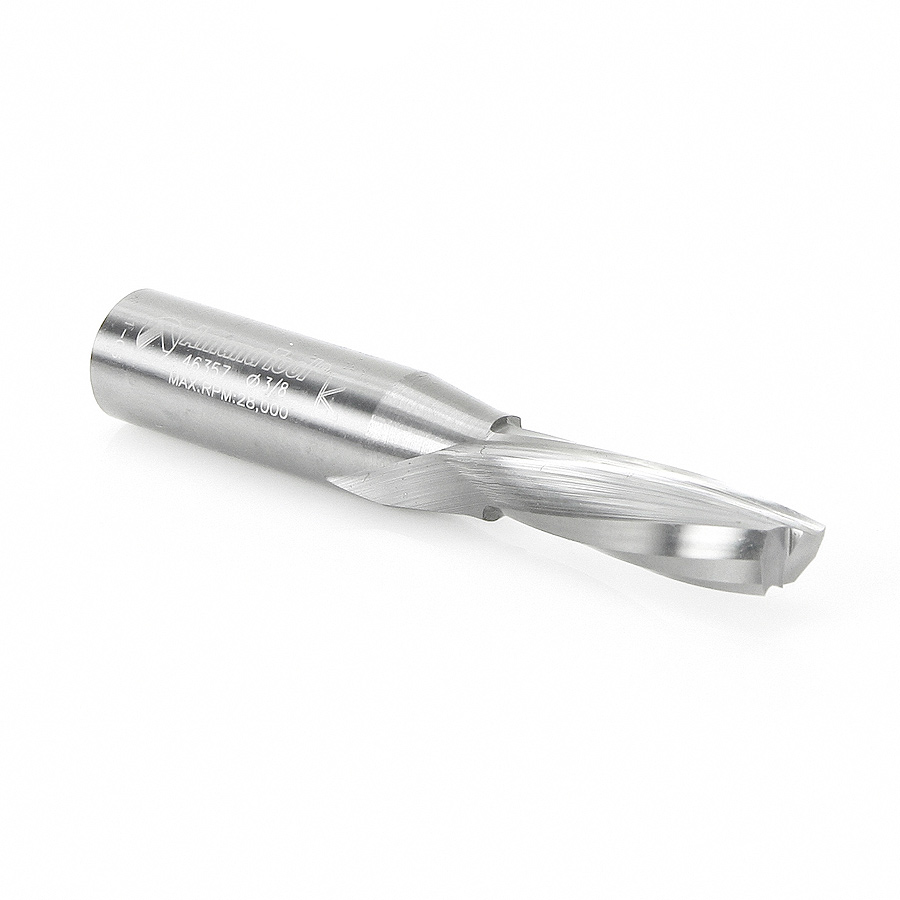

46357 Solid Carbide Spiral Plunge for Solid Wood 3/8 Dia x 1-1/4 x 1/2 Inch Shank Down-Cut

#46357

Specification
Direction Down-Cut
(D) Diameter 3/8
(B) Cutting Height 1-1/4
(d) Shank 1/2
Overall Length (L) 3
Flutes 2

Specially designed for speed and finish when working with solid hardwood. The combination of acute spiral flute shear angles with face ground helix yield high feed rates, fast plunge action, quick direction changes, deep penetration and mirror finish. Recommended RPM 20,000-21,000.

Vectric compatible tool file for 46357 available for download, click here.

Solid Carbide Spiral Plunge for Solid Wood Speed and Feed Chart

Download PDF

46357 tool file to be used with all versions of Vectric software from version 8.0 and up. Works with Aspire, VCarve, Cut2D, Cut3D and PhotoVCarve.

This tool file is to be used as a starting point for your CNC projects and the parameters should be adjusted based on your project and material.

Installation:

1. Download to a safe location such as your desktop.

2. In the software, open the Tool Database and use the import option to load the file from the safe location.

Vectric File Warning

The Vectric .tool file should only be used in conjunction with the Amana Tool item number specified. Using this file with other brands is dangerous to the operator and CNC machine.

Download TOOL
