Solid Carbide Mortise Compression Spiral CNC Router Bits

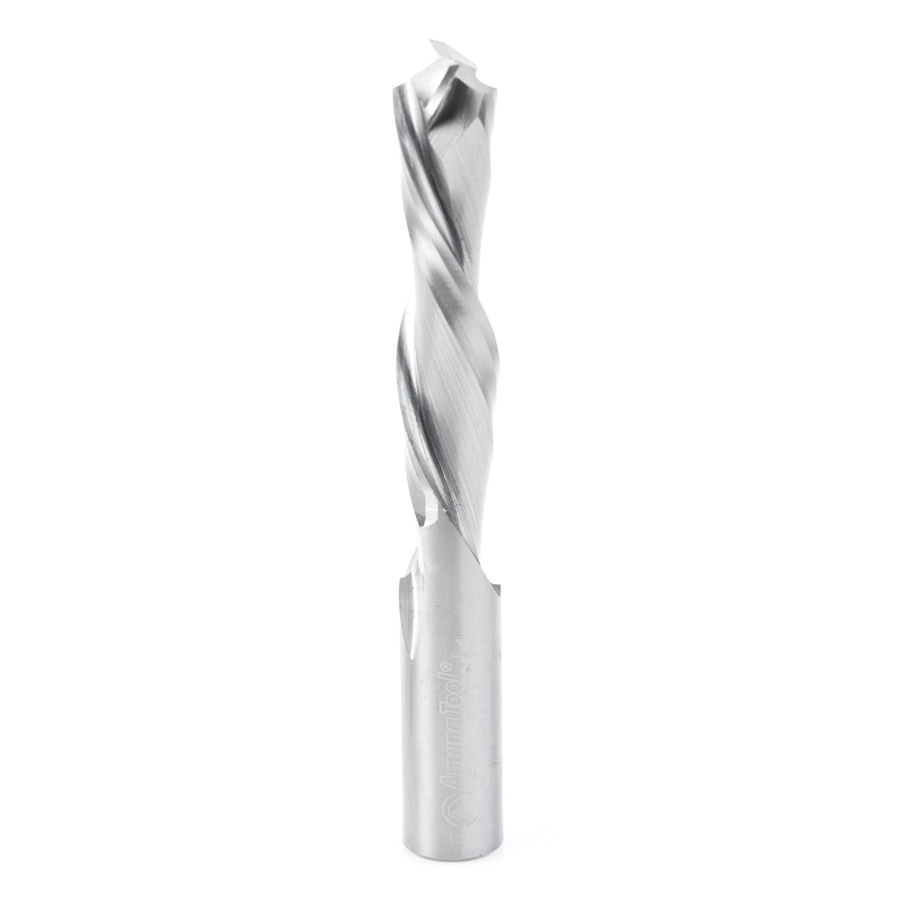

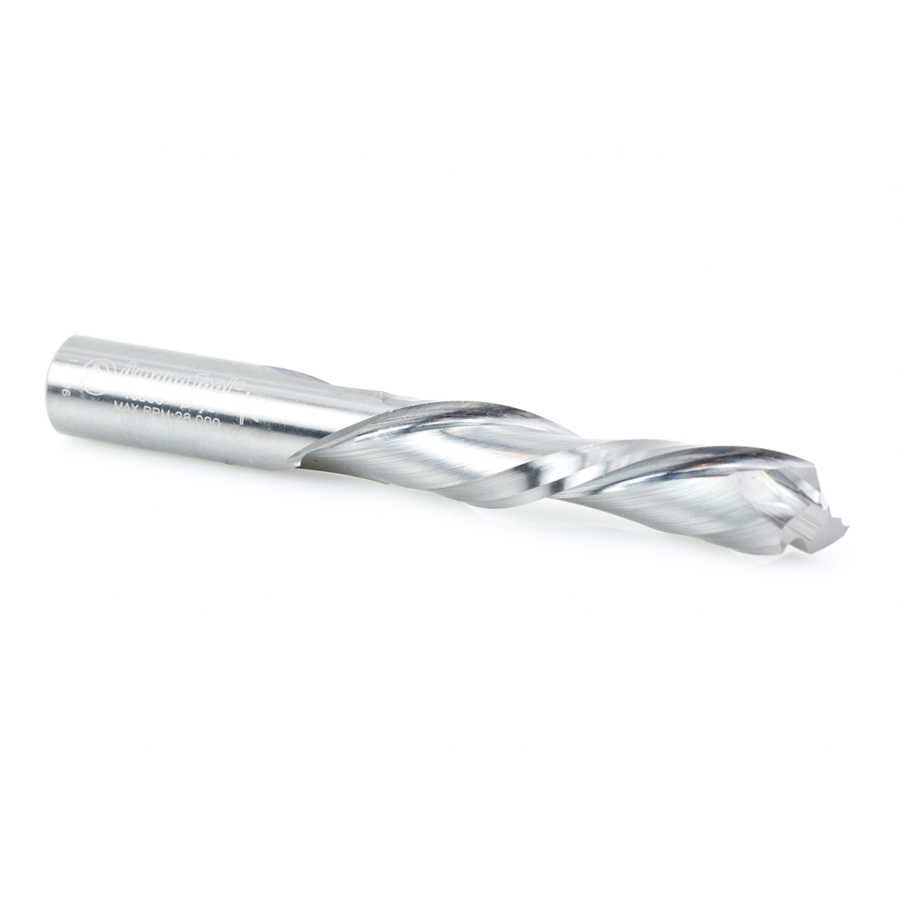

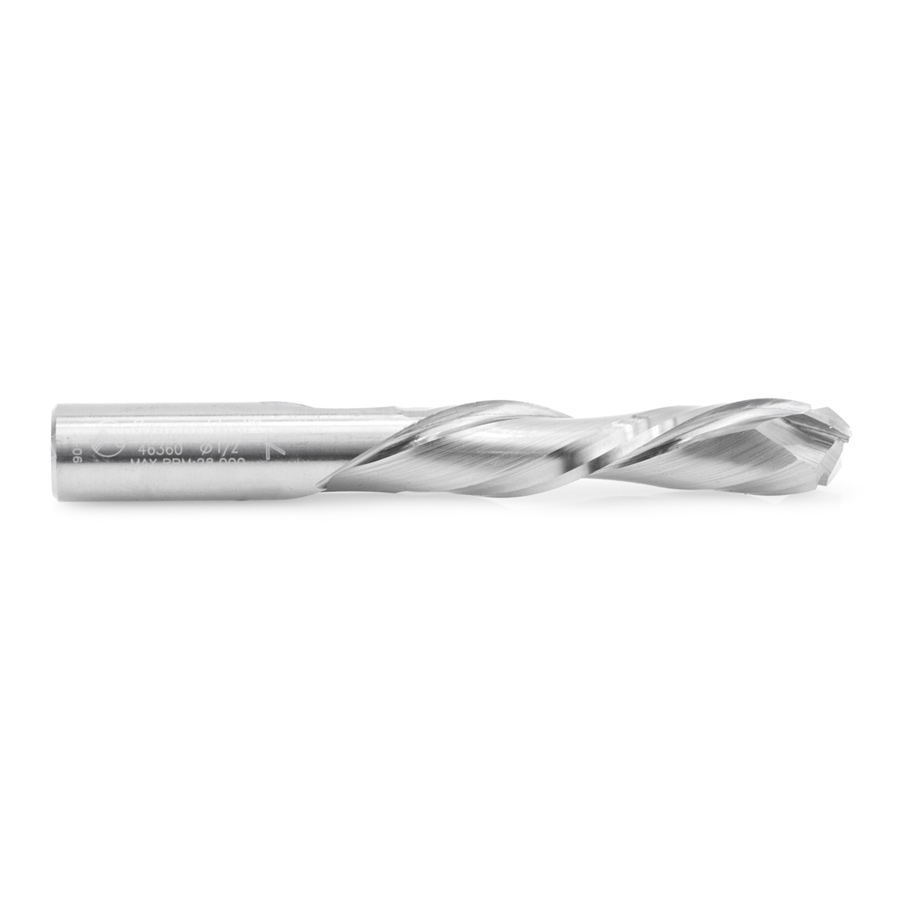

46360 CNC Solid Carbide Mortise Compression Spiral 1/2 Dia x 2-1/8 x 1/2 Inch Shank
#46360
| (D) Diameter | 1/2 |
|---|---|
| (B) Cutting Height | 2-1/8 |
| B1 | 1/4 |
| (d) Shank | 1/2 |
| Overall Length (L) | 4 |
| Flutes | 2 |
These tools have a much shorter up-cut section than the standard compression tools. They are ideal for mortising, grooving and dado.
Excellent for cutting:
- MDF/HDF
- Laminate
- Laminated Plywood
- Melamine
- Particle Board
- Softwood/Hardwood
- Veneered Plywood
Recommended RPM 20,000-21,000.
Vectric compatible tool file for 46360 available for download, click here.
Solid Carbide Mortise Compression Spirals Speed and Feed Chart
Download PDF
