Solid Carbide Spiral Plunge Down-Cut Router Bits for Solid Wood

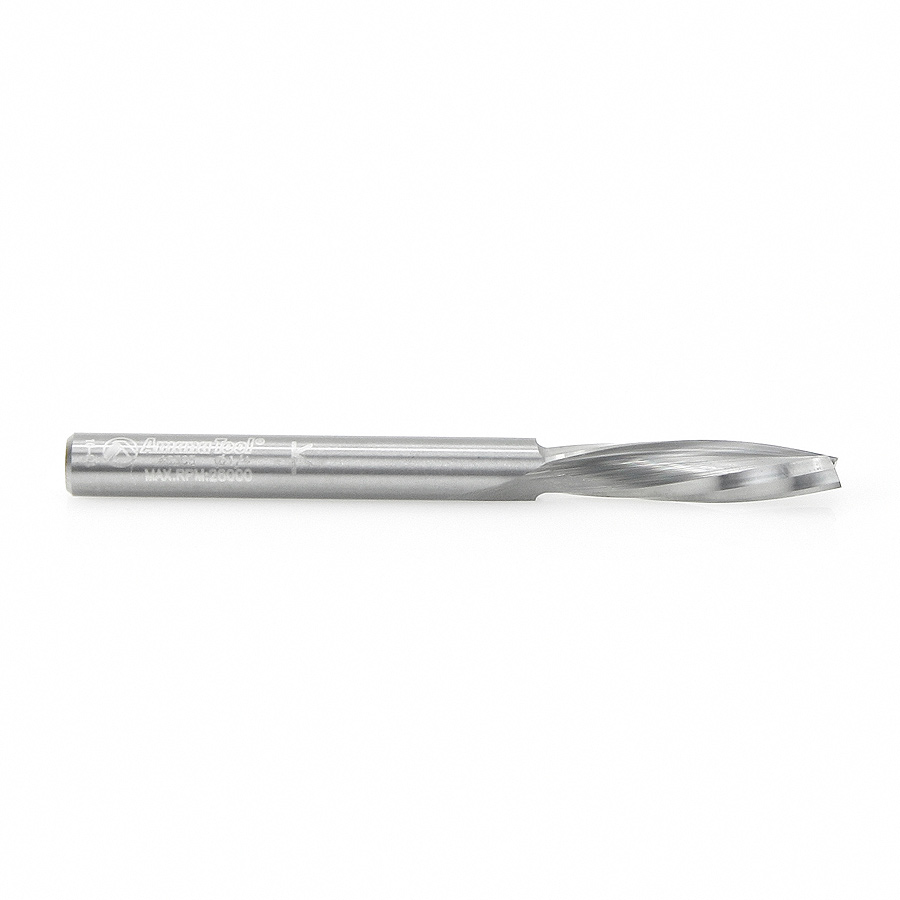

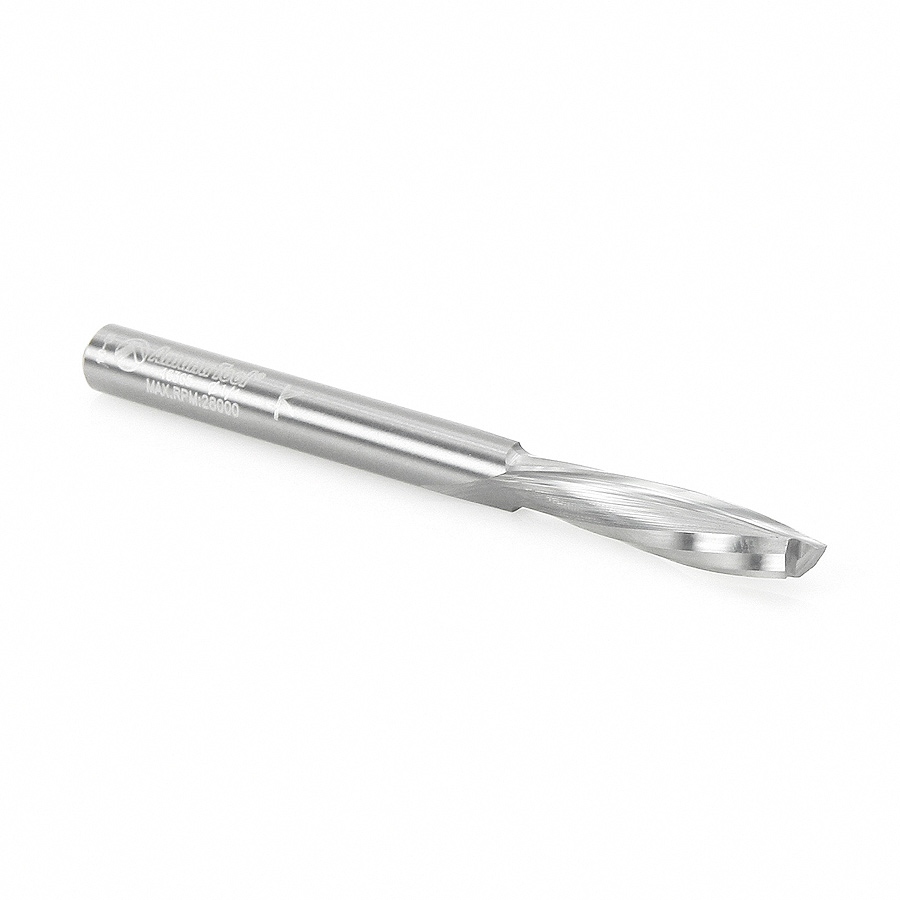

46365 Solid Carbide Spiral Plunge for Solid Wood 1/4 Dia x 1-1/8 x 1/4 Inch Shank Down-Cut

#46365

Specification
Direction Down-Cut
(D) Diameter 1/4
(B) Cutting Height 1-1/8
(d) Shank 1/4
Overall Length (L) 3
Flutes 2

Specially designed for speed and finish when working with solid hardwood. The combination of acute spiral flute shear angles with face ground helix yield high feed rates, fast plunge action, quick direction changes, deep penetration and mirror finish. Recommended RPM 20,000-21,000.

Vectric compatible tool file for 46365 available for download, click here.

Solid Carbide Spiral Plunge for Solid Wood Speed and Feed Chart

Download PDF
